TP-Link Omada EAP245 User Manual

51

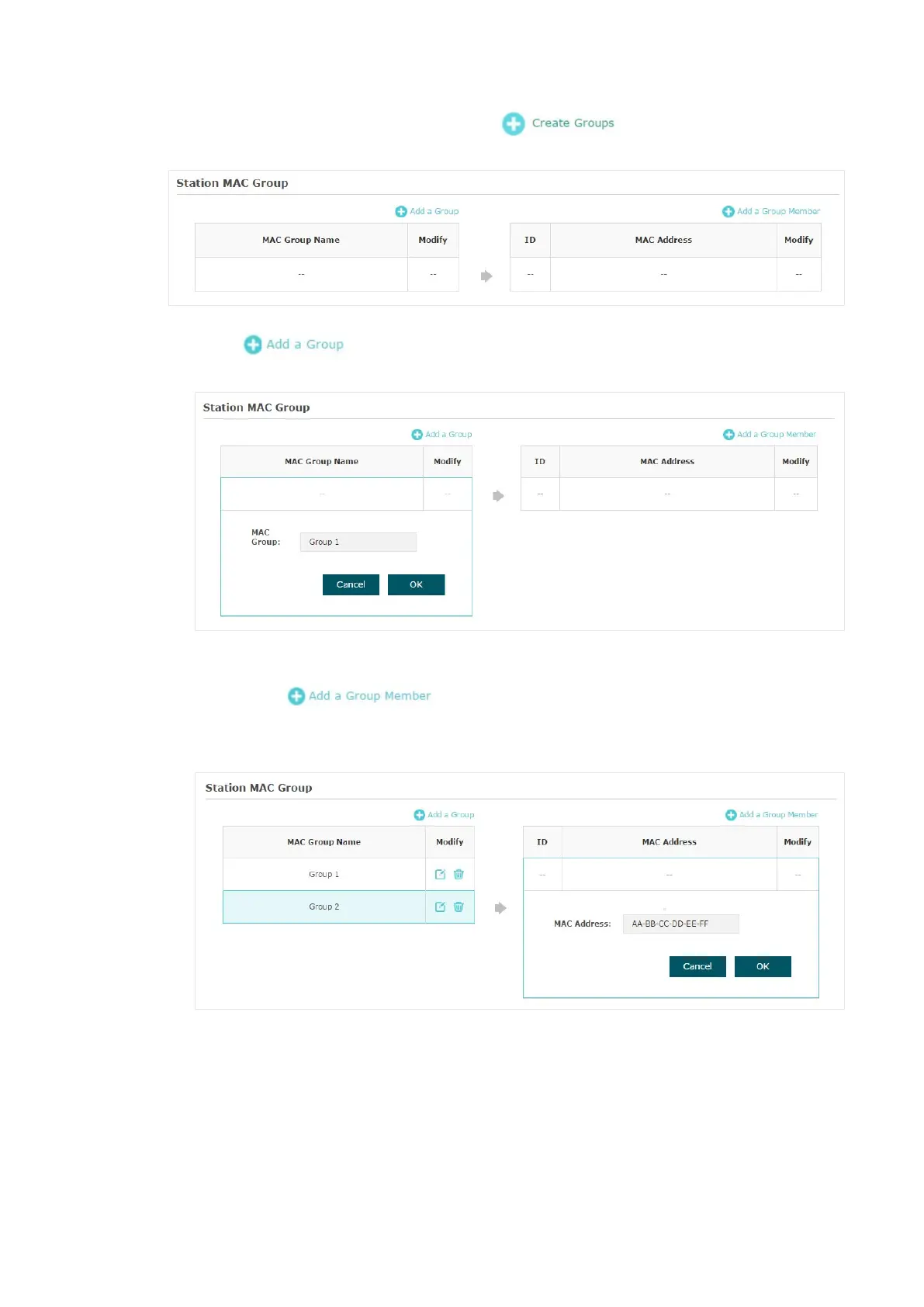

2. In the Station MAC Group section, click and the following page will
appear.
1 ) Click and specify a name for the MAC group to be created. Click OK.
You can create up to eight MAC groups.
2 ) Select a MAC group in the group list (the color of the selected one will change to
blue). Click
to add group members to the MAC group. Specify
the MAC address of the host and click OK. In the same way, you can add more MAC
addresses to the selected MAC group.
3. In the MAC Filtering Association section, configure the filtering rule. For each SSID, you
can select a MAC group in the MAC Group Name column and select the filtering rule
(Allow/Deny) in the Action column. Click Save.

TP-Link Omada EAP245 Specifications

General

5 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Transmitting power	27 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Virtual LAN features	SSID-based VLAN assignment
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Transmitting power (FCC)	24 dBm
Maximum data transfer rate	1750 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Placement	Ceiling, Wall
Product color	White
LED indicators	Power
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antenna type	Internal
Antenna features	Integrated antenna
Antenna direction type	Omni-directional
Antenna gain level (max)	4 dBi
Output current	1.5 A
Output voltage	12 V
Power consumption (typical)	12.7 W
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Cables included	AC
Number of products included	1 pc(s)
Package depth	340 mm
Package width	228 mm
Package height	65 mm
Package weight	1180 g
Harmonized System (HS) code	85176990
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Width	180 mm
Height	47.5 mm
