TP-Link Omada EAP245 User Manual

54

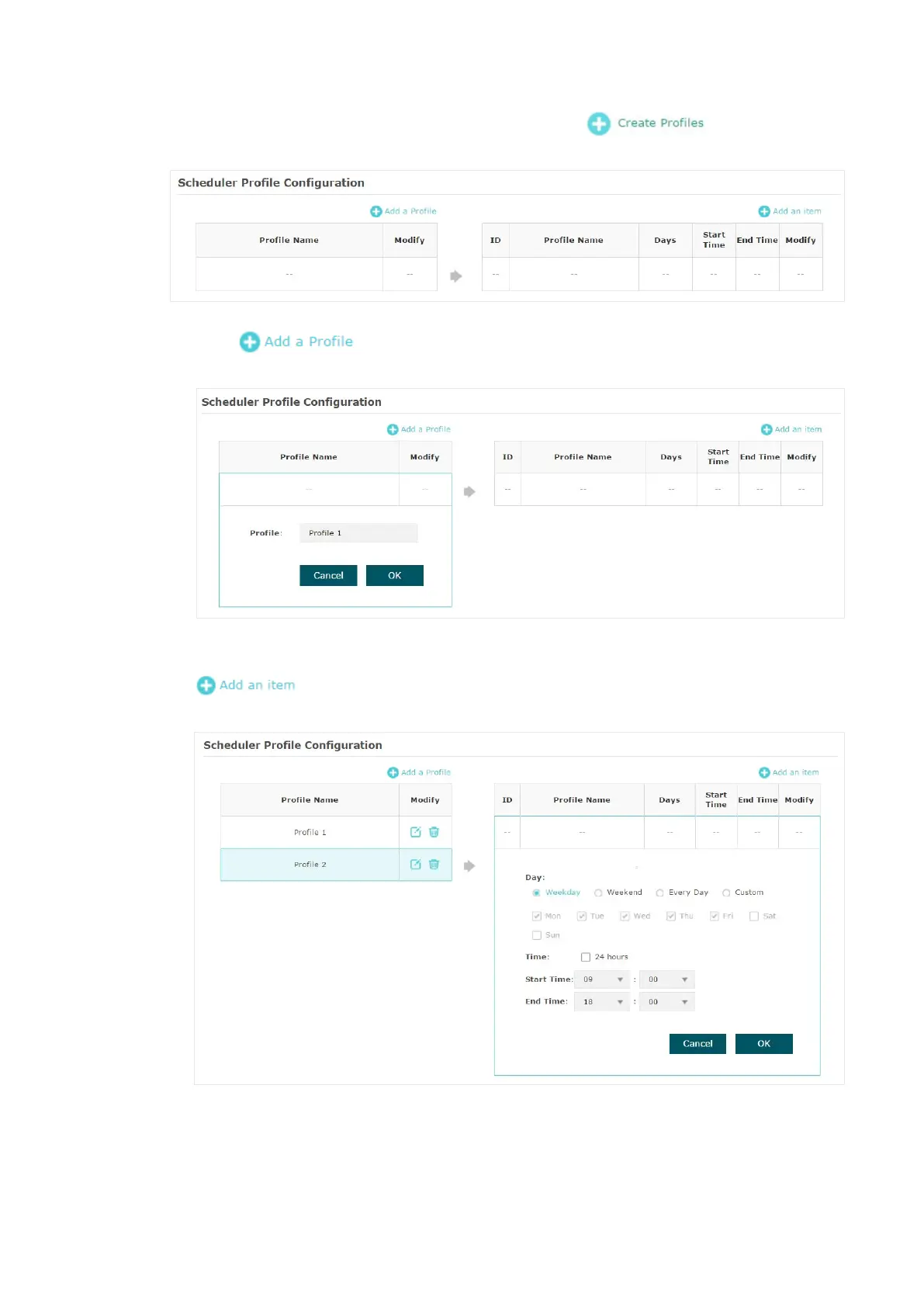

2. In the Scheduler Profile Configuration section, click and the following
page will appear.
1 ) Click and specify a name for the prole to be created. Click OK. You
can create up to eight proles.
2 ) Select a profile in the list (the color of the selected one will change to blue). Click
to add time range items to the prole. Specify the Day, Start Time and
End Time of the time range, and click OK.
Tips:
You can add up to eight time range items for one profile. If there are several time range items in one
profile, the time range of this profile is the sum of all of these time ranges.

TP-Link Omada EAP245 Specifications

General

5 GHz	Yes
MIMO type	Multi User MIMO
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Transmitting power	27 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Virtual LAN features	SSID-based VLAN assignment
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Transmitting power (CE)	20 - 23 dBm
Transmitting power (FCC)	24 dBm
Maximum data transfer rate	1750 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Placement	Ceiling, Wall
Product color	White
LED indicators	Power
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	16
Service Set Identifier (SSID) features	Multiple SSIDs
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antenna type	Internal
Antenna features	Integrated antenna
Antenna direction type	Omni-directional
Antenna gain level (max)	4 dBi
Output current	1.5 A
Output voltage	12 V
Power consumption (typical)	12.7 W
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Cables included	AC
Number of products included	1 pc(s)
Package depth	340 mm
Package width	228 mm
Package height	65 mm
Package weight	1180 g
Harmonized System (HS) code	85176990
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Width	180 mm
Height	47.5 mm
