TL-R480T Enterprise Broadband Router User Giude
your PC and the router has been established.

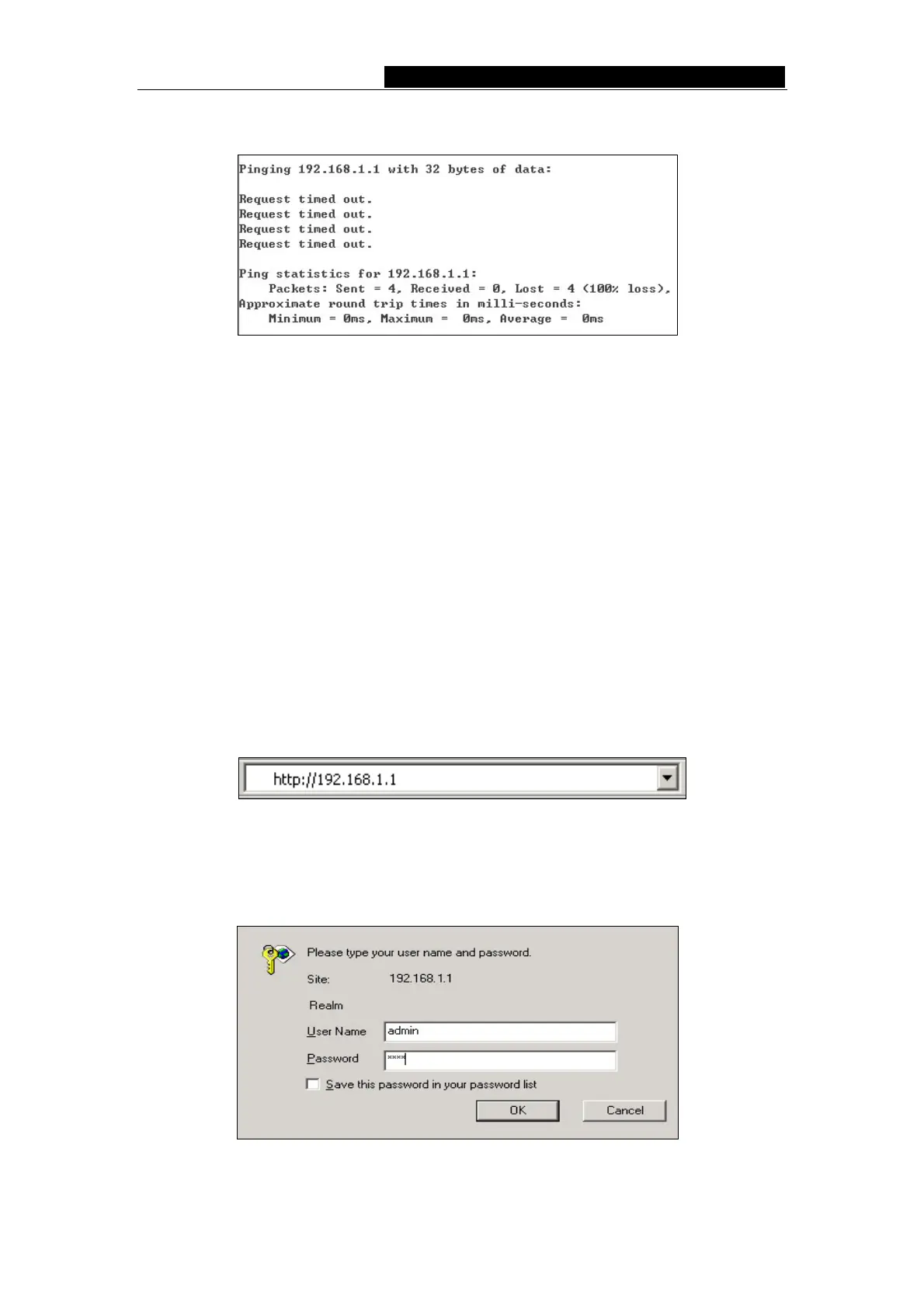

Figure 4-2 Failed result of Ping command
If the result displayed is similar to what shown in figure 4-2, it means that your PC has
not connected to the router. If so, refer to the following steps for a solution.
1. Is the connection between your PC and the router correct?
Note: The Link/Act LEDs of LAN port on the router and LEDs on your PC's adapter
should be lit.
2. Is the TCP/IP configuration for your PC correct?
Note: If the router's IP address is 192.168.1.1, your PC's IP address must be within
the range of 192.168.1.2 ~ 192.168.1.254, the gateway must be 192.168.1.1
4.2 Quick Installation Guide
With a Web-based (Internet Explorer or Netscape
®
Navigator) utility, the TL-R480T
Enterprise Broadband Router is easy to configure and manage. The Web-based utility
can be used on any Windows, Macintosh or UNIX OS with a web browser.
Connect to the router by typing http://192.168.1.1 in the address field of web browser.
Figure 4-3 Login to the router
After a moment, a login window will appear similar to that shown in Figure 4-4. Enter
admin for the User Name and Password, both in lower case letters. Then click the OK
button or press the Enter key.
Figure 4-4 Login Windows
- 9 -

TP-Link TL-R480T Specifications

General

Input frequency	50/60 Hz
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Dimensions (W x D x H) (imperial)	11.6 x 7.1 x 1.7 \
DHCP client	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Web-based management	-
RS-232 ports	1
Ethernet LAN (RJ-45) ports	5
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Internal memory	64 MB
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Dual-band	No

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
