TP-Link TL-R480T User Manual

TL-R480T Enterprise Broadband Router User Giude
2) If you click the Save button, the router will prompt you to reboot.
5.4.4 Bandwidth Control
You can control bandwidth of each LAN port on this page. This feature can be used for
distributing flexibly Internet resource.

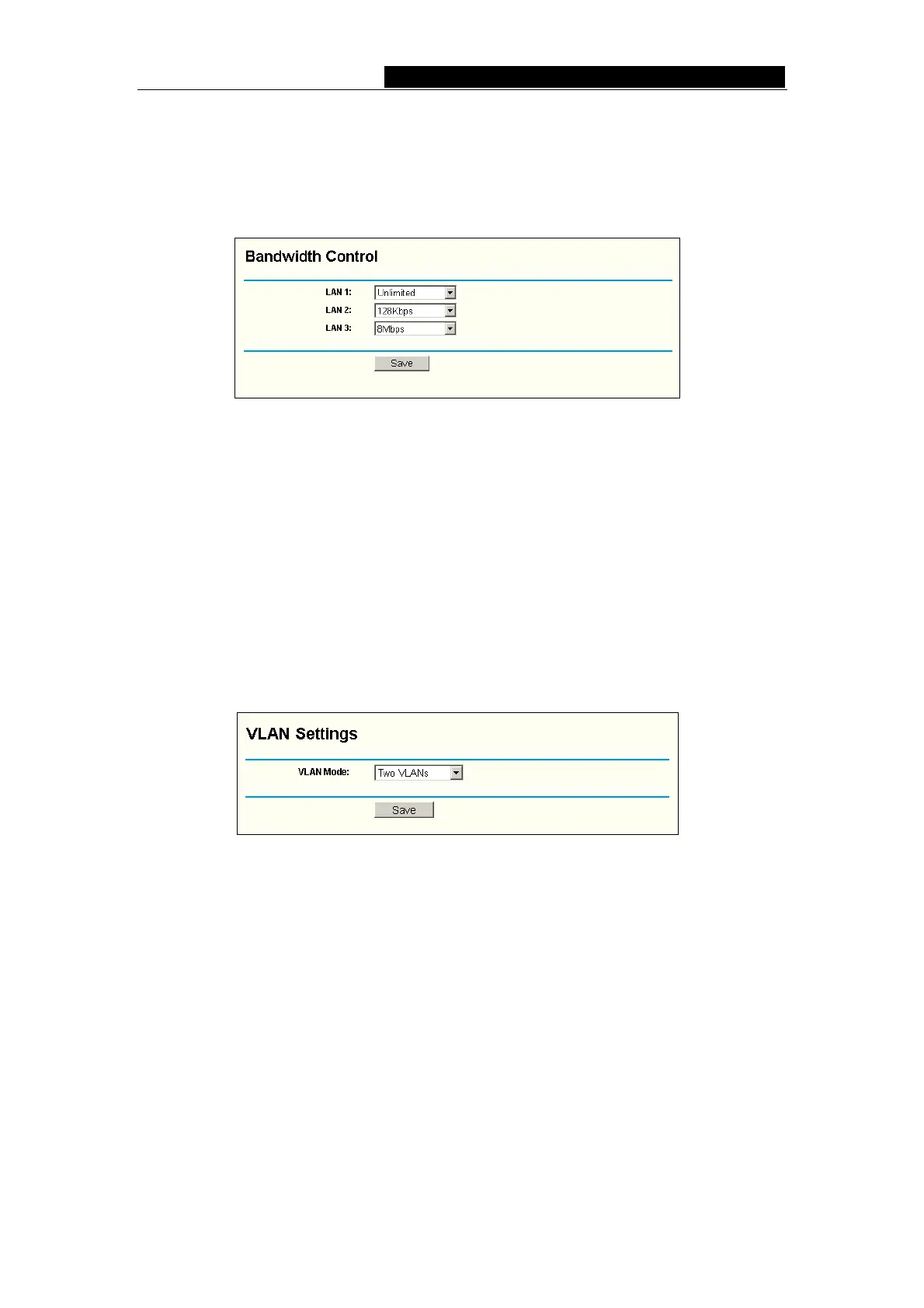

Figure 5-9 Bandwidth Control
 LAN - LAN port number. LAN1 point to LAN port 1, LAN2 point to LAN port 2, and
so on.
 Bandwidth - Select the bandwidth value from 128Kbps, 256Kbps, 512Kbps,
1Mbps, 2Mbps, 4Mbps and 8Mbps. The selected value is the maximum Internet
bandwidth for the LAN port. No-limit means no bandwidth limit.
5.4.5 VLAN
On this page, you can configure VLAN based on LAN port. There are three VLAN
modes in the VLAN Mode pull-down list: One VLAN, Two VLAN and Four VLAN, the
default is One VLAN.
Figure 5-10 VLAN Settings
 One VLAN - In this VLAN mode, all LAN ports are in one VLAN, all LAN ports can
communicate with each other.
 Two VLANs - In this VLAN mode, the LAN1 and LAN2 are in one VLAN, and the
LAN3 and LAN4 are in another VLAN. So LAN1 can communicate with LAN2 and
LAN3 can communicate with LAN4, but LAN1 or LAN2 cannot communicate with
LAN3 or LAN4.
 Four VLANs - In this VLAN mode, all ports are in different VLANs. So they cannot
communicate with each other.
5.4.6 Port Mirror
You can configure LAN port mirror feature on this page.
- 20 -

TP-Link TL-R480T Specifications

General

Input frequency	50/60 Hz
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Dimensions (W x D x H) (imperial)	11.6 x 7.1 x 1.7 \
DHCP client	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Web-based management	-
RS-232 ports	1
Ethernet LAN (RJ-45) ports	5
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Internal memory	64 MB
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Dual-band	No

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
