TP-Link TL-R480T User Manual

TL-R480T Enterprise Broadband Router User Giude
Appendix B: Configuring the PCs
In this section, we’ll introduce how to install and configure the TCP/IP correctly in
Windows 95/98. First make sure your Ethernet Adapter is working, refer to the adapter’s
manual if needed.
1. Install TCP/IP component
1) On the Windows taskbar, click the Start button, point to Settings, and then click
Control Panel.
2) Double-click the Network icon, click on the Configuration tab in the appearing
Network window.
3) Click on the Add button. Select Protocol, and then click Add.

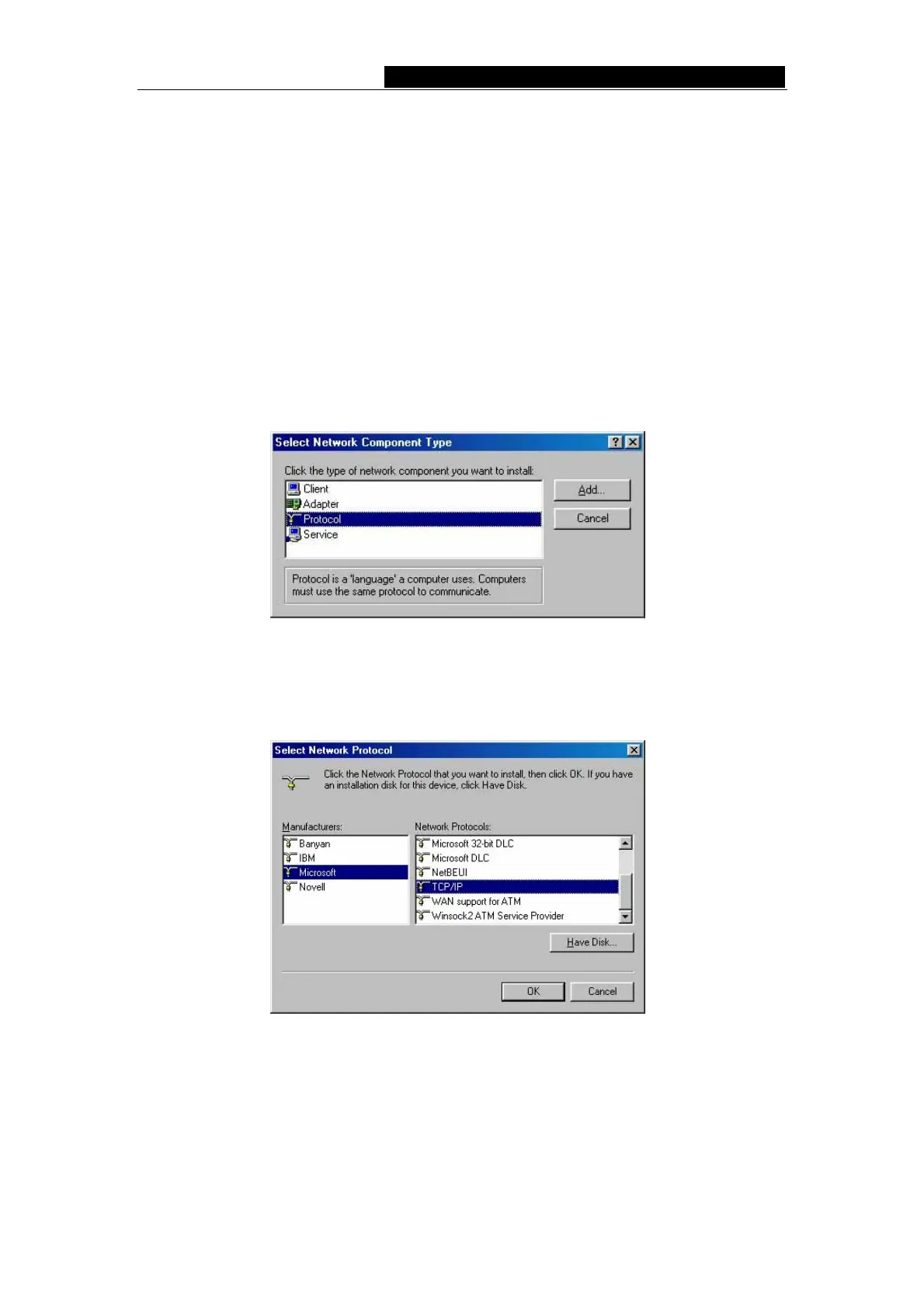

Figure B-1 Add Network Protocol
4) Under Manufacturers on Select Network Protocol page, highlight Microsoft.
Under Network Protocols, highlight TCP/IP. Click OK. TCP/IP protocol will
take effect after reboot.
Figure B-2 Select Network Protocol
2. Configure TCP/IP for your computer
1) On the Windows taskbar, click the Start button, point to Settings, and then click
Control Panel.
2) Double-click the Network icon, highlight the bound TCP/IP tab in the Network
window that appears. An example is shown in the following figure:
- 49 -

TP-Link TL-R480T Specifications

General

Input frequency	50/60 Hz
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Dimensions (W x D x H) (imperial)	11.6 x 7.1 x 1.7 \
DHCP client	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Web-based management	-
RS-232 ports	1
Ethernet LAN (RJ-45) ports	5
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Internal memory	64 MB
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Dual-band	No

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
