TL-R480T Enterprise Broadband Router User Giude
5.5.3 Address Reservation
When you specify a reserved IP address for a PC on the LAN, that PC will always
receive the same IP address each time it accesses the DHCP server. Reserved IP
addresses should be assigned to servers that require permanent IP settings. This page
is used for address reservation (shown in figure 5-15).

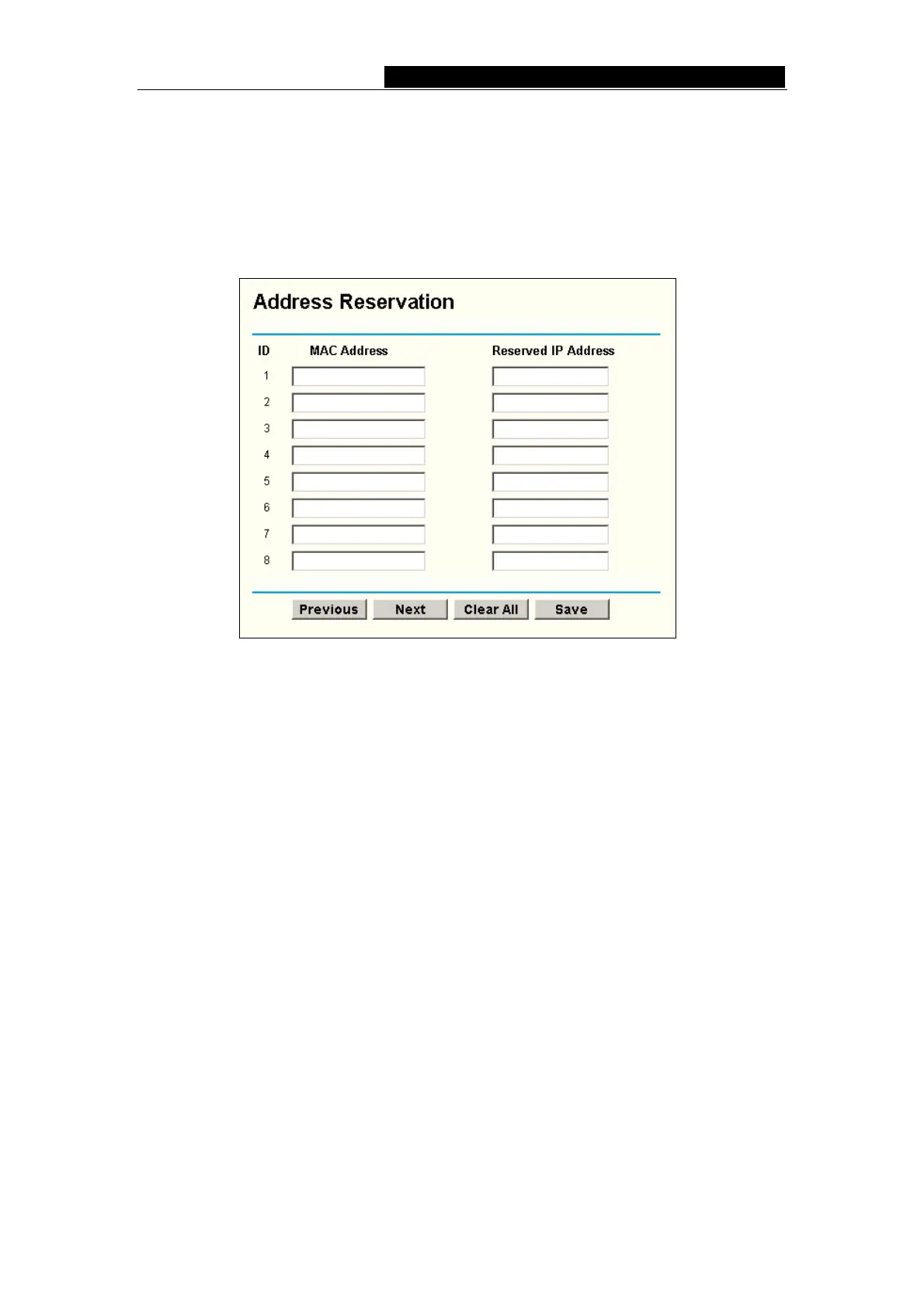

Figure 5-15 Address Reservation
MAC Address - The MAC address of the PC of which you want to reserve IP
address.
Assigned IP Address - The IP address of the router reserved.
To Reserve IP addresses:
1. Enter the MAC address (The format for the MAC address is XX-XX-XX-XX-XX-XX.)
and IP address in dotted-decimal notation of the computer you wish to add.
2. Click the Save button when finished.
To modify A Reserved IP address:
1. Select the reserved address entry as you desire, and modify it. If you wish to delete
the entry, make all of the entry fields blank.
2. Click the Save button.
To delete all Reserved IP addresses:
1. Click the Clear All button.
2. Click the Save button
Click the Next button to go to the next page and Click the Previous button to return the
previous page.
- 23 -
