TP-Link TL-WA854RE User Manual

TL-WA854RE
300Mbps Universal WiFi Range Extender User Guide
4
Chapter 2 Hardware Installation
2.1 Before You Begin
Please read this User Guide carefully before installing and using the equipment. The operating
distance range of your wireless connection can vary significantly depending on the physical
position of the wireless devices. Factors that can weaken signals by getting in the way of your
network’s radio waves are metal appliances or obstructions, and walls. Typical ranges vary based
on the types of materials and background RF (radio frequency) noise in your home or office.
In order to optimize the performance of TL-WA854RE, please follow the instructions below to
achieve an ideal location (please make sure it is always within the wireless coverage of the
wireless router).

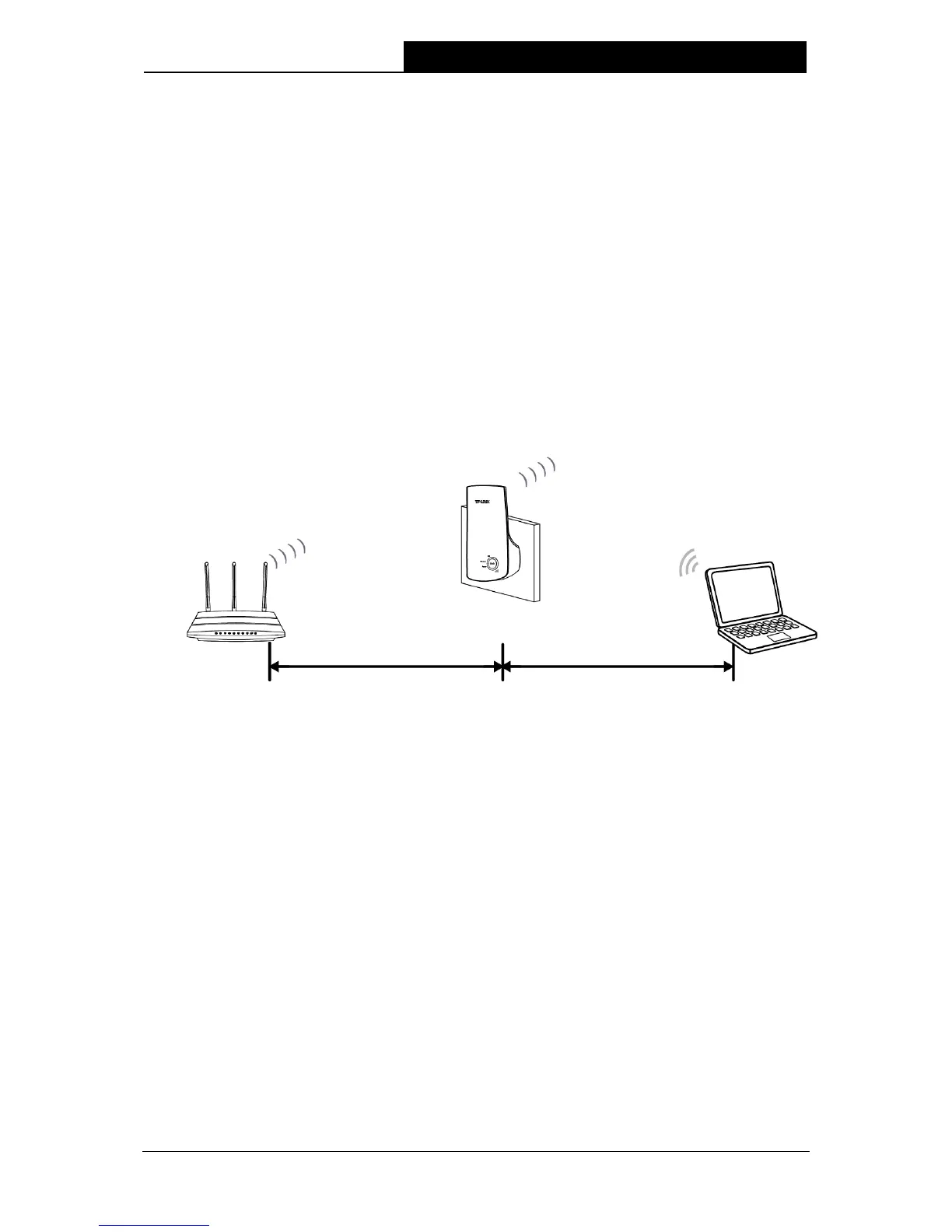

1) Half-way Between - Generally, the ideal location for TL-WA854RE is half-way between the
Wireless router and Wireless Client. If the wireless signal is not satisfactory, you may place
TL-WA854RE somewhat nearer to the Wireless router.
2) No Obstacles and Spacious - Clear obstacles in the way between TL-WA854RE and
Wireless router. It’s better to locate it in a spacious place, such as near the corridors.
3) No Interference - Keep TL-WA854RE far away from wireless interference, which may come
from electrical appliances that works in the same frequency band as TL-WA854RE, such as
Blue tooth devices, cordless phones, microwave ovens, etc.
4) 3 Signal Lights - You can also find an ideal location via the signal lights on the front panel of
TL-WA854RE. These lights show the strength of signal your range extender receives from
the root AP. It's recommended that you choose a location where at least 3 signal lights light
blue, in order to guarantee a good performance.

Note:
TP-LINK recommends that you connect to the Range Extender when your home network
connection is poor, or when you want a larger wireless coverage to eliminate “dead zones”. As in
compliance with the wireless transmission protocol, all the Range Extender devices are set to
work in half-duplex instead of full-duplex mode. In other words, the Range Extender has to
process one-way communication between your root Wireless router (or AP) and the terminal
clients; so the transmission time will be double-increased, while the speed will be decreased.

TP-Link TL-WA854RE Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	70M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Maximum data transfer rate	300 Mbit/s
Certification	CE, RoHS
Product color	White
Antennas quantity	2
Quantity per pack	1 pc(s)
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3 W
Type	Network repeater
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux.
Transmitting power (CE)	15 dBm
Harmonized System (HS) code	85171800
Wi-Fi band	Single-band (2.4 GHz)
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	1
Package depth	101.5 mm
Package width	156.5 mm
Package height	89 mm
Package weight	180 g

Weight and Dimensions

Depth	65.8 mm
Width	110 mm
Height	75.2 mm
