TP-Link TL-WA854RE User Manual

TL-WA854RE
300Mbps Universal WiFi Range Extender User Guide
22
 Current Status - The connected wireless station's running status, one of STA-AUTH /
STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN /
Disconnected
 Received Packets - packets received by the station
 Sent Packets - packets sent by the station
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click the Refresh button.
If the numbers of connected wireless stations go beyond one page, click the Next button to go to
the next page and click the Previous button to return the previous page.

Note:
This page will be refreshed automatically every 5 seconds.
4.5.6 Throughput Monitor
Selecting Wireless > Throughput Monitor will helps to watch wireless throughput information in
the following screen shown in Figure 4-15.

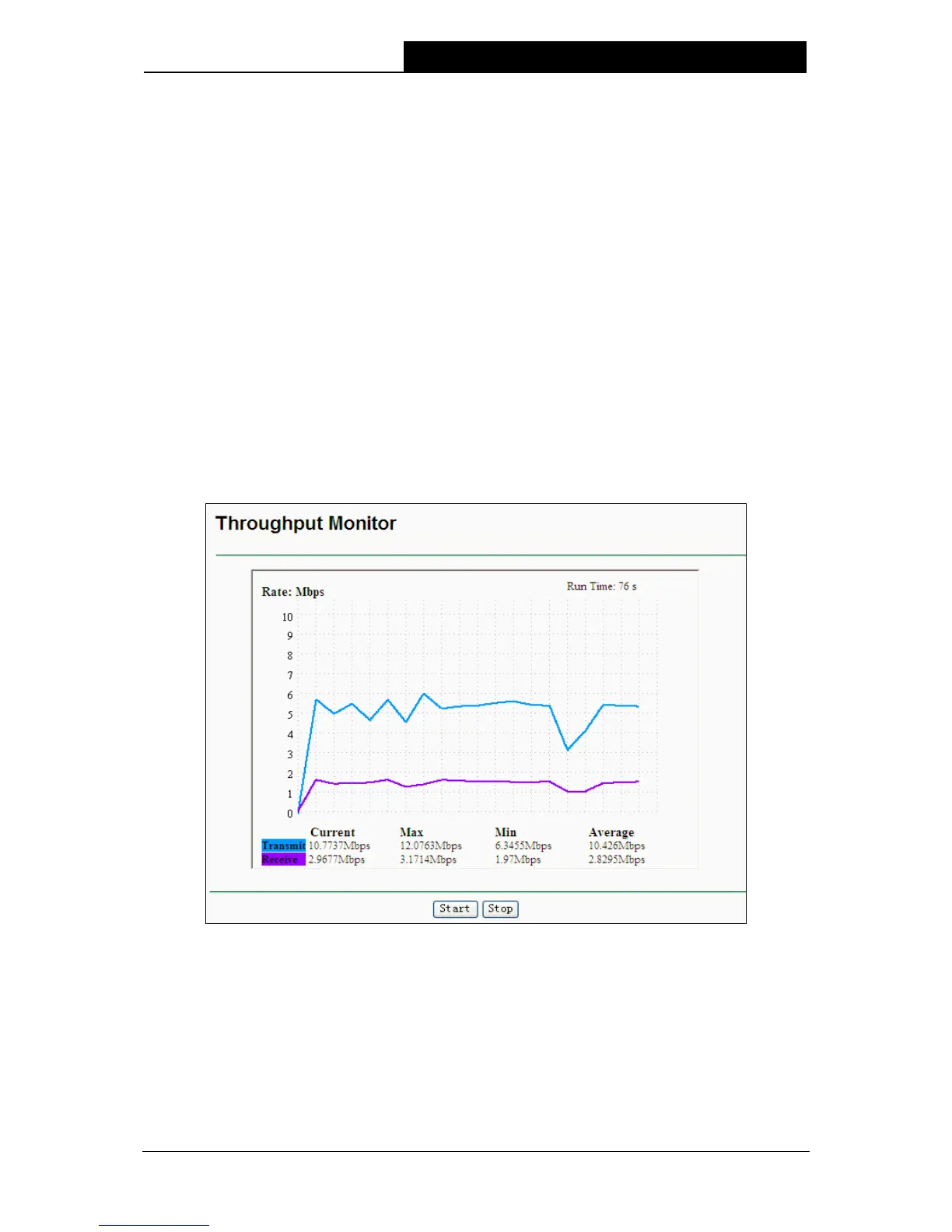

Figure 4-15 Throughput Monitor
 Rate - The Throughput unit.
 Run Time - How long this function is running.
 Transmit - Wireless transmit rate information.
 Receive - Wireless receive rate information.
Click the Start button to start wireless throughput monitor.
Click the Stop button to stop wireless throughput monitor.

TP-Link TL-WA854RE Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	70M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Maximum data transfer rate	300 Mbit/s
Certification	CE, RoHS
Product color	White
Antennas quantity	2
Quantity per pack	1 pc(s)
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3 W
Type	Network repeater
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux.
Transmitting power (CE)	15 dBm
Harmonized System (HS) code	85171800
Wi-Fi band	Single-band (2.4 GHz)
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	1
Package depth	101.5 mm
Package width	156.5 mm
Package height	89 mm
Package weight	180 g

Weight and Dimensions

Depth	65.8 mm
Width	110 mm
Height	75.2 mm
