TL-WA854RE
300Mbps Universal WiFi Range Extender User Guide
24

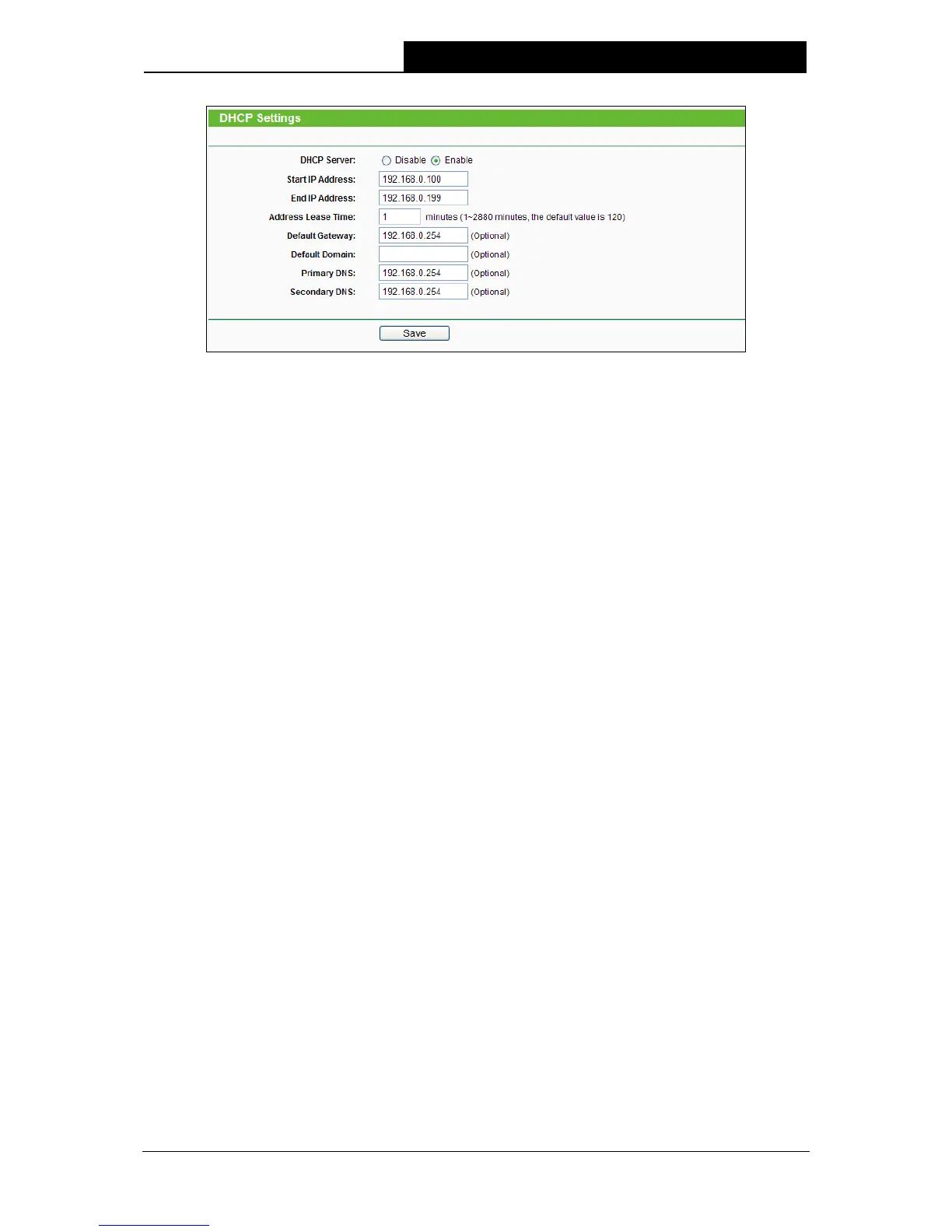

Figure 4-18 DHCP Settings – Enabled
 DHCP Server - Selecting the radio button before Disable/Enable will disable/enable the
DHCP server on your Range Extender. The default setting is Enable. If you disable the
Server, you must have another DHCP server within your network or else you must manually
configure the computer.
 Start IP Address - This field specifies the first address in the IP Address pool. 192.168.0.100
is the default start IP address.
 End IP Address - This field specifies the last address in the IP Address pool. 192.168.0.199
is the default end IP address.
 Address Lease Time - Enter the amount of time for the PC to connect to the Range Extender
with its current assigned dynamic IP address. The time is measured in minutes. After the time
is up, the PC will be automatically assigned a new dynamic IP address. The range of the time
is 1 ~ 2880 minutes. The default value is 120 minutes.
 Default Gateway (optional) - Enter the IP address of the gateway for your LAN. The factory
default setting is 0.0.0.0.
 Default Domain (optional) - Enter the domain name of the your DHCP server. You can leave
the field blank.
 Primary DNS (optional) - Enter the DNS IP address provided by your ISP. Consult your ISP
if you don’t know the DNS value. The factory default setting is 0.0.0.0.
 Secondary DNS (optional) - Enter the IP address of another DNS server if your ISP provides
two DNS servers. The factory default setting is 0.0.0.0.
Click Save to save the changes.

Note:
To use the DHCP server function of the device, you should configure all computers in the LAN as
"Obtain an IP Address automatically" mode. This function will not take effect until the device
reboots.
4.6.2 DHCP Client List
Selecting DHCP > DHCP Client List will enable you to view the Client Name, MAC Address,
Assigned IP and Lease Time for each DHCP Client attached to the device (Figure 4-19).

TP-Link TL-WA854RE Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	70M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Maximum data transfer rate	300 Mbit/s
Certification	CE, RoHS
Product color	White
Antennas quantity	2
Quantity per pack	1 pc(s)
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3 W
Type	Network repeater
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux.
Transmitting power (CE)	15 dBm
Harmonized System (HS) code	85171800
Wi-Fi band	Single-band (2.4 GHz)
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	1
Package depth	101.5 mm
Package width	156.5 mm
Package height	89 mm
Package weight	180 g

Weight and Dimensions

Depth	65.8 mm
Width	110 mm
Height	75.2 mm
