TP-Link TL-WA854RE User Manual

TL-WA854RE
300Mbps Universal WiFi Range Extender User Guide
25

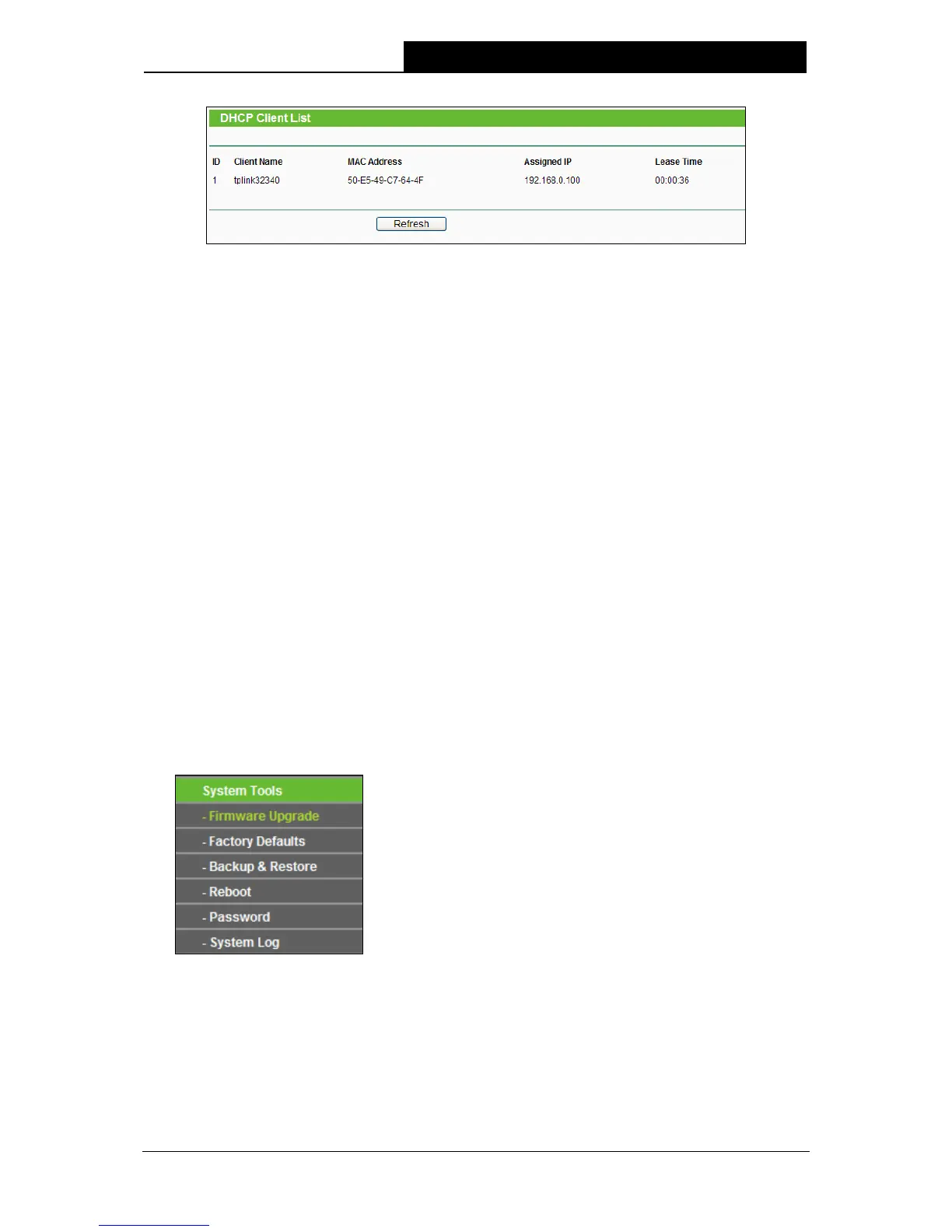

Figure 4-19 DHCP Clients List
 ID - Here displays the index of the DHCP client.
 Client Name - Here displays the name of the DHCP client.
 MAC Address - Here displays the MAC address of the DHCP client.
 Assigned IP - Here displays the IP address that the Range Extender has allocated to the
DHCP client.
 Lease Time - Here displays the time of the DHCP client leased. Before the time is up, DHCP
client will request to renew the lease automatically.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click on the Refresh button.
4.7 System Tools
System Tools option helps you to optimize the configuration of your device. You can upgrade the
Range Extender to the latest version of firmware as well as backup or restore the Range
Extender’s configuration files. It’s suggested that you change the default password to a more
secure one because it controls access to the device’s web-based management page. Besides,
you can find out what happened to the system in System Log.
There are six submenus under the System Tools menu (shown as Figure 4-20): Firmware
Upgrade, Factory Defaults, Backup & Restore, Reboot, Password, and System Log. Clicking
any of them will enable you to configure the corresponding function. The detailed explanations for
each submenu are provided below.
Figure 4-20 The System Tools menu
4.7.1 Firmware Upgrade
Selecting System Tools > Firmware Upgrade allows you to upgrade the latest version of
firmware for the device on the screen shown in Figure 4-21.

TP-Link TL-WA854RE Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	70M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Maximum data transfer rate	300 Mbit/s
Certification	CE, RoHS
Product color	White
Antennas quantity	2
Quantity per pack	1 pc(s)
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3 W
Type	Network repeater
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux.
Transmitting power (CE)	15 dBm
Harmonized System (HS) code	85171800
Wi-Fi band	Single-band (2.4 GHz)
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	1
Package depth	101.5 mm
Package width	156.5 mm
Package height	89 mm
Package weight	180 g

Weight and Dimensions

Depth	65.8 mm
Width	110 mm
Height	75.2 mm
