TP-Link TL-WA854RE User Manual

TL-WA854RE
300Mbps Universal WiFi Range Extender User Guide
28
Click the Reboot button to reboot the device.
Some settings of the device will take effect only after rebooting, which include:
• Change LAN IP Address (System will reboot automatically).
• Change the Wireless configurations.
• Change the Web Management Port.
• Upgrade the firmware of the device (system will reboot automatically).
• Restore the device's settings to factory defaults (system will reboot automatically).
• Update the configuration with a file (system will reboot automatically).
4.7.5 Password
Selecting System Tools > Password allows you to change the factory default user name and
password of the device on the screen shown in Figure 4-25.

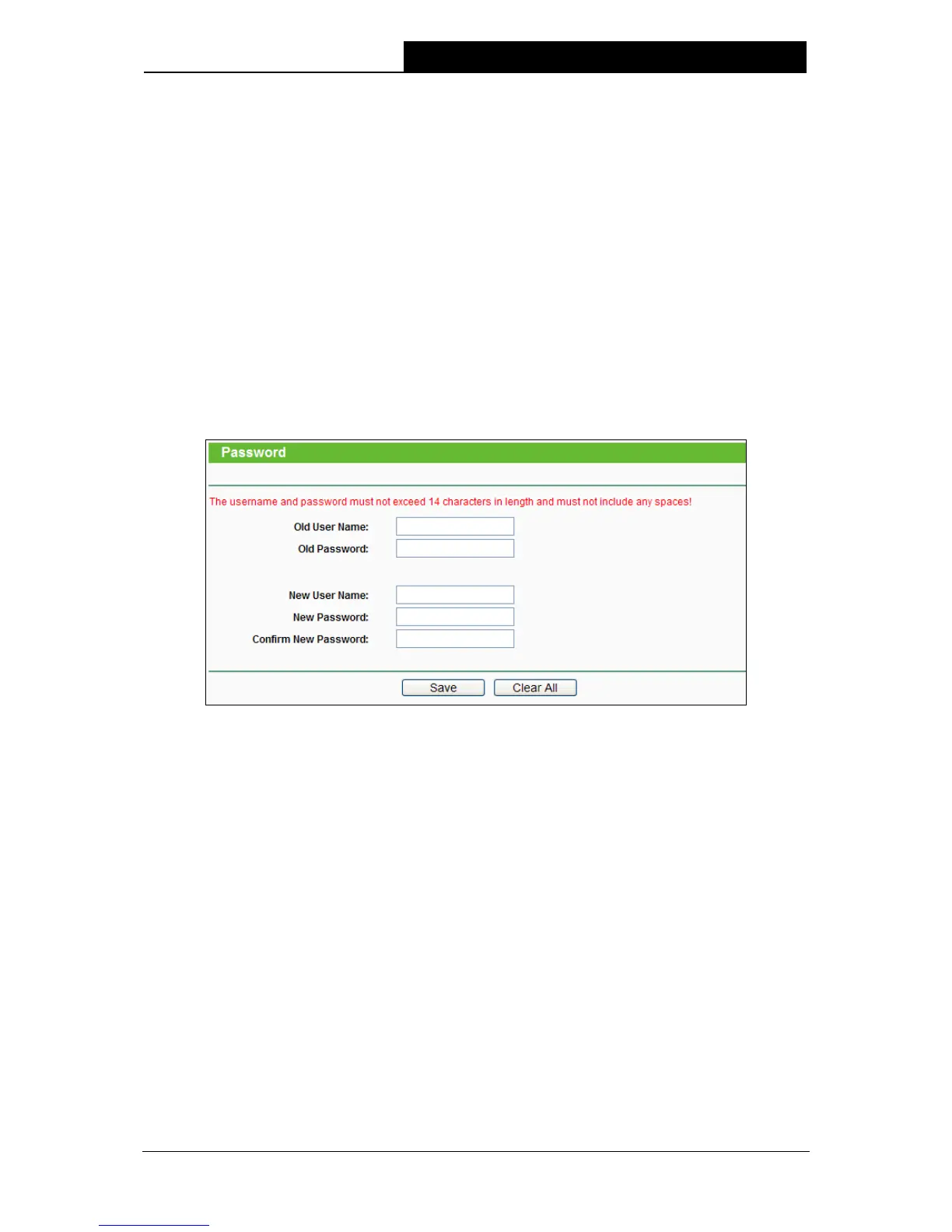

Figure 4-25 Password
It is strongly recommended that you change the factory default user name and password of the
device. All users who try to access the device's web-based management page or Quick Setup will
be prompted for the device's user name and password.

Note:
The new user name and password must not exceed 14 characters in length and must not include
any spaces. Enter the new Password twice to confirm it.
Click Save when finished.
Click Clear All to clear all.
4.7.6 System Log
Selecting System Tools > System Log allows you to query the Logs of the device on the screen
shown in Figure 4-26.

TP-Link TL-WA854RE Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	70M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Maximum data transfer rate	300 Mbit/s
Certification	CE, RoHS
Product color	White
Antennas quantity	2
Quantity per pack	1 pc(s)
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3 W
Type	Network repeater
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux.
Transmitting power (CE)	15 dBm
Harmonized System (HS) code	85171800
Wi-Fi band	Single-band (2.4 GHz)
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	1
Package depth	101.5 mm
Package width	156.5 mm
Package height	89 mm
Package weight	180 g

Weight and Dimensions

Depth	65.8 mm
Width	110 mm
Height	75.2 mm
