TP-Link TL-WN7200ND User Manual

TL-WN7200ND 150Mbps High Power Wireless USB Adapte
r
14

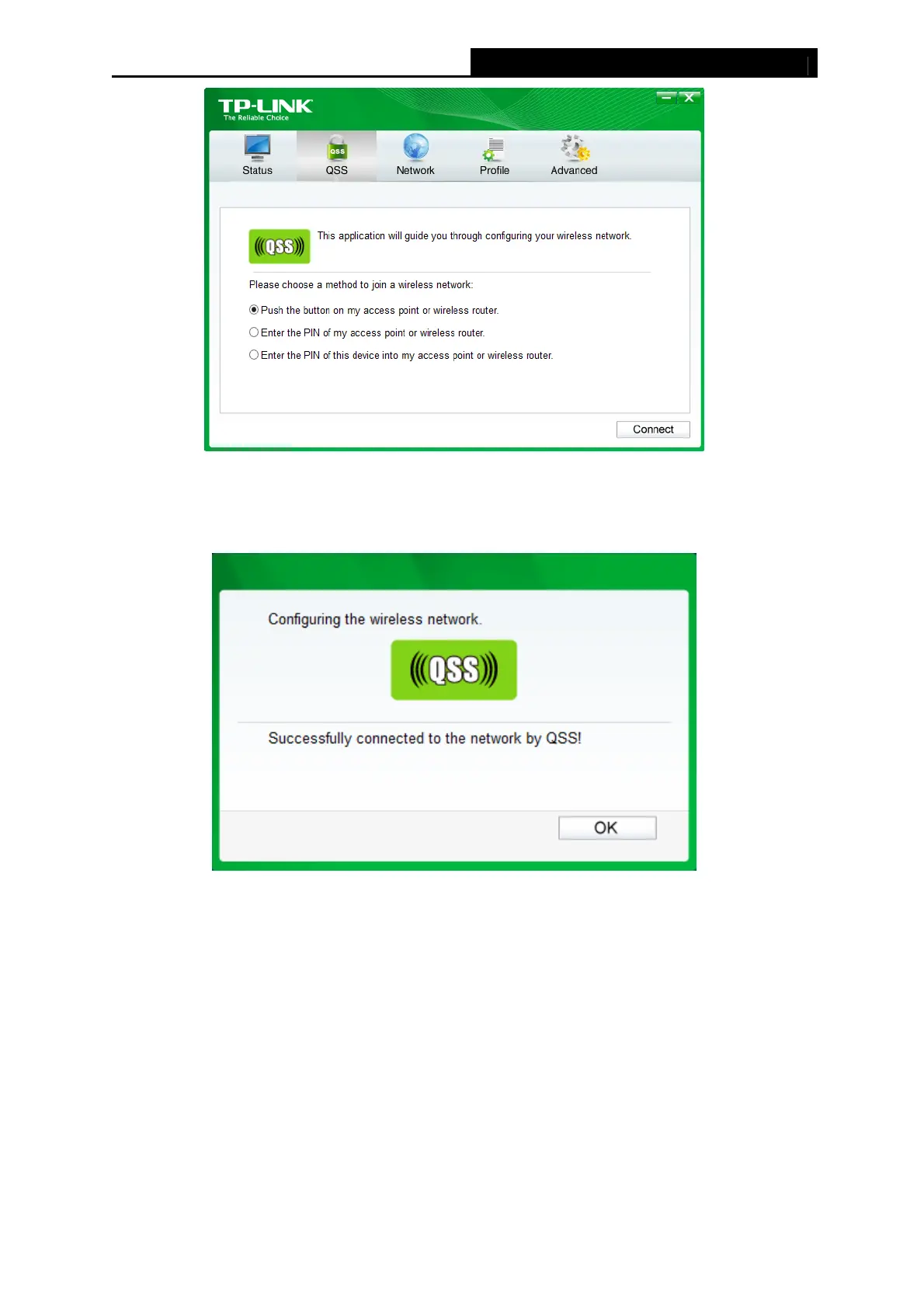

Figure 3-10
3. When the following window appears, you have successfully connected to the network.
Click OK to finish the WPS connection.
Figure 3-11
3.2.2 PIN method
There are two ways to configure the QSS by PIN method:
1) Enter the PIN from your AP device.
2) Enter a PIN into your AP device.
Following are detailed configuration procedures of each way.
3.2.2.1. Enter the PIN from your AP device
1.
Open TWCU
and click QSS tab. Select Enter the PIN of my access point or wireless
router. In the empty field beside PIN, enter the PIN labeled on the bottom of the router

TP-Link TL-WN7200ND Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Maximum data transfer rate	150 Mbit/s
Gain	5 dBi
Dimensions (WxDxH)	90.8 x 60.8 x 24.5 mm
Compliance industry standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	11n: 150Mbps; 11g: 54Mbps; 11b: 11Mbps
Connectivity technology	Wireless
Internal	No
Certification	CE, FCC, RoHS
Receiver sensitivity	802.11n 135M: -68dBm 108M: -72dBm 81M: -76dBm 802.11g 54M: -76dBm 36M: -81dBm 12M: -89dBm 9M: -91dBm 6M: -92dBm 802.11b 11M: -91dBm 5.5M:-93dBm 1M: -94dBm
Compatible operating systems	Windows 2000/XP/Vista，Windows 7
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
