TL-WN7200ND 150Mbps High Power Wireless USB Adapte
r
28

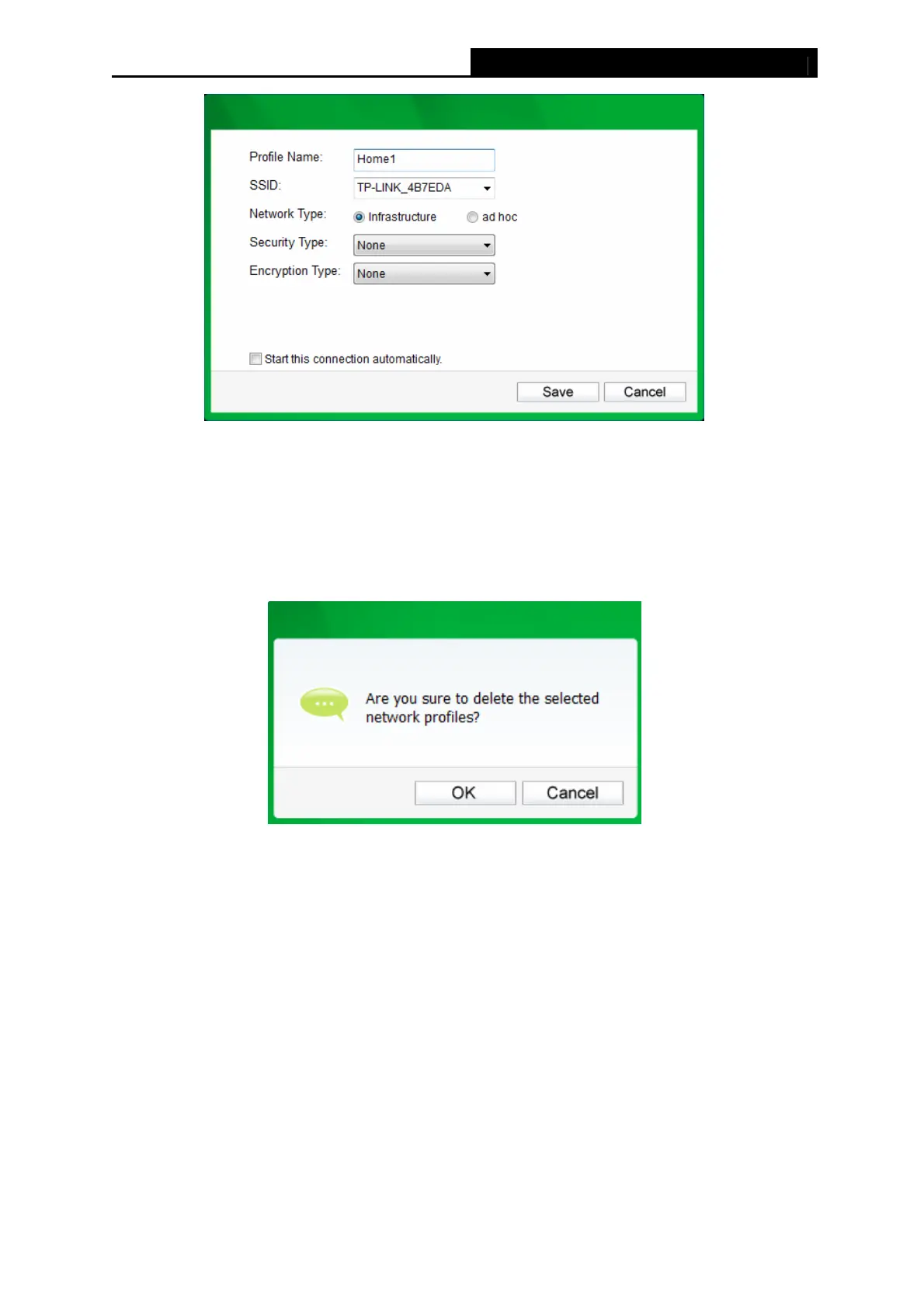

Figure 4-5
4.1.3 Delete a profile
To delete an existing profile, highlight the profile name and click Remove on the bottom of the
screen or press the Delete button on your keyboard. When the following figure appears, click
OK to continue.
Figure 4-6
4.2 Advanced
The following configurations can be made on the Advanced page:
1) To select wireless configuration tool.
Here you can decide which tool to use, either the TP-LINK Configuration Utility or the
Windows wireless configuration tool. This option is available only in Windows XP.
2) To switch to another wireless network adapter.
Here you can switch to another adapter installed in your computer. The adapters
successfully installed in your computer will be listed in the drop-down menu if the adapters
are supported by this utility.
3) To switch to SoftAP mode.
Once enabled, the adapter will be able to work as an AP.

TP-Link TL-WN7200ND Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Maximum data transfer rate	150 Mbit/s
Gain	5 dBi
Dimensions (WxDxH)	90.8 x 60.8 x 24.5 mm
Compliance industry standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	11n: 150Mbps; 11g: 54Mbps; 11b: 11Mbps
Connectivity technology	Wireless
Internal	No
Certification	CE, FCC, RoHS
Receiver sensitivity	802.11n 135M: -68dBm 108M: -72dBm 81M: -76dBm 802.11g 54M: -76dBm 36M: -81dBm 12M: -89dBm 9M: -91dBm 6M: -92dBm 802.11b 11M: -91dBm 5.5M:-93dBm 1M: -94dBm
Compatible operating systems	Windows 2000/XP/Vista，Windows 7
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
