TP-Link TL-WN7200ND User Manual

TL-WN7200ND 150Mbps High Power Wireless USB Adapte
r
30
Chapter 5 AP Mode
In Soft AP mode, the adapter will work as an AP. Suppose that only one computer in your
house can access the Internet for various reasons like only one WLAN port is available on your
wired broadband router, however, other wireless-capable devices also want to share the
Internet. Then the adapter can be configured as an AP under the Soft AP mode, saving you the
trouble of having to get a separate access point or a router.
With this feature, a computer can use a single physical wireless adapter to connect as a client
to a hardware access point while at the same time acting as a software AP allowing other
wireless-capable devices to connect to it.

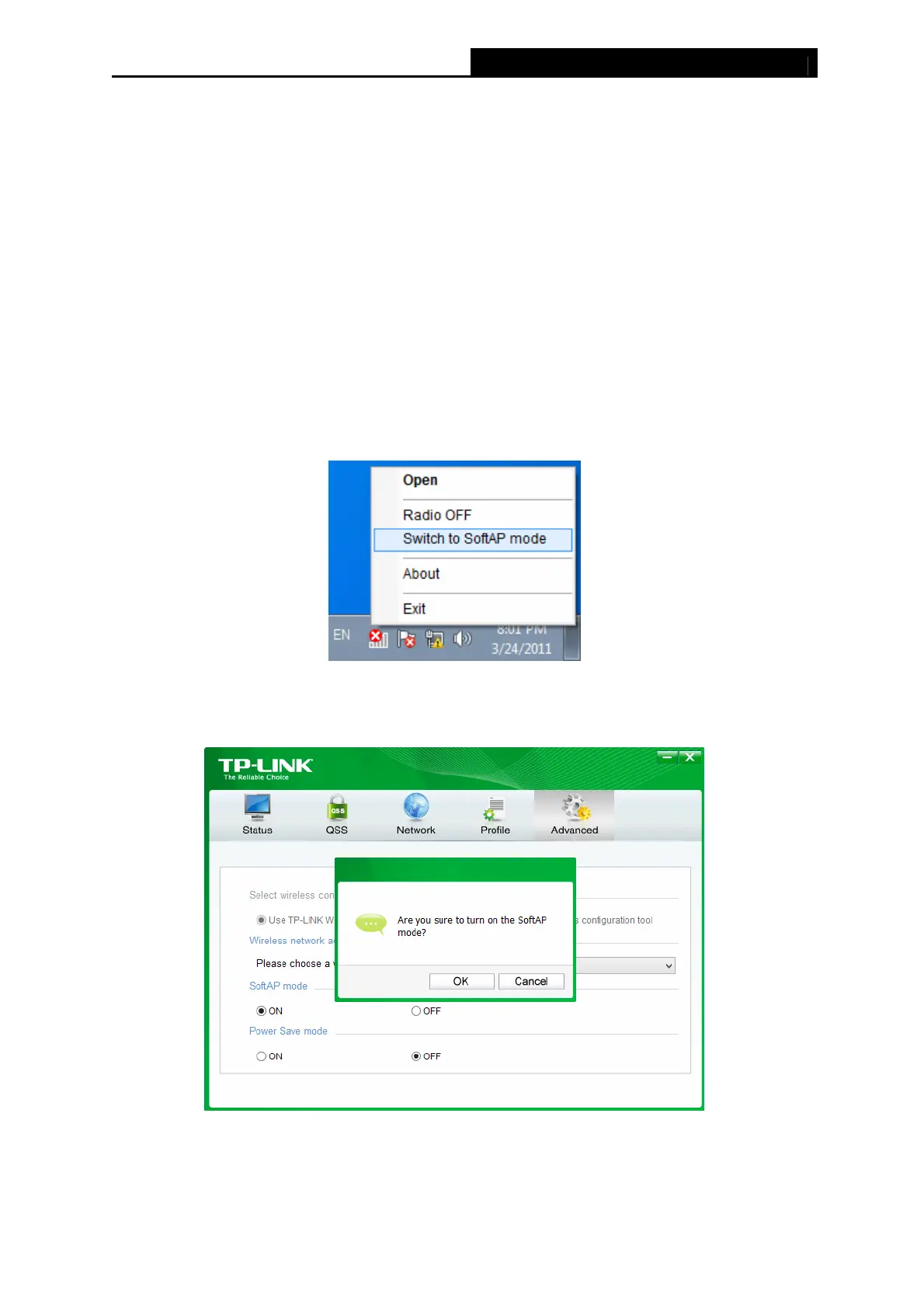

To switch to this mode, right-click on the utility icon in your system tray and select Switch to
SoftAP mode.
Figure 5-1
Or from the Advanced page of the utility, tick ON under the SoftAP mode as shown in the
following figure. Click OK when prompted to confirm the setting.
Figure 5-2

TP-Link TL-WN7200ND Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Maximum data transfer rate	150 Mbit/s
Gain	5 dBi
Dimensions (WxDxH)	90.8 x 60.8 x 24.5 mm
Compliance industry standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	11n: 150Mbps; 11g: 54Mbps; 11b: 11Mbps
Connectivity technology	Wireless
Internal	No
Certification	CE, FCC, RoHS
Receiver sensitivity	802.11n 135M: -68dBm 108M: -72dBm 81M: -76dBm 802.11g 54M: -76dBm 36M: -81dBm 12M: -89dBm 9M: -91dBm 6M: -92dBm 802.11b 11M: -91dBm 5.5M:-93dBm 1M: -94dBm
Compatible operating systems	Windows 2000/XP/Vista，Windows 7
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
