TL-WN7200ND 150Mbps High Power Wireless USB Adapte
r
19

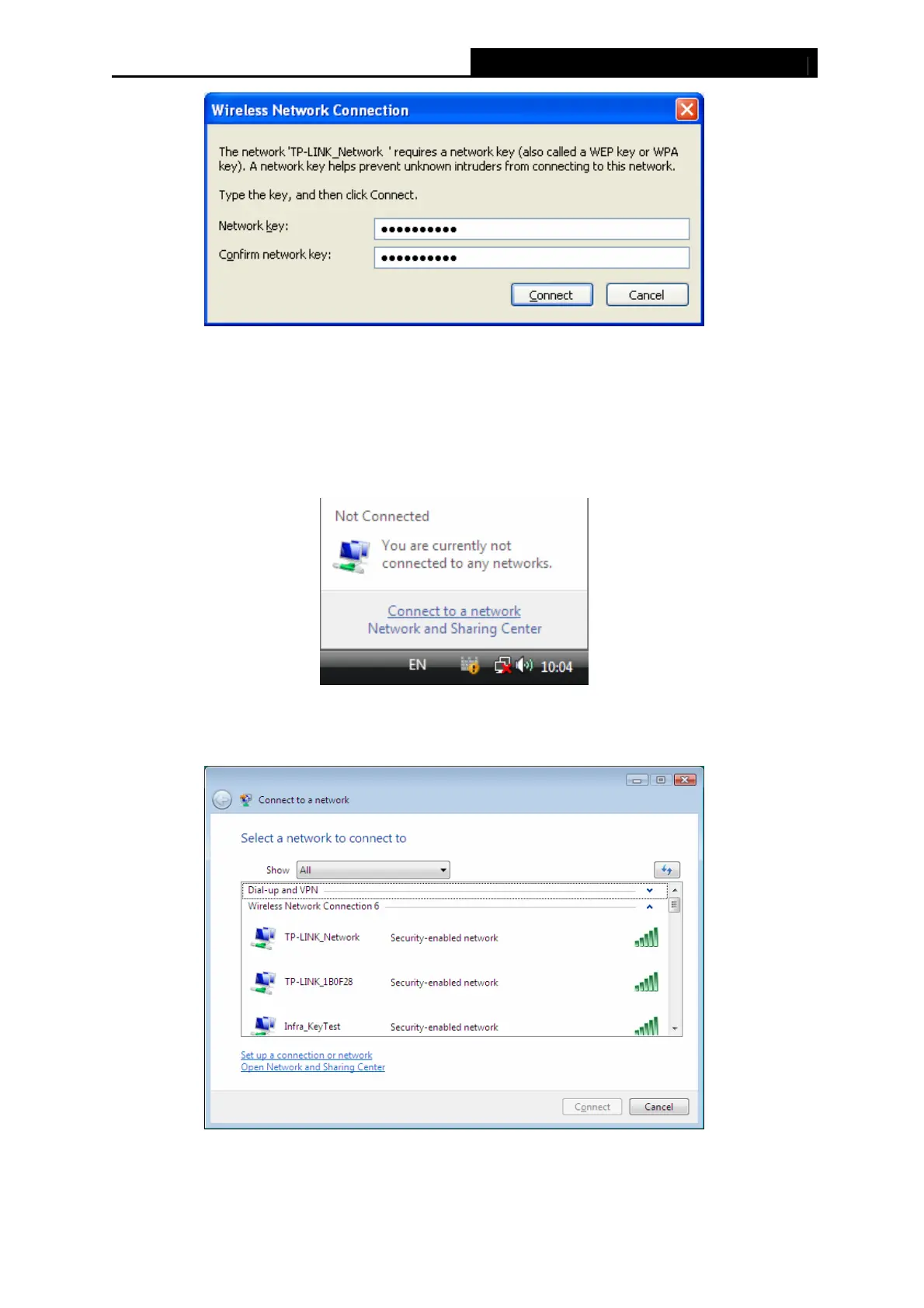

Figure 3-22
3.3.2 In Windows Vista
Windows Vista users may use the built-in wireless utility. Follow the steps below.
1. Open the wireless utility by right-clicking on the wireless computer icon in your system tray
as shown in the figure below. Select Connect to a network.
Figure 3-23
2. The utility will display any available wireless networks in your area. Select the wireless
network you would like to connect and then click Connect.
Figure 3-24

TP-Link TL-WN7200ND Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Maximum data transfer rate	150 Mbit/s
Gain	5 dBi
Dimensions (WxDxH)	90.8 x 60.8 x 24.5 mm
Compliance industry standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Supported data transfer rates	11n: 150Mbps; 11g: 54Mbps; 11b: 11Mbps
Connectivity technology	Wireless
Internal	No
Certification	CE, FCC, RoHS
Receiver sensitivity	802.11n 135M: -68dBm 108M: -72dBm 81M: -76dBm 802.11g 54M: -76dBm 36M: -81dBm 12M: -89dBm 9M: -91dBm 6M: -92dBm 802.11b 11M: -91dBm 5.5M:-93dBm 1M: -94dBm
Compatible operating systems	Windows 2000/XP/Vista，Windows 7
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
