TP-Link TL-WR842ND User Manual

TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 9 -
Chapter 3. Quick Installation Guide
This chapter will show you how to configure the basic functions of your 300Mbps Multi-Function
Wireless N Router using Quick Setup Wizard within minutes.
3.1 TCP/IP Configuration
The default domain name of the Router is http://tplinklogin.net and the default Subnet Mask is
255.255.255.0. These values can be changed as you desire. In this guide, we use all the default
values for description.
Connect the local PC to the LAN ports of the Router and then you can configure the IP address for
your PC by the following method: Set up the TCP/IP Protocol in "Obtain an IP address
automatically" mode on your PC. If you need instructions as to how to do this, please refer to
Appendix B: "Configuring the PC”.
Then the built-in DHCP server will assign IP address for the
PC.
Now, you can run the Ping command in the command prompt to verify the network connection
between your PC and the Router. The following example is in Windows 2000 OS.
Open a command prompt, and type ping 192.168.0.1, and then press Enter.
¾ If the result displayed is similar to the Figure 3-1, it means the connection between your PC
and the Router has been established well.

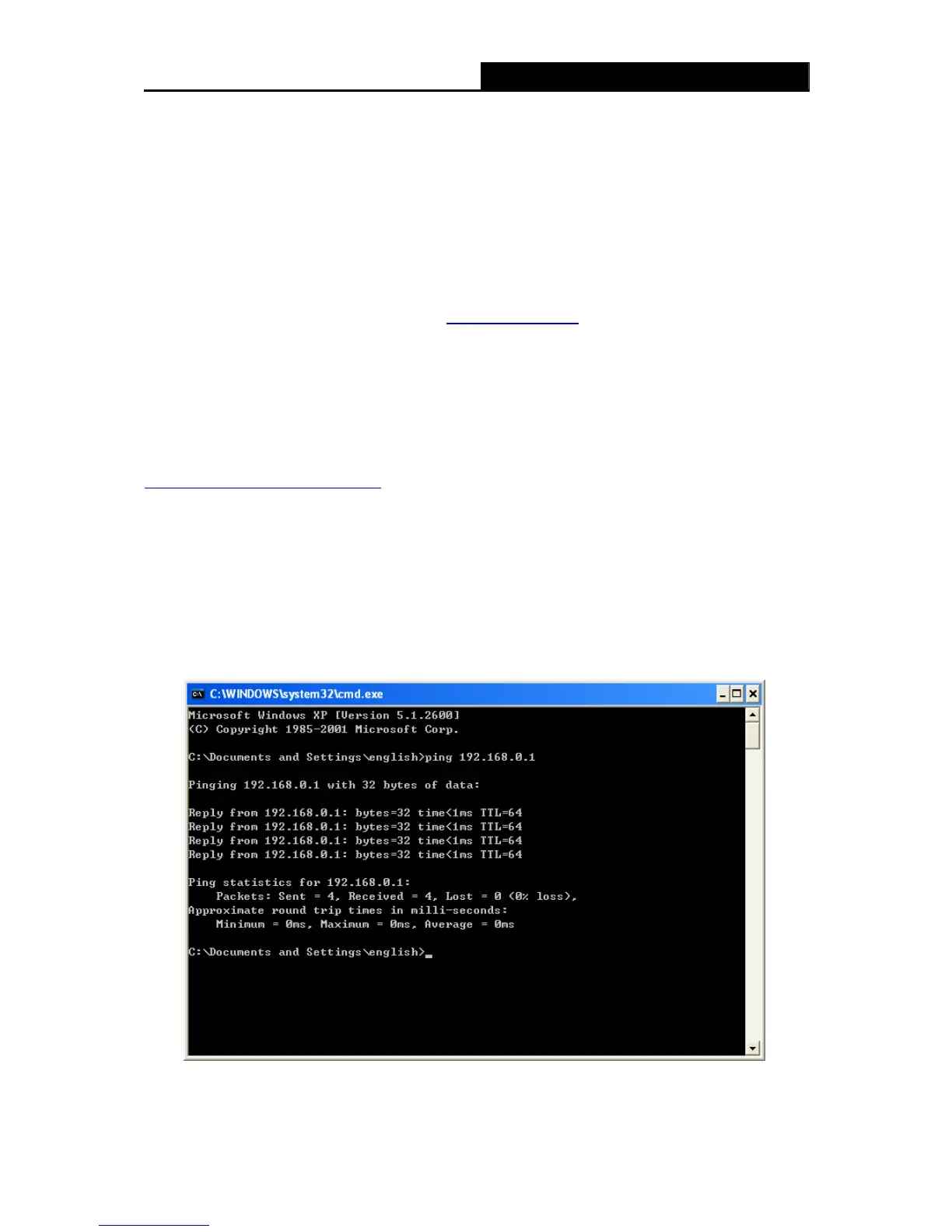

Figure 3-1 Success result of Ping command

TP-Link TL-WR842ND Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11n
VPN tunnels quantity	5
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
Supported network protocols	PPTP, L2TP, PPPoE, FTP
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Product color	White
LED indicators	LAN, Link, Power, WAN

Weight and Dimensions

Depth	130 mm
Width	192 mm
Height	33 mm
Weight	- g
