TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 60 -
a) Select the Share entire partition or a specified folder option.
b) Enter the display name of the share folder in Display Name edit box.
c) Click the Save button to save the configuration and the page will be redirected to the
media server configuration page as shown in Figure 4-46.

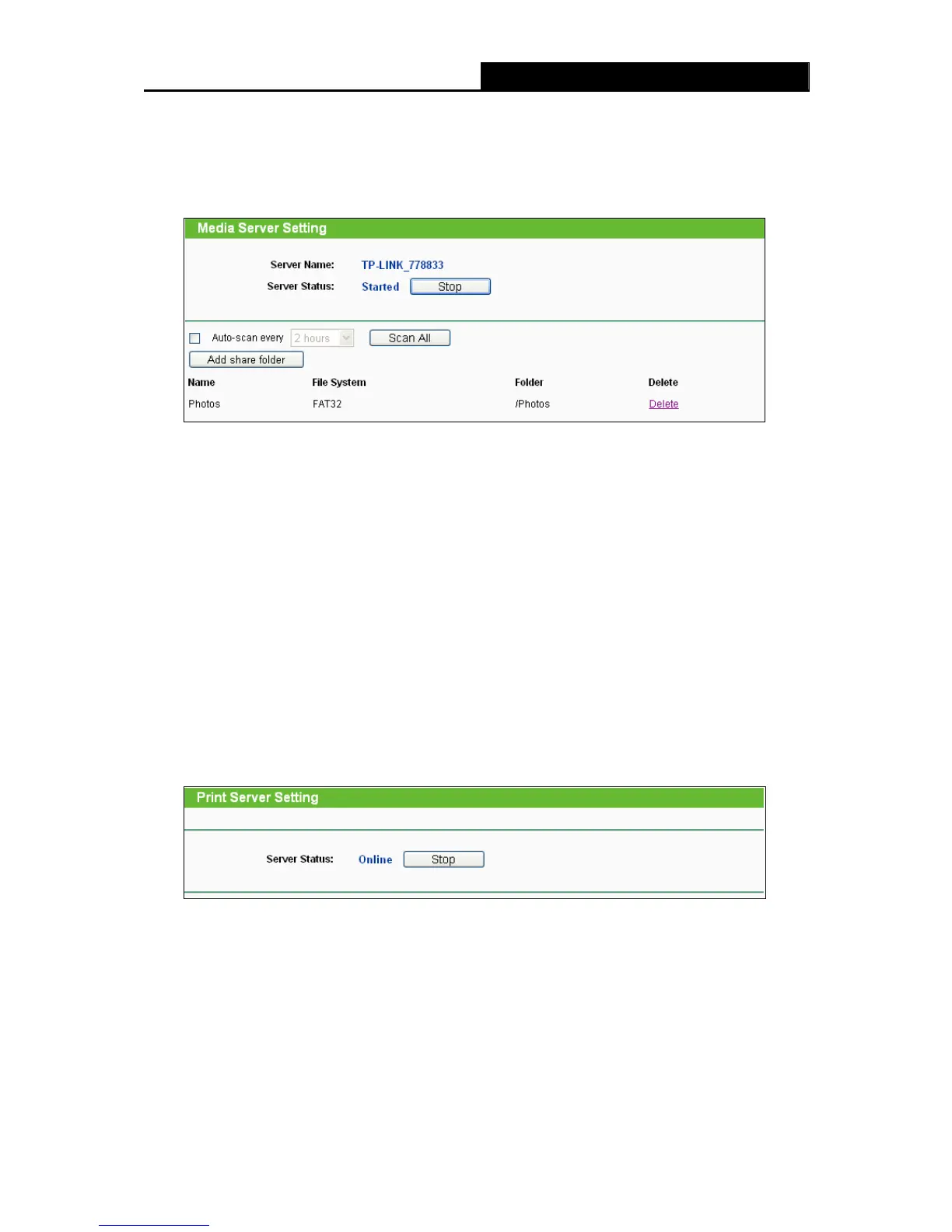

Figure 4-46 Media Server Setting
4. Click the Scan All button to scan all the share folders immediately. You can also select the
Auto-scan, at the same time, select an auto scan interval time by drop-down list. In this case,
the media server will auto scan the share folders.
)
Note:
The max share folders number is 6 and the max share media files number is 100. If you want to
share a new folder when the number has reached 6, you can delete an existing share folder and
then add a new one.
4.9.4 Print Server
Choose menu “USB Settings→Print Server”, you can configure print server on this page as
shown below.
Figure 4-47 Pint Server Setting
There are three states of the print server, they are as follows:
¾ Online - Indicates the print service has been turned on, and no user is using the print
services at present. You can click the "Stop" button to stop the print service.
¾ Offline - Indicates the print service feature is disabled. You can click "Start" button to start the
To Next Page
