TP-Link TL-WR842ND User Manual

TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 54 -
10.0.0.10 and 10.0.0.1 respectively. Security protocol and other parameters for IPsec tunnel and
the remote router should be configured the same.
As Security Association is unidirectional, an ingoing SA and an outgoing SA are created to protect
data flows for each tunnel after IPsec tunnel is successfully established. The ingoing SPI value
and outgoing SPI value are different. However, the Incoming SPI value must match the Outgoing
SPI value at the other end of the tunnel, and vice versa.

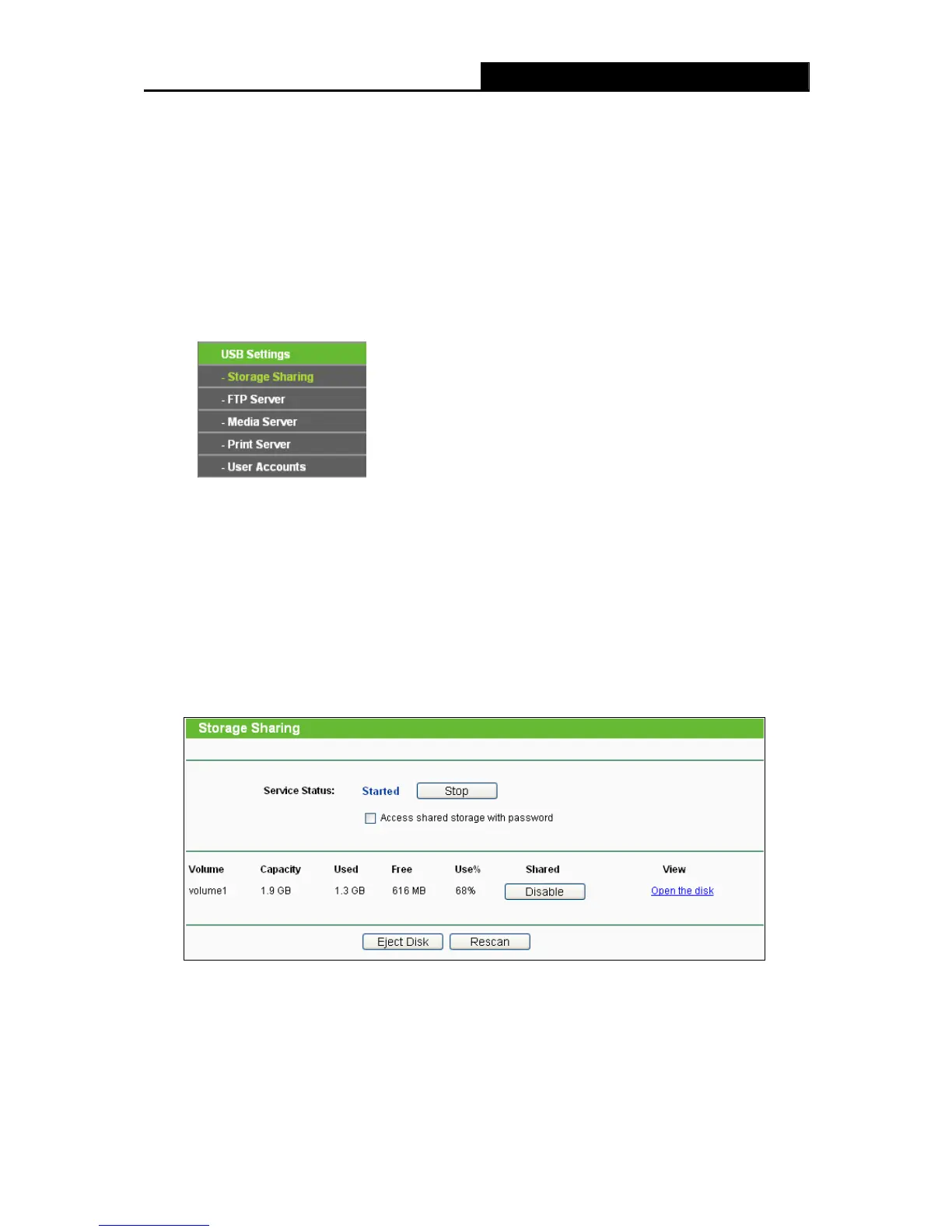

4.9 USB Settings
Figure 4-37 The USB Settings menu
There are four submenus under the USB Settings menu (shown in Figure 4-37), Storage Sharing,
FTP Server, Media Server, Print Server and User Accounts. Click any of them, and you will be
able to configure the corresponding function.
4.9.1 Storage Sharing
Choose menu “USB Settings→Storage Sharing”, you can configure a USB disk drive attached
to the Router and view volume and share properties such as share name, capacity, used space,
and free space, etc on this page as shown below.
Figure 4-38 Storage Sharing
¾ Service Status - Indicates the Network Sharing service's current status. You can click
the Start button to start the Storage Sharing service and click the Stop button to stop it.
¾ Volume - The volume name of the USB drive the users have access to.
¾ Capacity - The storage capacity of the USB driver.

TP-Link TL-WR842ND Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11n
VPN tunnels quantity	5
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
Supported network protocols	PPTP, L2TP, PPPoE, FTP
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Product color	White
LED indicators	LAN, Link, Power, WAN

Weight and Dimensions

Depth	130 mm
Width	192 mm
Height	33 mm
Weight	- g
