TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 89 -
corresponding function.
4.14.1 Static Routing List
Choose menu “Advanced Routing → Static Routing List”, and then you can configure the
static route in the next screen (shown in Figure 4-81). A static route is a pre-determined path that
network information must travel to reach a specific host or network.

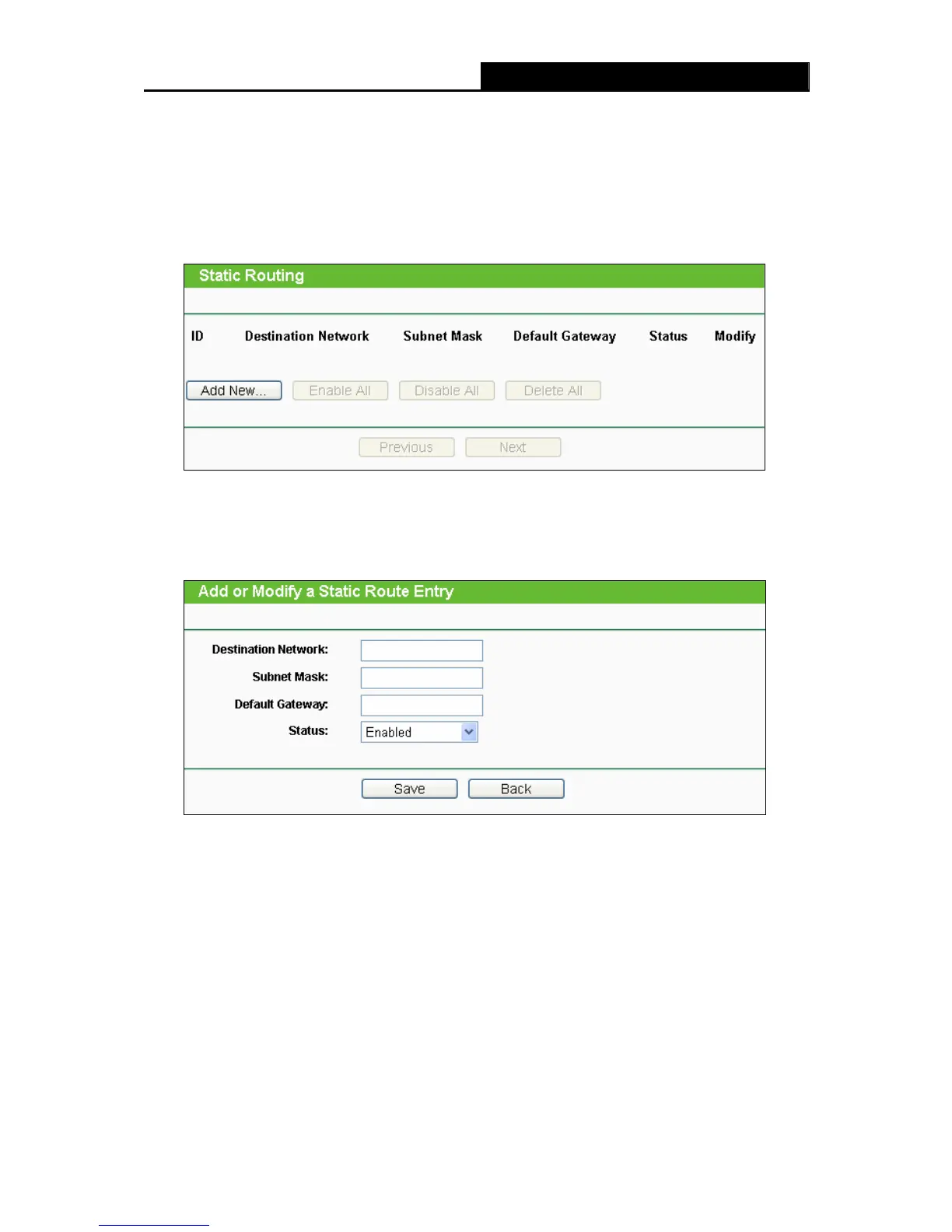

Figure 4-81 Static Routing
To add static routing entries:
1. Click Add New… shown in Figure 4-81, you will see the following screen.
Figure 4-82 Add or Modify a Static Route Entry
2. Enter the following data:
¾ Destination Network - The Destination Network is the address of the network or host that
you want to assign to a static route.
¾ Subnet Mask - The Subnet Mask determines which portion of an IP Address is the
network portion, and which portion is the host portion.
¾ Default Gateway - This is the IP Address of the gateway device that allows for contact
between the Router and the network or host.
3. Select Enabled or Disabled for this entry on the Status drop-down list.
