TP-Link TL-WR842ND User Manual

TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 84 -

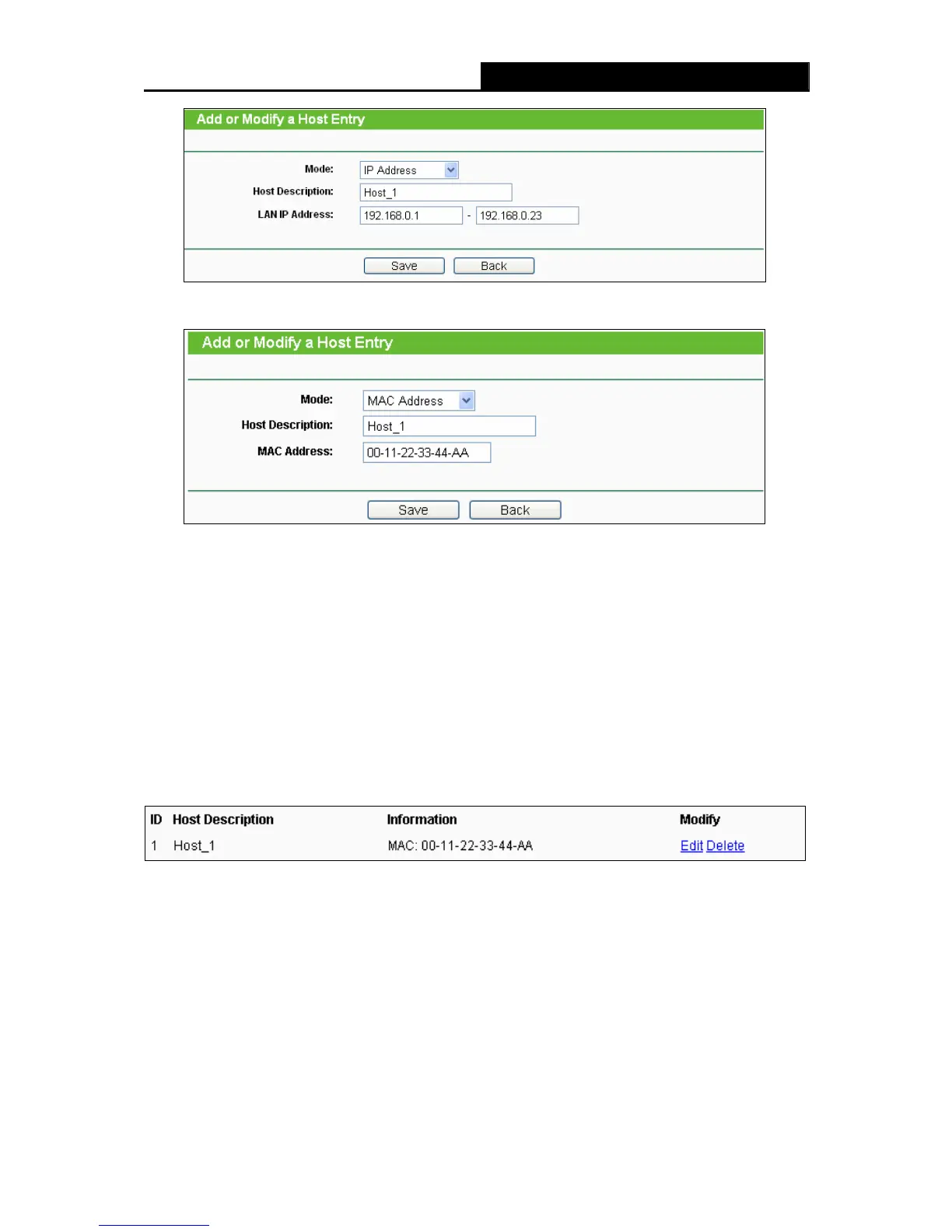

Figure 4-73 Add or Modify a Host Entry
Figure 4-74 Add or Modify a Host Entry
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA, you should first follow the settings below:
1. Click Add New... button in Figure 4-72 to enter the Add or Modify a Host Entry page.
2. In Mode field, select MAC Address from the drop-down list.
3. In Host Description field, create a unique description for the host (e.g. Host_1).
4. In MAC Address field, enter 00-11-22-33-44-AA.
5. Click Save to complete the settings.
Then you will go back to the Host Settings page and see the following list.
4.13.3 Target
Choose menu “Access Control → Target”, and then you can view and set a Target list in the
screen as shown in Figure 4-75. The target list is necessary for the Access Control Rule.

TP-Link TL-WR842ND Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11n
VPN tunnels quantity	5
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
Supported network protocols	PPTP, L2TP, PPPoE, FTP
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Product color	White
LED indicators	LAN, Link, Power, WAN

Weight and Dimensions

Depth	130 mm
Width	192 mm
Height	33 mm
Weight	- g
