TP-Link TL-WR842ND User Manual

TL-WR842ND 300Mbps Multi-Function Wireless N Router
- 77 -

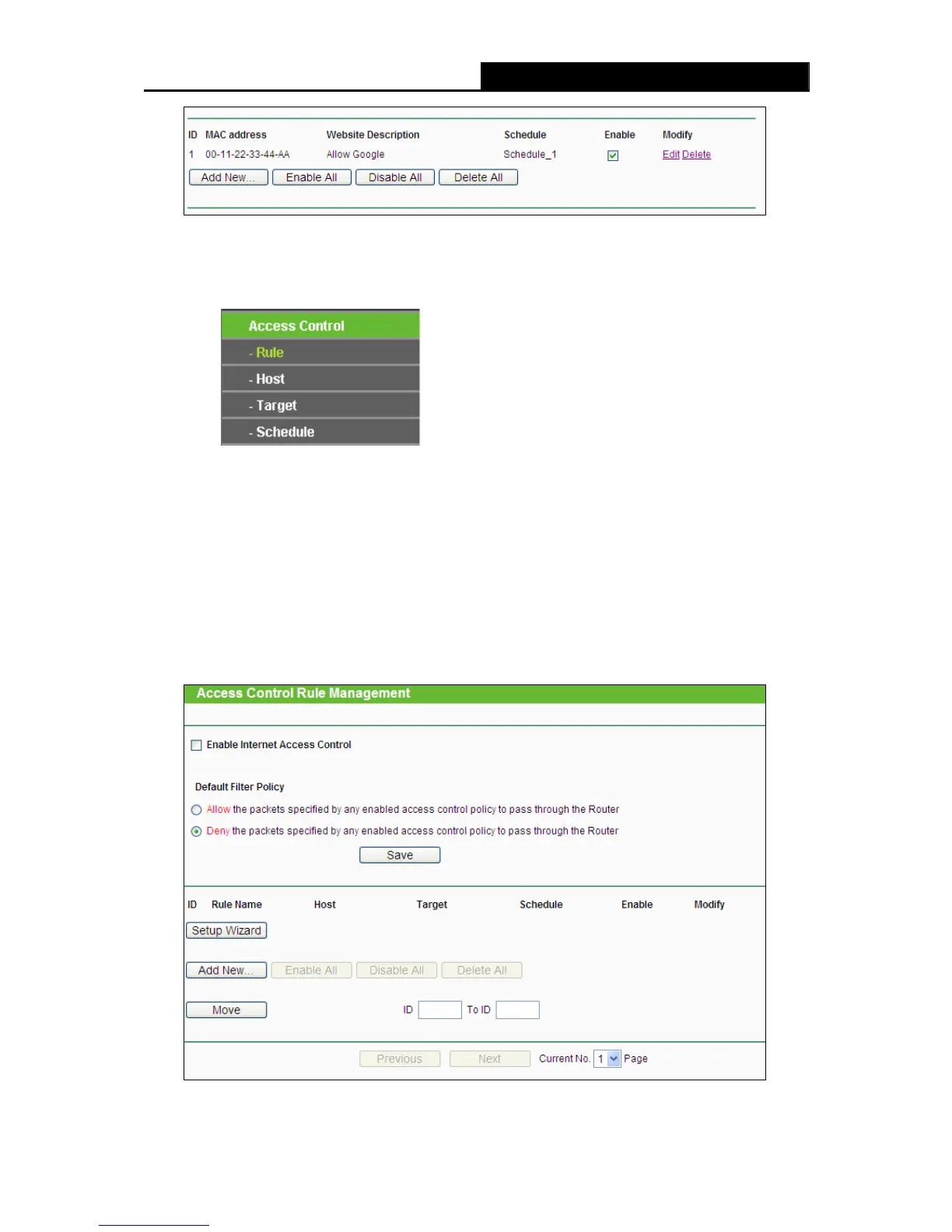

Figure 4-64 Parental Control Settings
4.13 Access Control
Figure 4-65 Access Control
There are four submenus under the Access Control menu as shown in Figure 4-59: Rule, Host,
Target and Schedule. Click any of them, and you will be able to configure the corresponding
function.
4.13.1 Rule
Choose menu “Access Control → Rule”, and then you can view and set Access Control rules in
the screen as shown in Figure 4-66.
Figure 4-66 Access Control Rule Management

TP-Link TL-WR842ND Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11n
VPN tunnels quantity	5
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
Supported network protocols	PPTP, L2TP, PPPoE, FTP
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Product color	White
LED indicators	LAN, Link, Power, WAN

Weight and Dimensions

Depth	130 mm
Width	192 mm
Height	33 mm
Weight	- g
