24 AFDH-SVN01A-EN
AFDH Drive Package Specifications
E-Frame drive unit dimensions

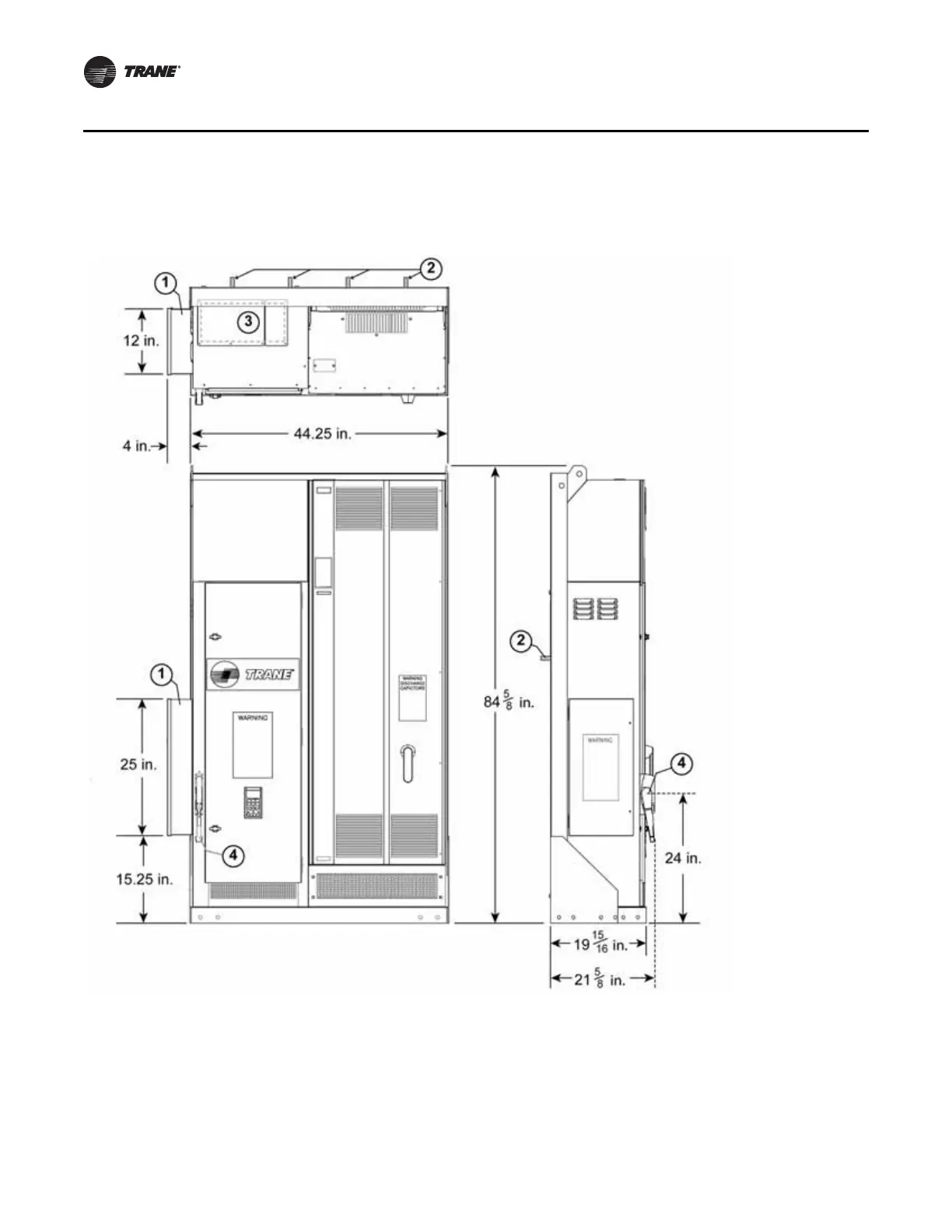

Figure 10. Top, front, and side view of E-Frame AFDH cabinet with dimensions
1. UCP2, or CH531 / AdaptiView control box
2. Z-bracket mounting studs (each stud = 3/8-16 x 1.75 in.)
3. 2-piece access door cover on top of the 7 in. x 14 in. incoming power wire cutout
4. Electrical disconnect switch
