AFDH-SVN01A-EN 33
AFDH Drive Package Specifications
Additional hardware shipped with all UCP2 AFDH packages
Table 14. UCP2 miscellaneous hardware package contents
Note: For convenience, all four possible sizes of shorting buss bars that could be required for a
retrofit AFDH drive installation are included within the UCP2 miscellaneous hardware
package kit. Use only the buss bars from the kit that best matches the spacing and size of
the compressor motor terminal lugs on the specific chiller receiving the drive retrofit.
UCP2 Miscellaneous Hardware Kit Part # 506898920100 Component Parts List
Part Description Quantity
Trane X-Code
Part #
Mnemonic #
Pressure transducer -15 PSI to +35 PSI 1 X13790142010 TDR00272
5-Terminal Phoenix connector plug 1 X19220085040 CON00432
Transducer cable; 480 inches long 1 X19060306020 CAB00203
Executive Beige Paint; 10oz. aerosol can 1 X35020476020 PAI00297
TR1 Series VFD Variable Frequency Drive Installation and Operation Manual 1 TR1-SVX10A-EN
Shorting buss bar kit; contains 3 bars and 12 x 0.75-16 in. hex jam nuts 1 4532-1414-0100 BAR00177
Shorting buss bar kit; contains 3 bars and 12 x 0.75-16 in. hex jam nuts 1 4532-1414-0200 BAR00163
Shorting buss bar kit; contains 3 bars and 12 x 0.75-16 in. hex jam nuts 1 4532-1414-0300 BAR00176
Shorting buss bar kit; contains 3 bars and 12 x 1.12-12 in. hex jam nuts 1 4532-1414-0400 BAR00165

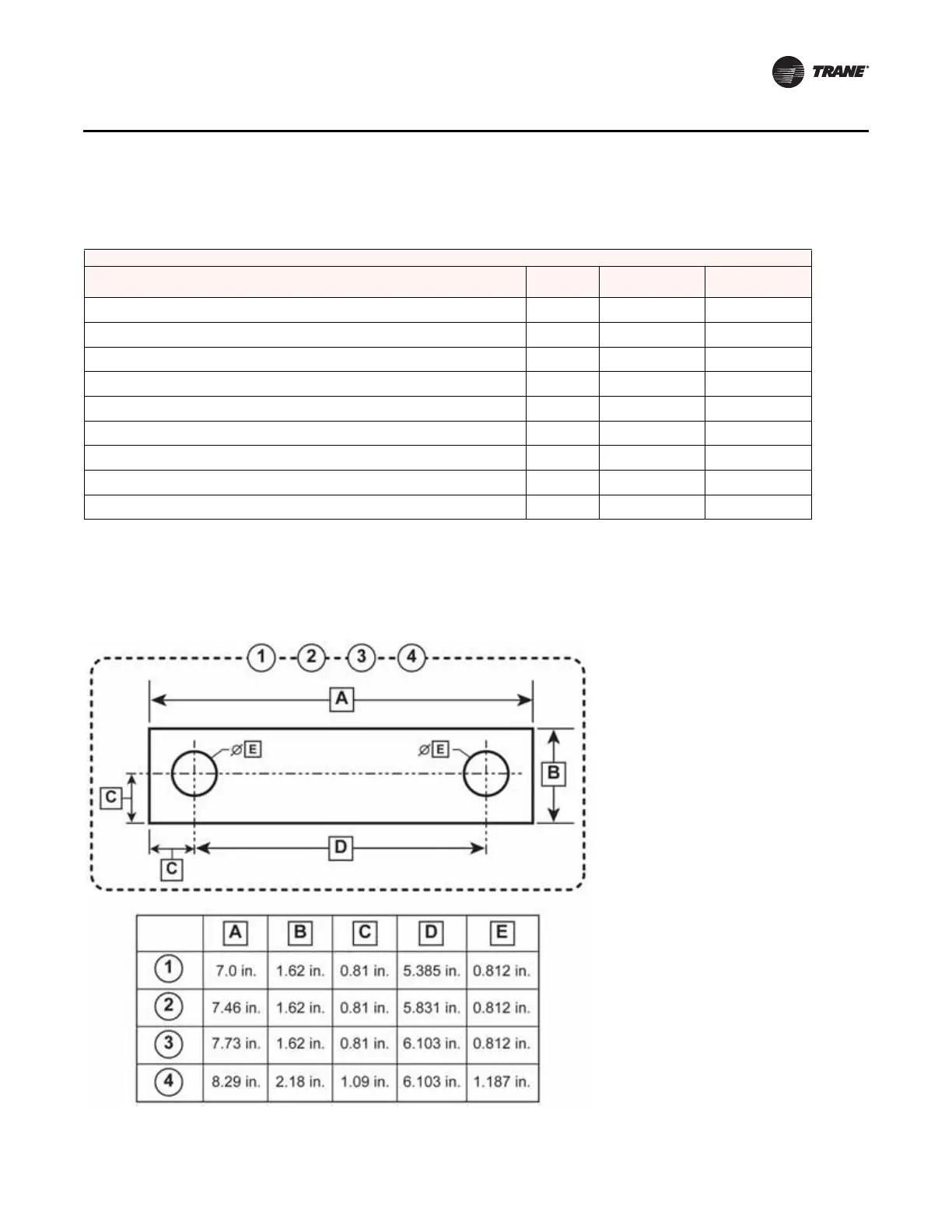

Figure 14. Buss bar specifications; UCP2 miscellaneous hardware packages
1.Example of shorting buss bars
contained in kit BAR0177
2.Example of shorting buss bars
contained in kit BAR0163
3.Example of shorting buss bars
contained in kit BAR00176
4.Example of shorting buss bars
contained in kit BAR00165
