AFDH Drive Package Specifications
Additional hardware shipped with CH531/AdaptiView AFDH packages
Table 16. CH531/AdaptiView miscellaneous hardware package contents
Note: For convenience, all four possible sizes of shorting buss bars that could be required for a
retrofit AFDH drive installation are included within the CH531/AdaptiView miscellaneous
hardware package kit. Use only the buss bars from the kit that best matches the spacing and
size of the compressor motor terminal lugs on the specific chiller receiving the drive retrofit.
CH531/AdaptiView Miscellaneous Hardware Kit Part # 506898930100 Component Parts List
Part Description Quantity
Trane X-Code
Part #
Mnemonic #
Low pressure transducer; (PX) 0 - 50 PSIA, with integral male global connector 1 X13790362070 TDR00355
Branching cable; Male to two Female, 39.37 inches long 1 X19051622020 CAB01147
Extension cable; Male to Female, 39.37 inches long 1 X19051623010 CAB01149
Executive Beige Paint; 10oz. aerosol can 1 X35020476020 PAI00297
TR1 Series VFD Variable Frequency Drive Installation and Operation Manual 1 TR1-SVX10A-EN
Shorting buss bar kit; contains 3 bars and 12 x 0.75-16 in. hex jam nuts 1 4532-1414-0100 BAR00177
Shorting buss bar kit; contains 3 bars and 12 x 0.75-16 in. hex jam nuts 1 4532-1414-0200 BAR00163
Shorting buss bar kit; contains 3 bars and 12 x 0.75-16 in. hex jam nuts 1 4532-1414-0300 BAR00176
Shorting buss bar kit; contains 3 bars and 12 x 1.12-12 in. hex jam nuts 1 4532-1414-0400 BAR00165

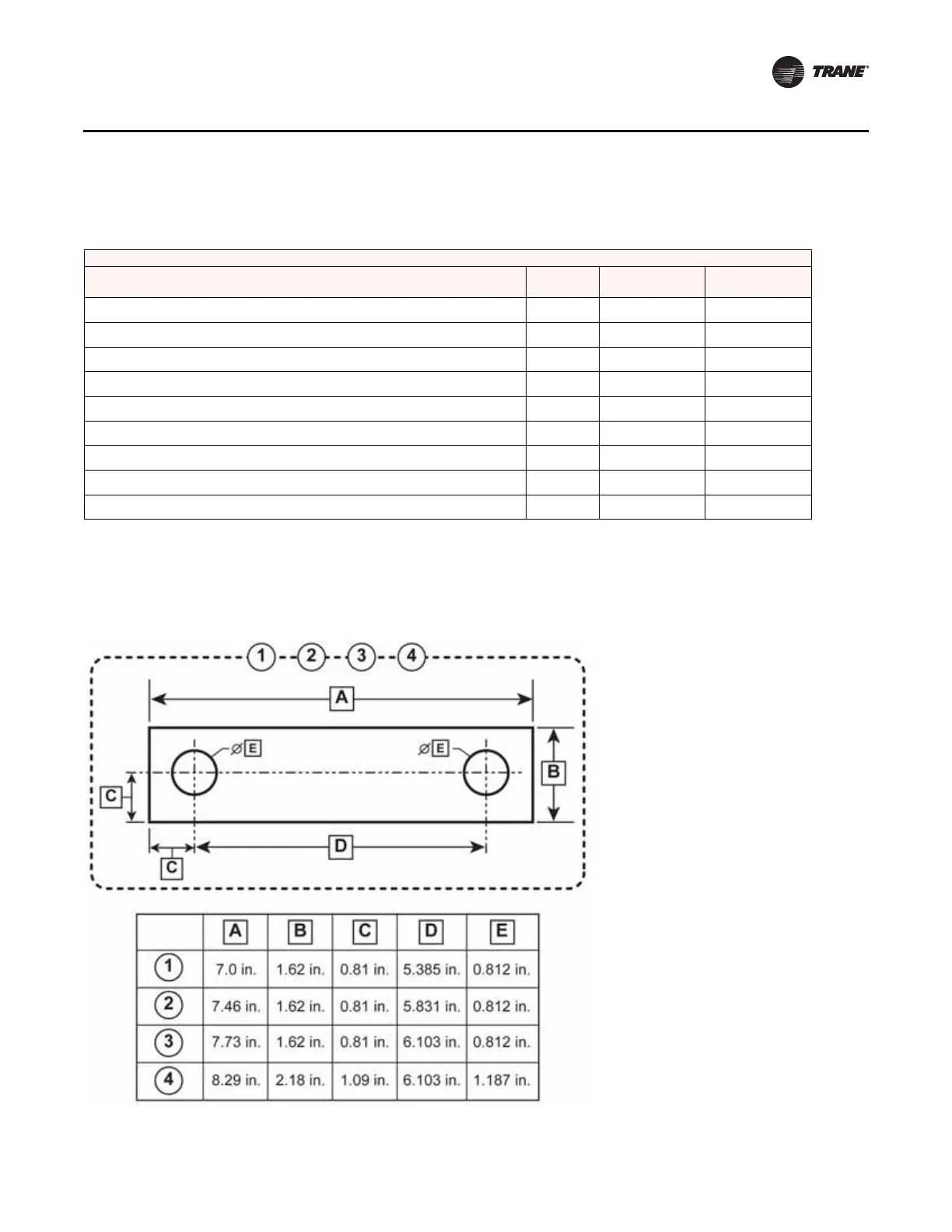

Figure 16. Buss bars specifications; CH531/AdaptiView hardware packages
1. Example of shorting buss bars
contained in kit BAR0177
2.Example of shorting buss bars
contained in kit BAR0163
3.Example of shorting buss bars
contained in kit BAR00176
4.Example of shorting buss bars
contained in kit BAR00165
