36 AFDH-SVN01A-EN
AFDH Drive Package Specifications
Other AFDH drive package accessories
Floor stand kit (D-Frame stand-mounted drive packages only)
• All D-Frame AFDH stand-mounted version drive packages will include a part number
50689890010 Floor Stand Kit.
NOTICE:
Incorrect application! Adapting a floor stand kit to an E-Frame AFDH!
When properly installed, the part number 50689890010 Floor Stand Kit is designed to safely
support the weight of D-Frame model AFDH drives only. The largest model D-Frame drive
weighs 872 pounds. The smallest model E-Frame drive weighs 1193 pounds. Any attempt to
adapt the 50689890010 Floor Stand Kit to an E-Frame model AFDH drive will be considered an
unsupported field modification to the drive unit design. Trane assumes no responsibility for the
equipment damage caused by a stress or fatigue failure of the floor stand kit due to any use
outside of its intended application.

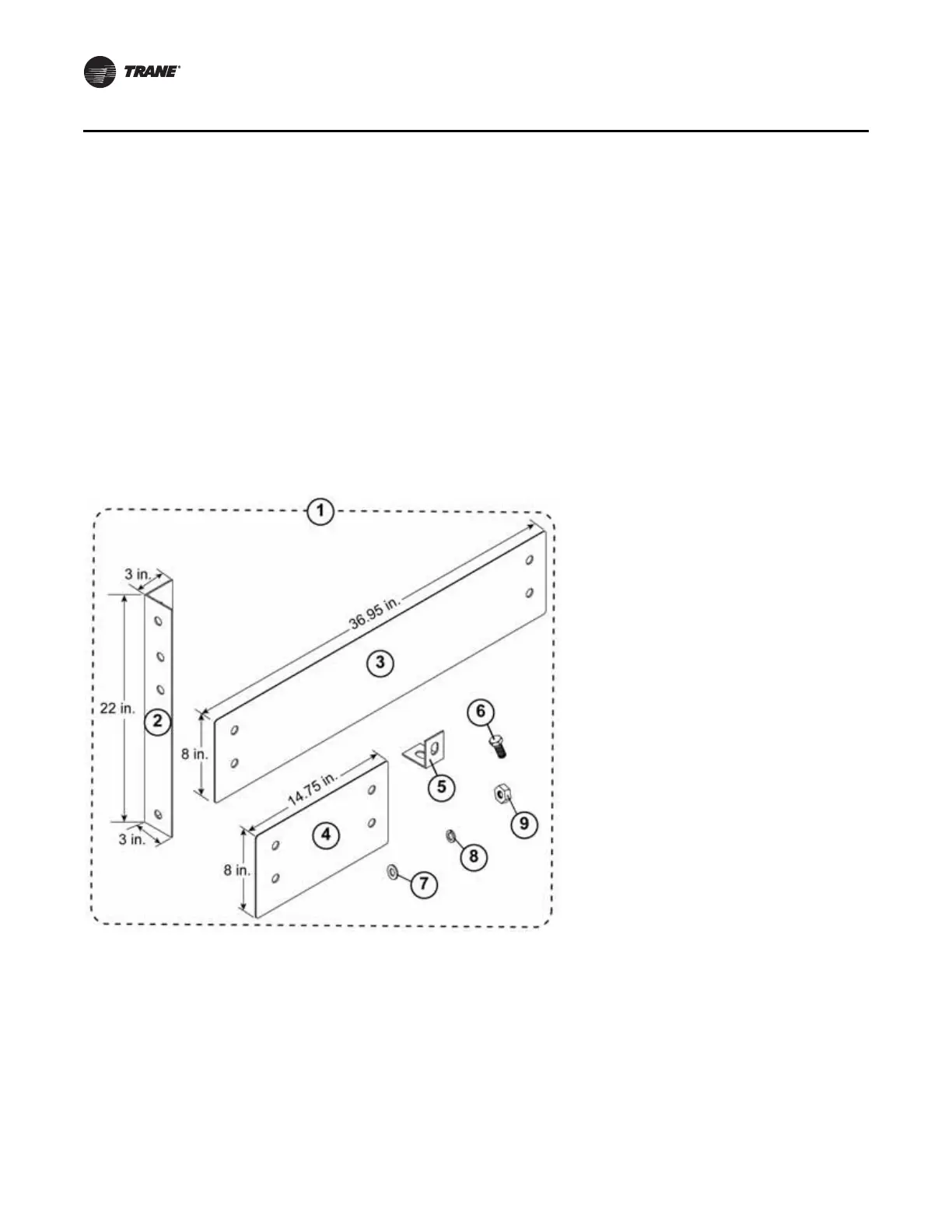

Figure 17. Floor stand kit parts for stand-mounted D-Frame AFDH
1. Floor stand kit; part number 056898900100
2. Support leg (quantity = 4)
3. Front/back panel (quantity = 2)
4. Side panel (quantity = 2)
5. Slotted angle bracket (quantity = 4)
6.Hex head cap screw; 0.50-13 UNC x 1.50
inches long (quantity = 20)
7. Flat washer; 0.531 in. ID (quantity = 40)
8. Helical spring lock washer; 0.531 in. ID
(quantity = 20)
9. Hex nut; 0.50-13 UNC (quantity = 20)
