32 AFDH-SVN01A-EN
AFDH Drive Package Specifications
Control box components for UCP2 version AFDH
Table 13. UCP2 control box component part numbers

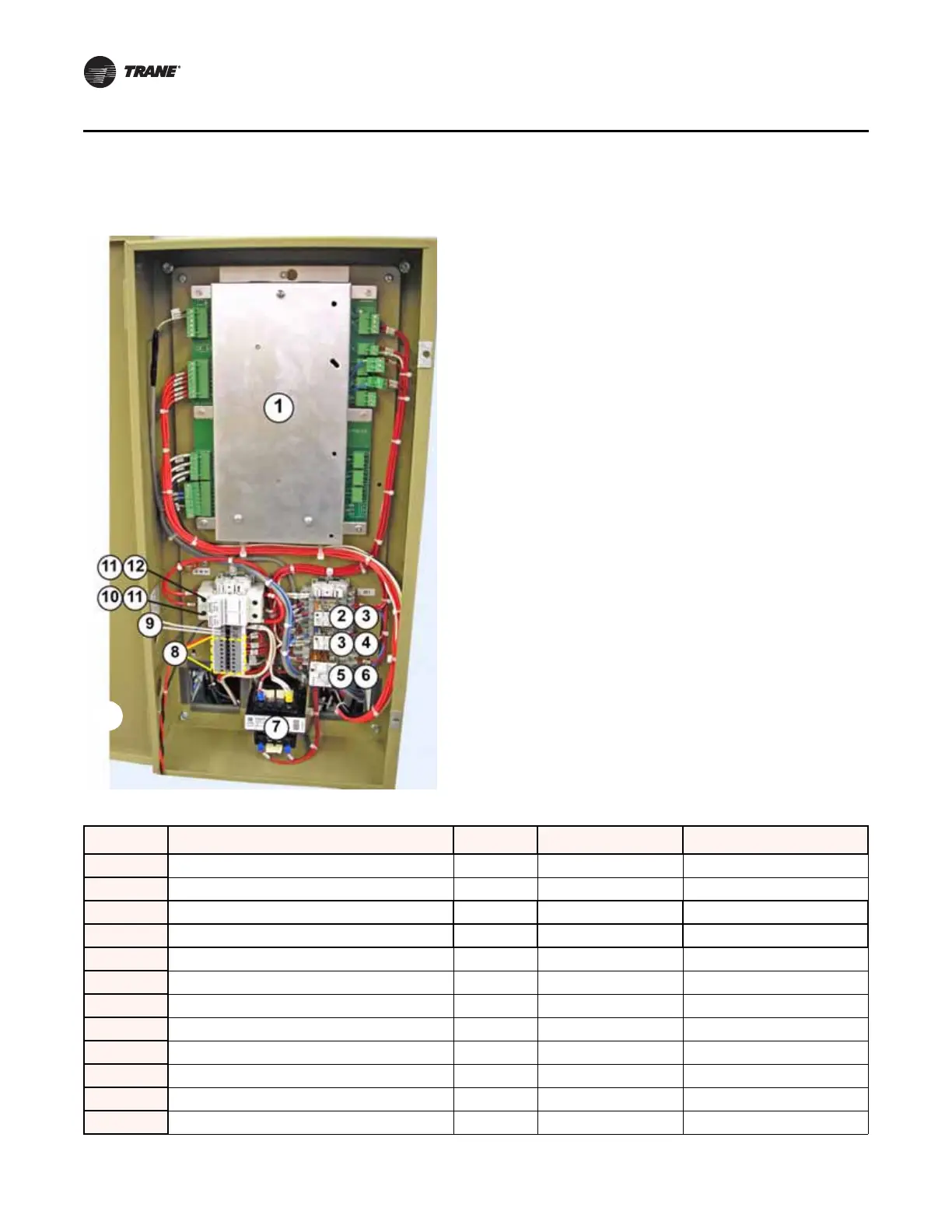

Figure 13. D and E-Frame AFDH UCP2 control box components
1.Starter module 2U1
2.Start relay (2K1) 120 VAC
3.Relay socket (for relay 2K1 or 2K2)
4.Run relay (2K2) 24 VDC
5.Relay (2K12) 120 VAC
6.Relay socket for 2K12
7.Transformer 2T4 - 120/24 VAC, 50 VA, Class II
8.Terminal blocks; 30 amp
9.Terminal blocks; 65 amp
10.Fuse (2F22) 2 amp
11.Fuse holder (for fuse 2F22 or 2F4)
12.Fuse (2F4) 30 amp
Figure 13
Callout
Part Description Quantity Trane X-Code Part # Mnemonic # (if available)
1 UCP2 Starter module 2U1 1 X13650453220 MOD01232
2 Start relay (2K1) 120 VAC 1 X13260647010 RLY03214
3 Relay socket (for relay 2K1 or 2K2) 2 X13260650010
4 Run relay (2K2) 24 VDC 1 X13260648010 RLY03215
5 Relay (2K12) 120 VAC 1 X13260649010 RLY03216
6 Socket for relay 2K12 1 X13260651010
7 Transformer (2T4) 120/24 VAC, 50 VA, Class II 1 X13550849010 TRR01065
8 Terminal blocks, 30 amp 8 X13491325010
9 Terminal blocks, 65 amp 2 X13491326010
10 Fuse; 2 amp (2F22) 1 X13040074060 FUS00674
11 Fuse holder (for fuse 2F22 or 2F4) 2 X13110790010 HLD00314
12 Fuse; 30 amp 1 X13040074110 FUS01557
