34 AFDH-SVN01A-EN
AFDH Drive Package Specifications
Control box components for CH531/AdaptiView version AFDH
Table 15. CH531/AdaptiView control box component part numbers

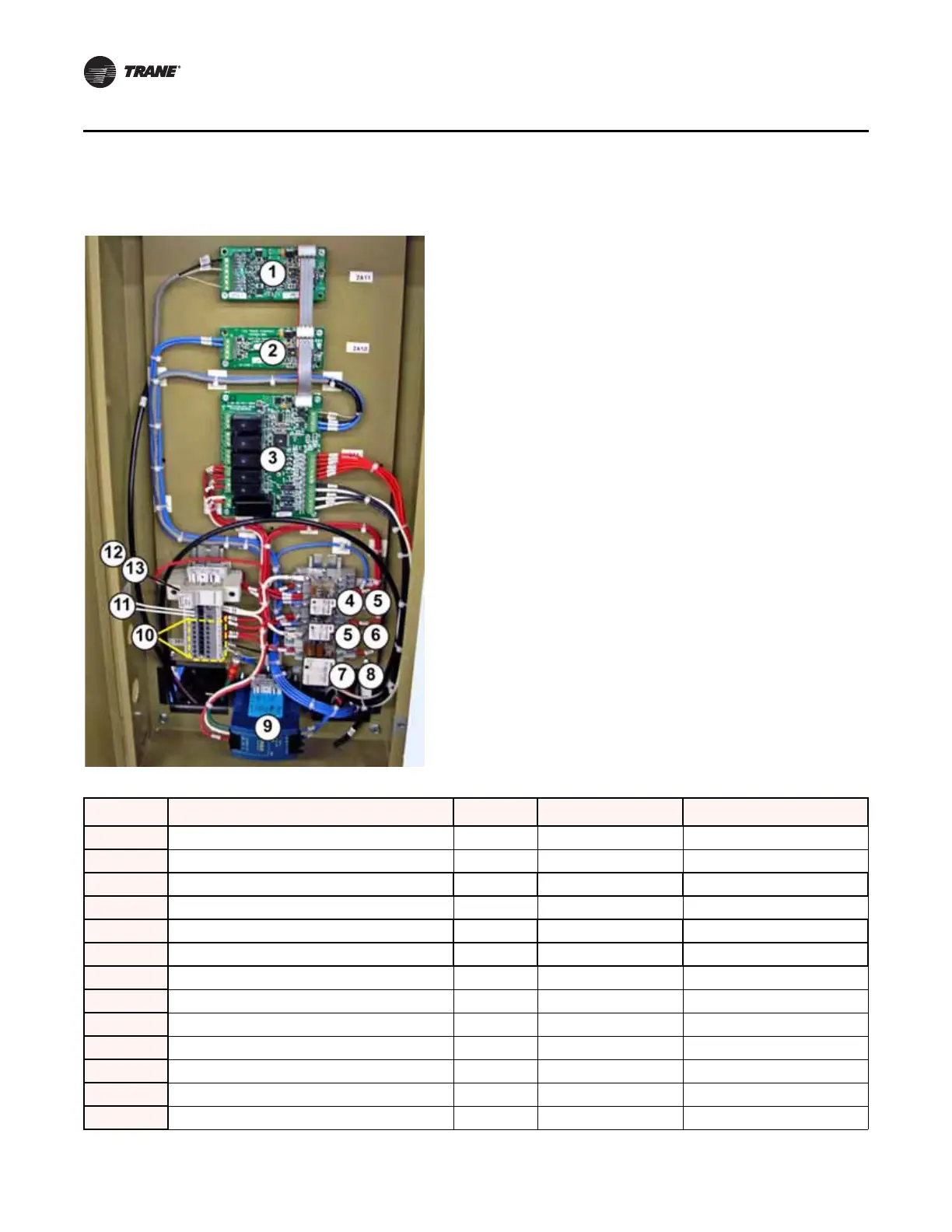

Figure 15. D and E-Frame AFDH CH531/AdaptiView control box components
1.Dual analog I/O board (2A11)
2.Dual low voltage binary input board (2A10)
3.Starter module (2A1)
4.Start relay (2K1) 120 VAC
5.Relay socket (for relay 2K1 or 2K2)
6.Run relay (2K2) 24 VDC
7.Relay (2K12) 120 VAC
8.Relay socket for 2K12
9.Power supply (2A3)
10.Terminal blocks; 30 amp
11.Terminal blocks; 65 amp
12.Fuse holder (for fuse 2F22)
13.Fuse (2F22) 2 amp
Figure 15
Callout
Part Description Quantity Trane X-Code Part # Mnemonic # (if available)
1 Dual analog I/O board (2A11) 1 X13650731050 BRD02945
2 Dual low voltage binary input board (2A10) 1 X13650728050 BRD02942
3 Starter module (2A1) 1 X13650741120 BRD02950
4 Start relay (2K1) 120 VAC 1 X13260647010 RLY03214
5 Relay socket (for relay 2K1 or 2K2) 2 X13260650010
6 Run relay (2K2) 24 VDC 1 X13260648010 RLY03215
7 Relay (2K12) 120 VAC 1 X13260649010 RLY03216
8 Socket for relay 2K12 1 X13260651010
9 Power supply (2A3) DC 24-28V, 30W 1 X13550850010 PWR00147
10 Terminal blocks, 30 amp 8 X13491325010
11 Terminal blocks, 65 amp 2 X13491326010
12 Fuse holder (for fuse 2F22) 2 X13110790010 HLD00314
13 Fuse; 2 amp (2F22) 1 X13040074060 FUS00674
