Dimensions and Weights
14 UNT-SVX041D-EN
Units Without Risers
Table 2. Full dimensions
Size
Single Supply Double Supply Top Supply
E F G M NA B C D A B C D A B C D
300 14 8 5 1.5 14 6 6 1.5 14 10 3.5 1.5 16.15 17 17 7 1.88
400 14 12 3 1.5 14 6 6 1.5 14 10 3.5 1.5 16.15 17 17 7 1.88
600 17 13 3 1.5 17 7 6 1.5 16 12 4 2 19.15 20 20 8.5 3.38
800 17 13 3 1.5 17 7 6 1.5 16 12 4 2 19.15 20 20 8.5 3.38
1000 -- -- -- -- 20 11 4 2 18 18 3 3 23.15 24 24 10.5 5.38
1200 -- -- -- -- 20 11 4 2 18 18 3 3 23.15 24 24 10.5 5.38

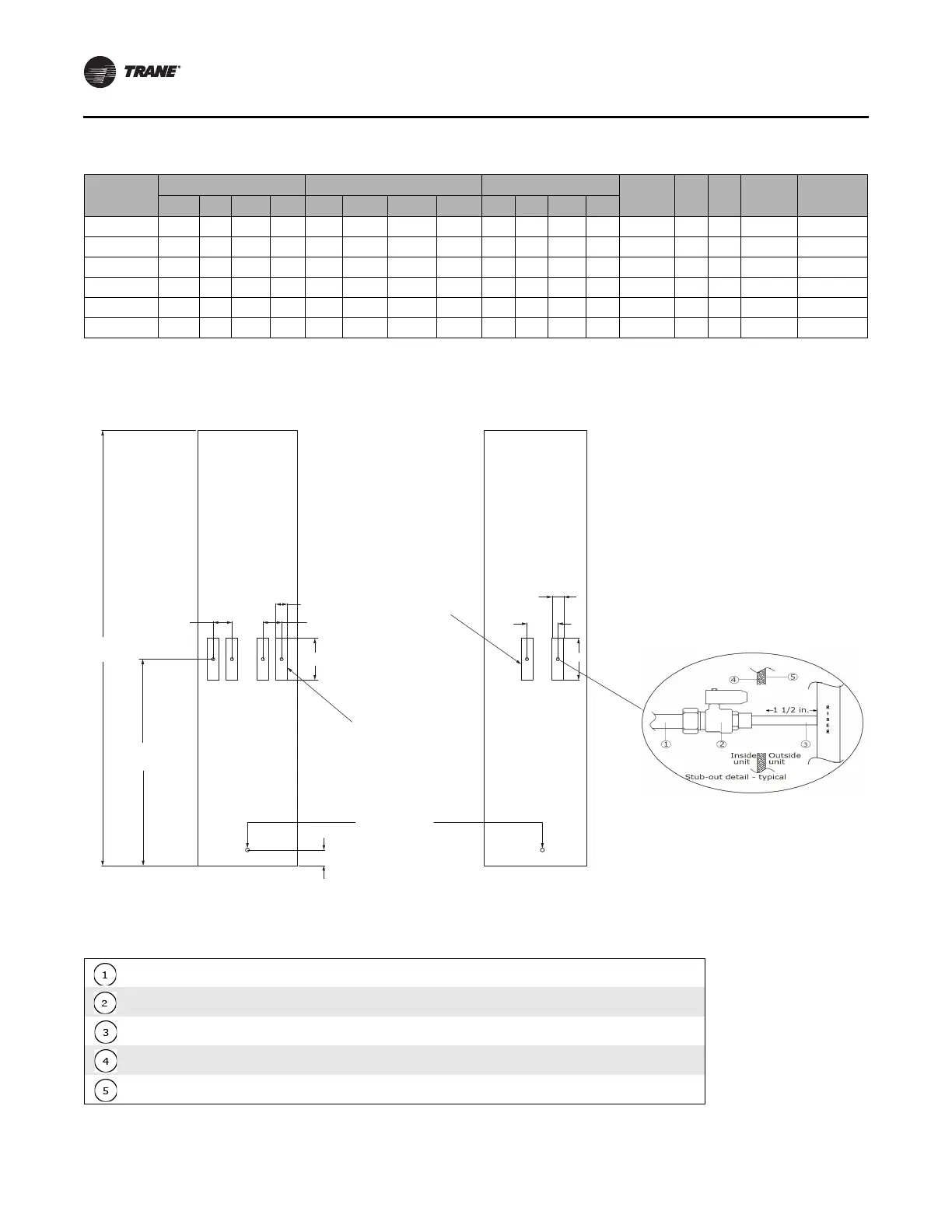

Figure 3. Units without risers
CWS
CWR
HWS
HWR
4.13
2.25
C
C
4-pipe secondary unit
with connection
2-pipe secondary unit
with connection
Supply and return
connections
1/2 in. Copper pipe
Supply and return
connections
1/2 in. Copper pipe
Condensate
connection
7/8 in. I.D. hose
CWS
CWR
86.00
40.80
3.10
4.13
6.00
6.00
8.25
2.31
8.25
BackBack
Table 3. Units without risers - 2-pipe and 4-pipe secondary units callouts
1/2-inch supply and return coil branch stainless steel braided hose
Ball valve (shut-off valve) with threaded connection
1/2-inch or 3/4-inch copper tail piece soldered into valve body at factory
Insulation lining on interior surface of fan coil cabinet
Fan coil cabinet
