Trane FCV User Manual

Installation - Electrical
UNT-SVX041D-EN 29
Power and Control Cable Entry
Points

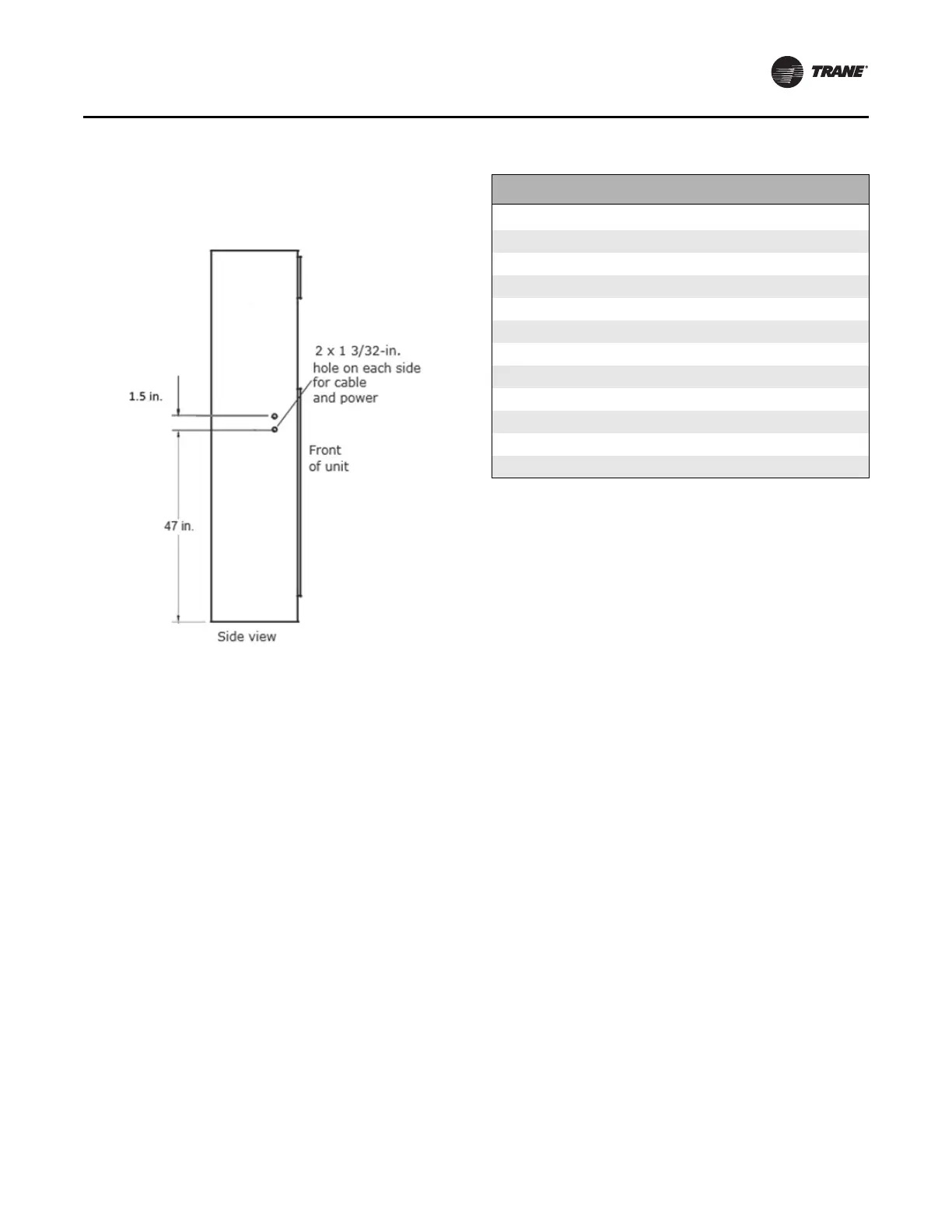

Figure 17. Power and control cable entry points
Table 15. Available control options
Letter
/Digit Description
0
Control by others, installed by others, terminal strip provided.
A
Setpoint Dial Zone Sensor (3 inch)
B
Setpoint Dial Zone Sensor w/Comm (3 inch)
C
Setpoint Dial, On/Cancel w/Comm (3 inch)
D
Digital Zone Sensor (3 inch)
E
Telkonet
®
(3 inch)
H
Setpoint Dial Zone Sensor (12 inch)
J
Setpoint Dial Zone Sensor w/Comm (12 inch)
K
Setpoint Dial On/Cancel w/Comm (12 inch)
L
Digital Zone Sensor (12 inch)
M
Telkonet
®
(12 inch)
Q
Air-Fi
®
Wireless Digital Display Sensor
