Trane LonWorks TR200 User Manual

VSD 6010 Profile
Introduction
The Variable Speed Drive 6010 profile is a LonMark standardized functional profile.
It describes how to control a variable speed adjustable frequency drive.
For example, an air handling unit controller that sends messages to facilitate control of the start/stop and speed
reference of the VSD. The VSD will deliver messages such as the actual adjustable frequency drive speed and
output current to the controller, operating interfaces and energy management systems.

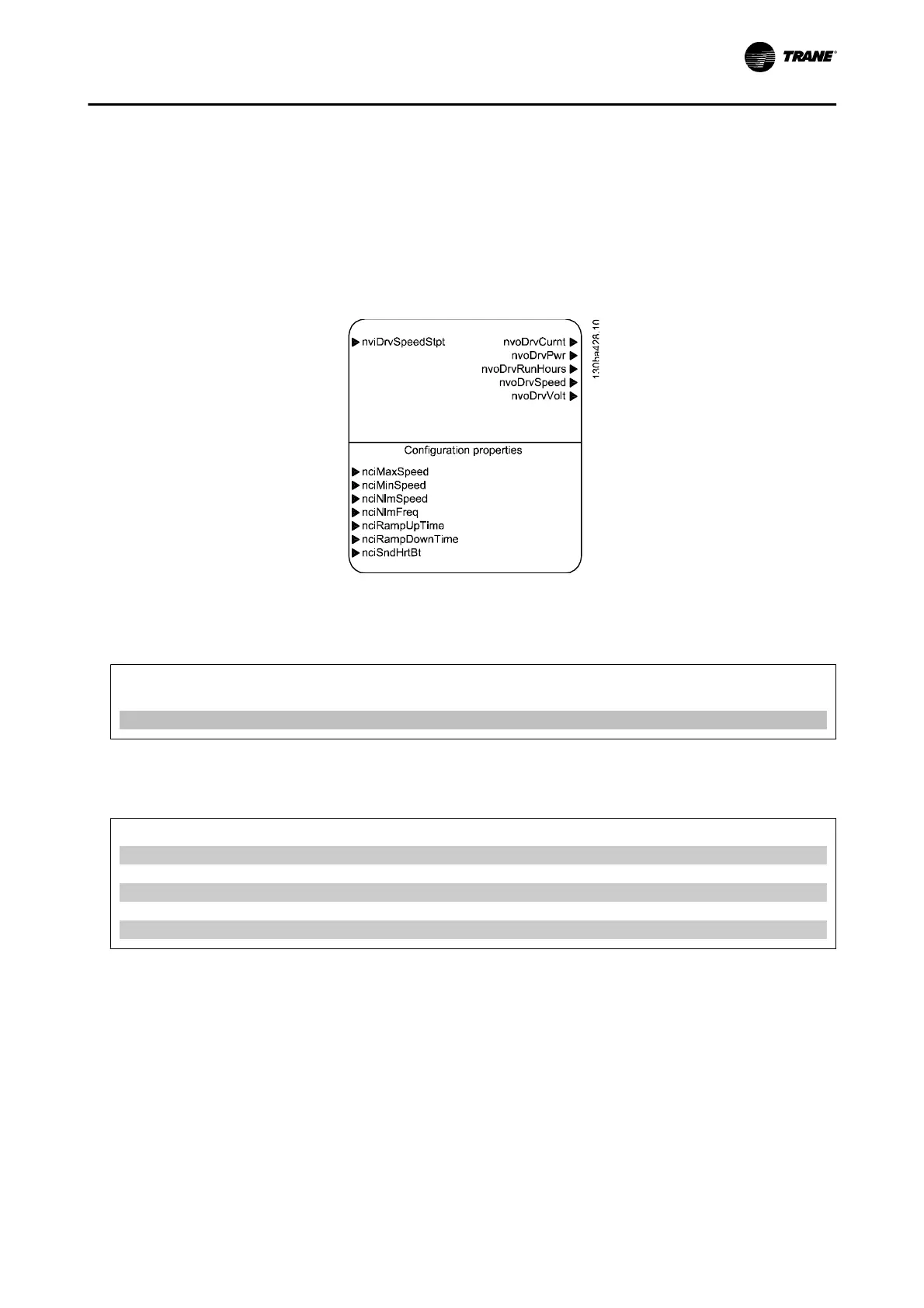

Input Variables
Variable function Variable name SNVT type Profile
TR200 parame-
ter
Drive speed setpoint nviDrvSpeedStpt SNVT_switch VSD 6010 CTW / Reference
Output Variables
Variable function Variable name SNVT type Profile TR200 parameter
Drive speed nvoDrvSpeed SNVT_lev_percent VSD 6010 16-05
Output current nvoDrvCurnt SNVT_amp VSD 6010 16-14
Output voltage nvoDrvVolt SNVT_volt VSD 6010 16-12
Output power nvoDrvPwr SNVT_power_kilo VSD 6010 16-10
Running hours nvoDrvRunHours SNVT_time_hour VSD 6010 15-01
Configuration of the system
TR200 LonWorks 5-17
