Instruments
43

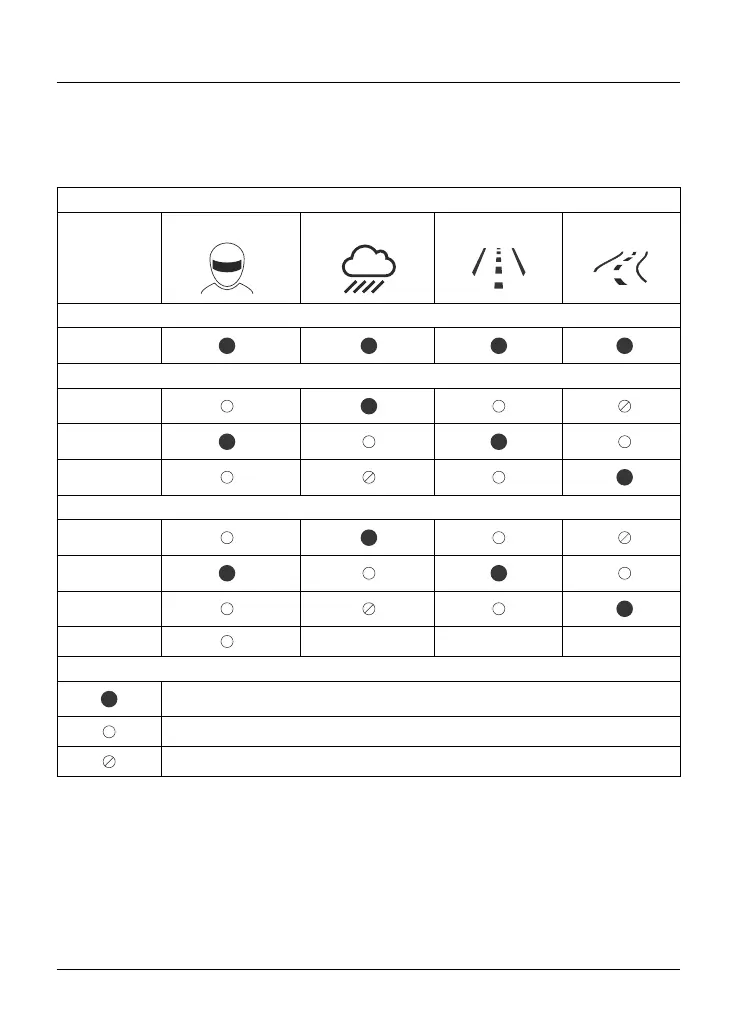

Riding Mode Configuration
Riding modes are available depending on the motorcycle model’s specification. Refer
to the following table for the ABS, MAP and TC options a
vailable for each riding
mode.
Riding Mode
Rider
Rain
Road
Sport
Anti-lock Braking System (ABS)
Road
MAP (Throttle Response)
Rain
Road
Sport
T
raction Control (TC)
Rain
Road
Sport
Off
Via Menu
Via Menu
Via Menu
Key
Standard (F
actor
y Default Setting)
Selectable Option
Option Not A
vailable
