Triumph Thruxton User Manual

Maintenance And Adjustment
109
Models with Bar End Mirrors
Warning
Incorrect adjustment of the bar end
mirrors may cause the mirror arm to
contact the fuel tank, brake or clutch
levers or other parts of the motorcycle.
This will restrict brake or clutch lever
operation or restrict steering
movement, resulting in loss of
motorcycle control and an accident.
Adjust the mirrors as required to make
sure they do not contact any part of
the motorcycle. After adjustment,
move the handlebar to the left and
right full lock while checking that the
mirrors do not contact the fuel tank,
brake or clutch levers or other parts of
the motorcycle.
Caution
Incorrect adjustment of the bar end
mirrors may cause the mirror arm to
contact the fuel tank, brake or clutch
levers or other parts of the motorcycle.
This will result in damage to the fuel
tank, brake or clutch levers or other
parts of the motorcycle.
Adjust the mirrors as required to make
sure they do not contact any part of
the motorcycle. After adjustment,
move the handlebar to the left and
right full lock while checking that the
mirrors do not contact the fuel tank,
brake or clutch levers or other parts of
the motorcycle.

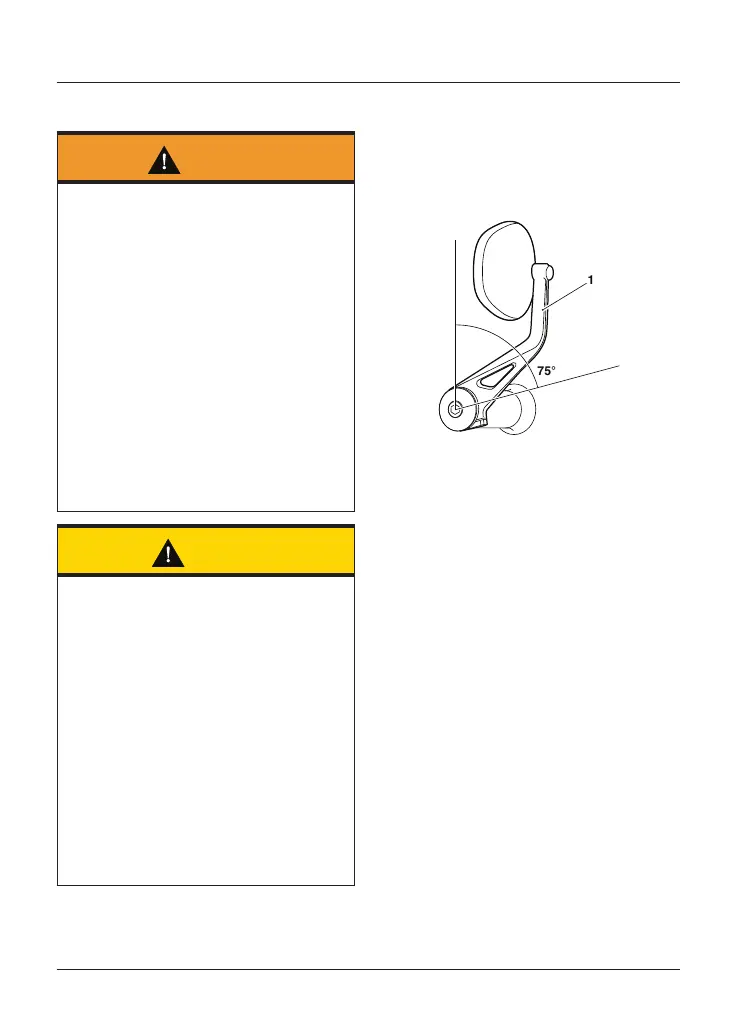

The bar end mirrors will be set by your
authorised Triumph dealer and will not
normally require any adjustment. Should
adjustment be necessary, do not rotate
the mirror beyond 75°, measured from
the vertical section of the mirror arm.
75°
1
1. Mirror arm vertical section

Triumph Thruxton Specifications

General

Displacement	1200 cc
Transmission	6-speed
Bore x Stroke	97.6 mm x 80 mm
Max Torque	112 Nm @ 4, 950 rpm
Fuel System	Fuel injection
Final Drive	Chain
Clutch	Wet, multi-plate
Frame	Tubular steel
Rear Suspension	Twin shocks
Front Brakes	Dual 310mm discs, 2-piston calipers
Rear Brakes	Single 220mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17-inch
Length	2100 mm (82.7 in)
Width (Handlebars)	745 mm (29.3 in)
Height	1, 030mm
Seat Height	810mm
Wheelbase	1, 415mm
Rake	22.8 º
Fuel Capacity	14.5 liters
Weight (Dry)	203kg
Weight (Wet)	223kg
Exhaust	2-into-2
