General Information
60

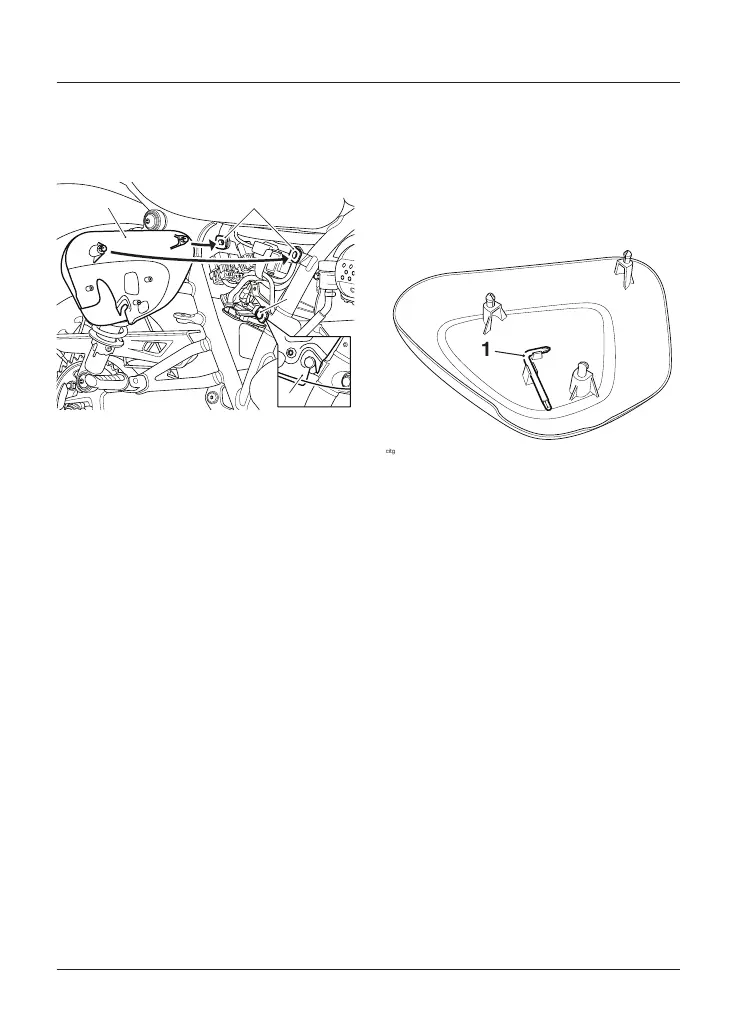

Right Hand Side Panel
The right hand side panel can be
removed to gain access to the rear
brake fluid reservoir.
1
3
4
2
1. Side panel (right hand shown)
2. Upper grommets
3. Lower grommets
4. Side panel attached to lower grommet
Note:
• The exhaust system is shown
removed for clarity.
To remove the right hand side panel:
Grasp the panel firmly at the top and pull
the panel away from the motorcycle until
it is free from the two top retaining
grommets, leaving the grommets in place.
Lift up the panel to detach it from the
lower grommet.
To refit the right hand side panel:
Position the side panel on to the lower
grommet.
Make sure that the slot in the panel is
fully engaged with the lower grommet.
Position the two locating dowels to the
upper grommets, then press firmly to
secure the panel.
Finally, grasp the panel and make sure
that it is fully retained.
Tool Kit and Owner’s
Handbook
Tool Kit
The tool kit consists of an adjustment
tool.
1. Adjustment tool
Street Twin, Street Cup, Thruxton,
Thruxton R, Bonneville T120 and
Bonneville T100
The adjustment tool is attached to the
inside of the right hand side panel.
Street Scrambler
The adjustment tool is attached to the
inside of the left hand side panel.
Thruxton R
There are two C‑spanners located under
the seat.
