General Information
37

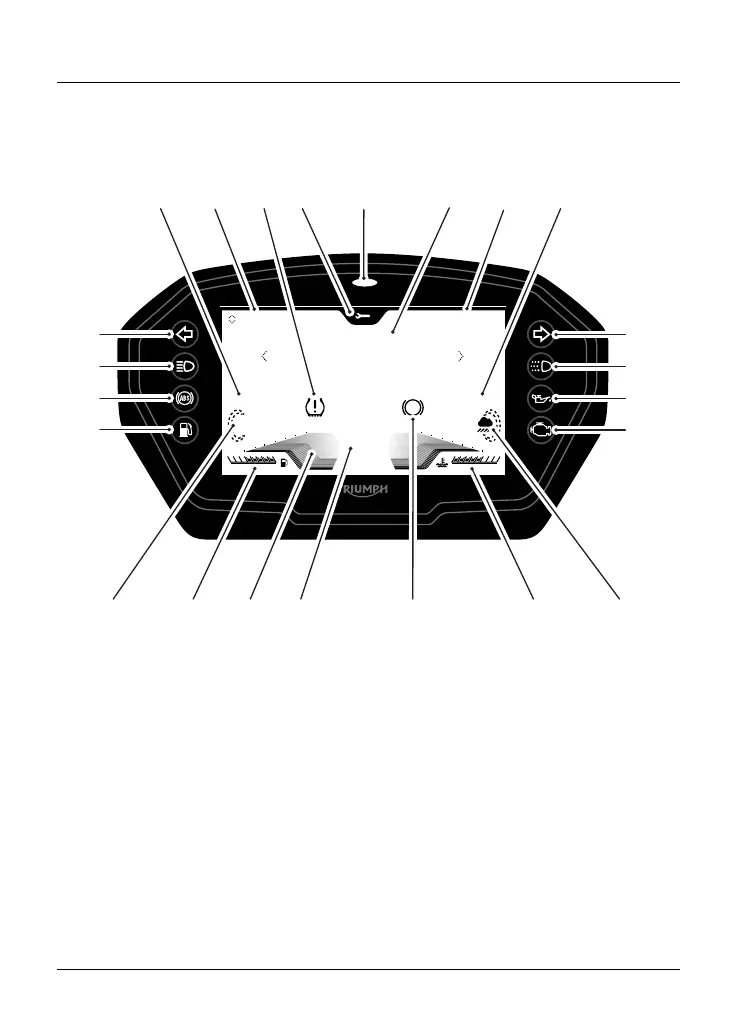

Instrument Panel Layout
Tiger 850 Sport models are equipped with a full color Thin Film Transistor (TFT)
instrument display with a 5 inch (12.7 cm) screen.
3
0 0
2 2
4 4
6 6
8 8
10 10
12 12
32
FE CH
21.5 10:55
AM
C
o
x1000rpm
SET 100
9
ABS
+
MPH
SERVICE
Recommended by
03/2020
or in
460 km
ODO: 0001234 mi
23
22
21
9
10
11
12
14
1
34
13
5
6
8
1516171819
20
2
7
1. Ambient air temperature
2. Information tray title
3. Warning light location–TPMS warning
light shown
4. Information tray icon
5. Alarm/immobilizer status indicator light
(alarm is an accessory kit)
6. Information tray area
7. Odometer
8. Clock
9. Right hand turn signal and hazard
warning light
10. Daytime Running Light (DRL) (if equipped)
11. Oil pressure warning light
12. Engine management Malfunction Indicator
Light (MIL)
13. Current riding mode
14. Coolant temperature gage
15. Warning light location–ABS warning light
shown
16. Speedometer
1 7. Tachometer
18. Fuel gage
19. Gear position
20. Fuel level low warning light
21. ABS warning light
22. High beam warning light
23. Left hand turn signal and hazard warning
light
