General Information
46
The arrow to access to the information
trays are inactive and it is not possible
to change the information tray until
the warning message has been
acknowledged or rectified.
If more than one message is displayed
then the left/right arrow becomes
active, push the joystick left/right to
show other messages.
N
0 0
2 2
4 4
6 6
8 8
10 10
12 12
00
SENSOR SIGNAL REAR TYRE
FE
21.5 10:55
AM
C
o
x1000rpm
Check Manual
SET 100
9
ABS
+
MPH
WARNING

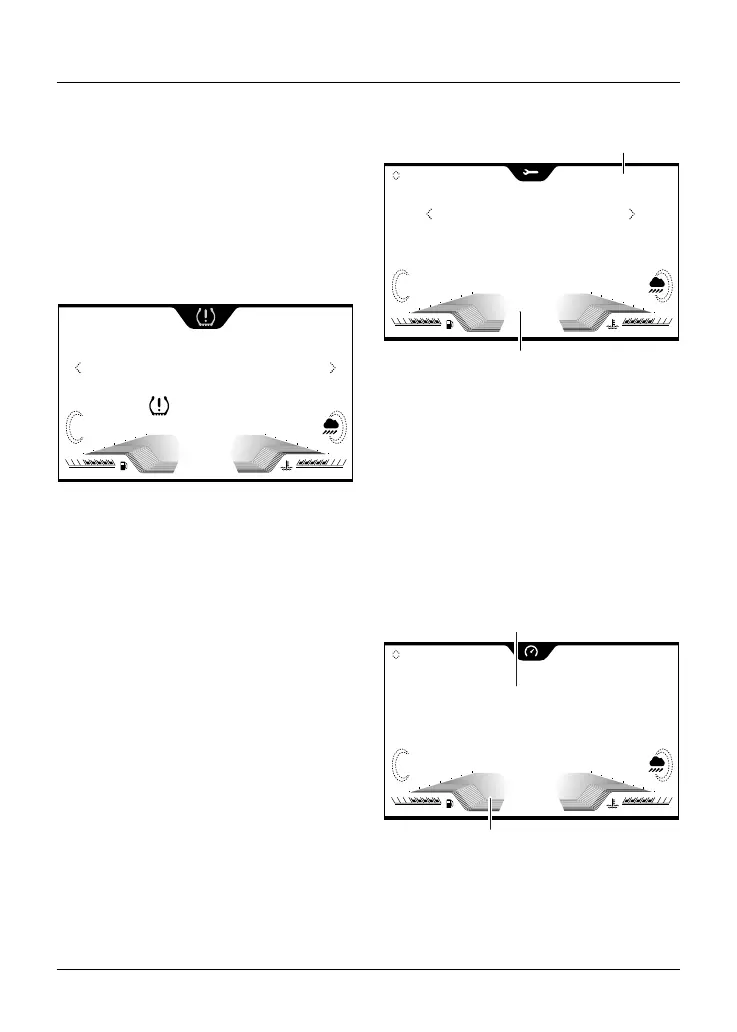

Sensor Signal Warning Shown
Odometer and Speedometer
The odometer shows the total distance
that the motorcycle has traveled. The
odometer is only shown in the Service
information tray.
The speedometer indicates the road
speed of the motorcycle.
3
0 0
2 2
4 4
6 6
8 8
10 10
12 12
52
FE
21.5 10:55
AM
C
o
x1000rpm
SET 100
9
ABS
+
MPH
SERVICE
Recommended by
03/2020
or in
460 miles
ODO: 0001234 mi
1. Odometer
2. Speedometer
Tachometer
The tachometer shows the engine
speed in revolutions per minute–rpm
(r/min). At the end of the tachometer
range there is the red zone. Engine
speeds in the red zone are above
maximum recommended engine speed
and are also above the range for best
performance.
3
0 0
2 2
4 4
6 6
8 8
10 10
12 12
6400
52
FE
21.5 10:55
AM
C
o
x1000rpm
RPM
SET 100
9
ABS
+
MPH
TACHOMETER
1. Engine speed (rpm) shown in a numerical
format
2. Engine speed (rpm) shown in a graph
format
