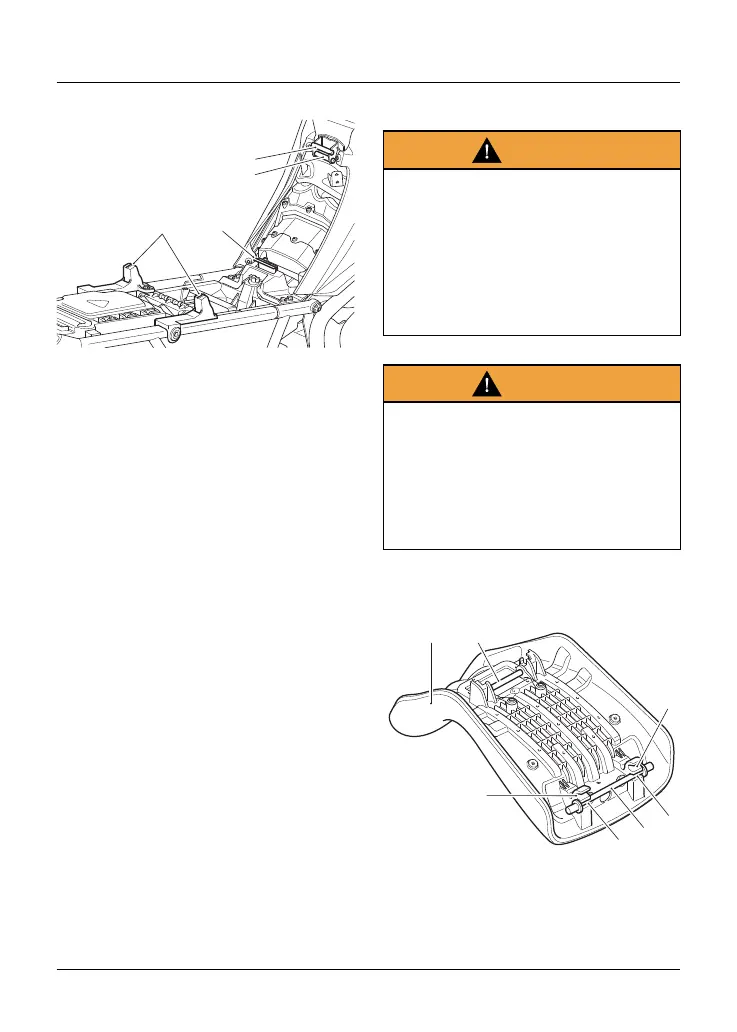

Rider's Seat Installation
2
34
1
1. Upper bar
2. Lower bar
3. Seat bridge
4. Seat supports
To install the seat:
• Reconnect the heated seat’s
electrical connector (if equipped).
• Position the seat tongue under the
upper bar on the fuel tank for the
high seat position, or under the
lower bar on the fuel tank for the
low seat position (see page 87).
• Engage the seat's front rail into the
seat bridge at the rear of the fuel
tank and lower the rear rail onto the
seat supports.
• Push down firmly on the rear of the
seat and hold.
• Reinstall the passenger seat (see
page 85).
Rider's Seat Height Adjustment
Warning
Always adjust both seat height
adjusters. Adjusting only one height
adjuster may prevent correct
installation of the seat.
Riding the motorcycle with an
incorrectly mounted seat may cause
loss of motorcycle control and an
accident.
Warning
After adjusting the seat height,
operate the motorcycle in an area free
from traffic to gain familiarity with the
new seat position.
Riding the motorcycle with the seat in
an unfamiliar position may cause loss
of motorcycle control and an accident.
The rider's seat is adjustable for height
by approximately 0.8 in (20 mm).
5
5
4
3
21
1. Rider's seat
2. Front seat height adjuster
3. Rear seat height adjuster
4. Low seat height position (rear shown)
5. High seat height position (rear shown)
