TTP-246M/344M Bar Code Printer
Service Manual

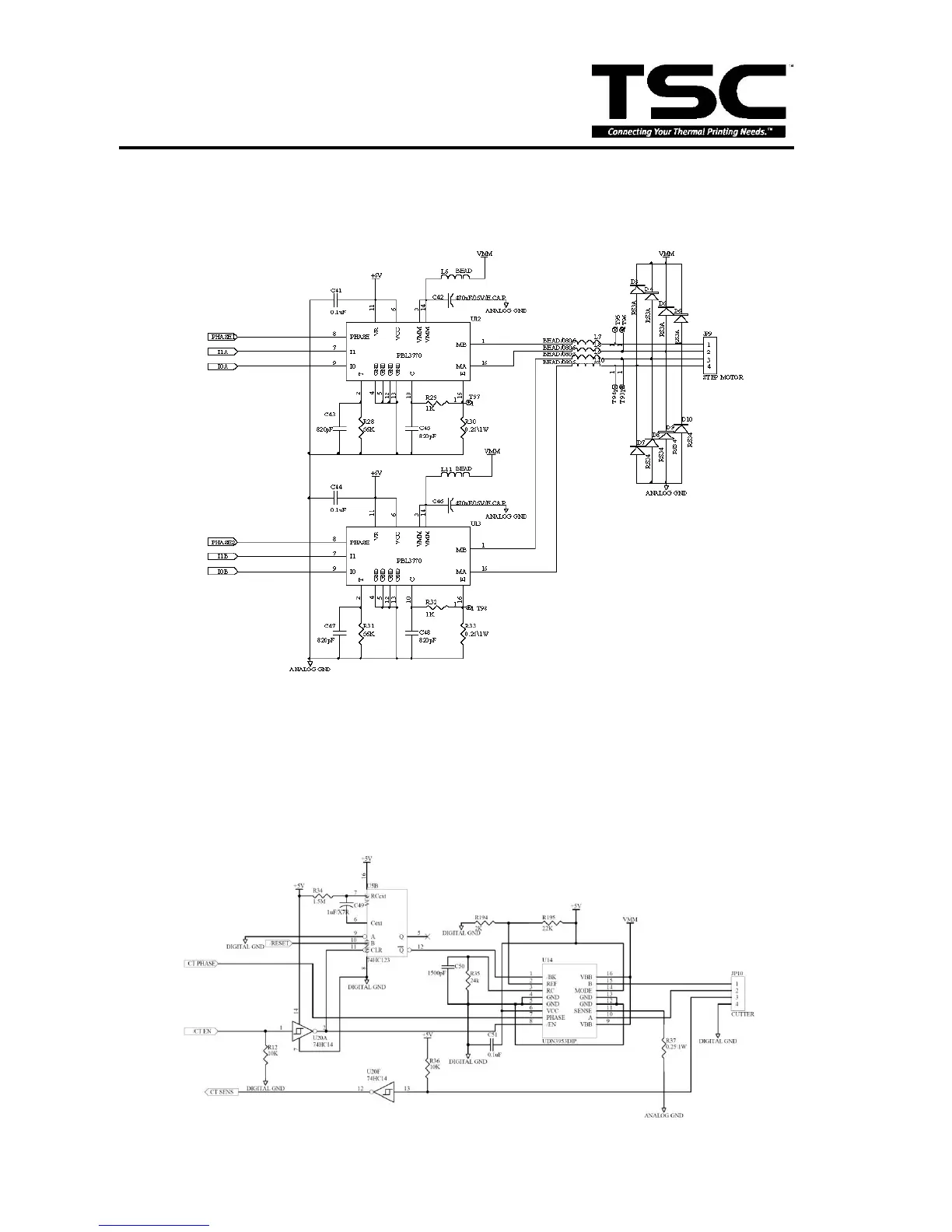

3.7 Motor Circuit
This is motor circuit. U12 and U13 are drivers to control the bipolar stepping motor by using
full step control method
3.8 Cutter Circuit
