TTP-246M/344M Bar Code Printer
Service Manual
4. Note: In case if the screws were stripped, do not fix new print head with used
screws.
5. Reassemble in the reverse procedures after replacing.

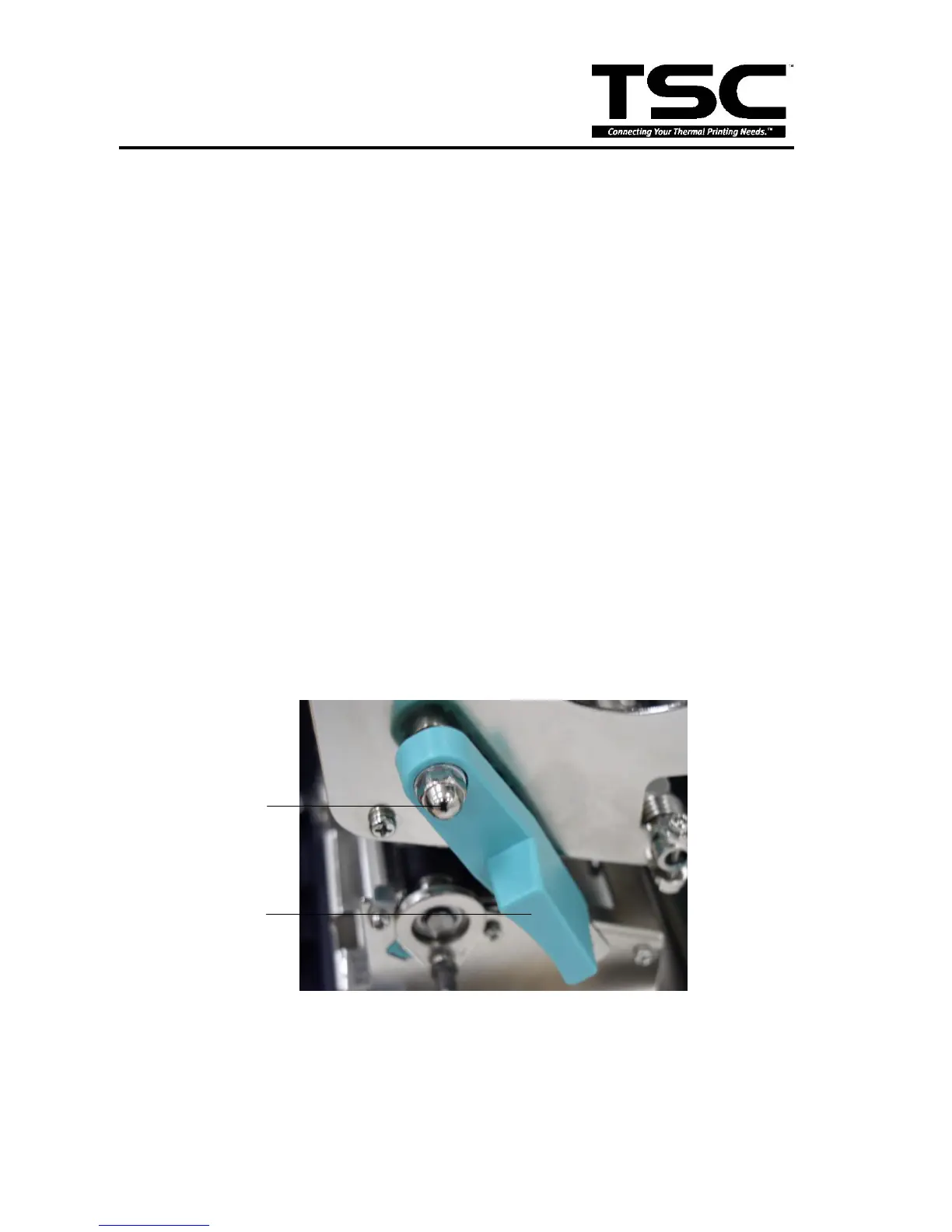

4.11 Replacing Print Head Adjustment Knob
1. Lift the print head up.
2. Remove the Nut from the Print Head Lift Lever. Then remove the Print Head Lift
Lever.
3. Remove the 2 screws these are on the TPH switch plate.
Nut
Print Head
Lift Lever
