TTP-246M/344M Bar Code Printer
Service Manual

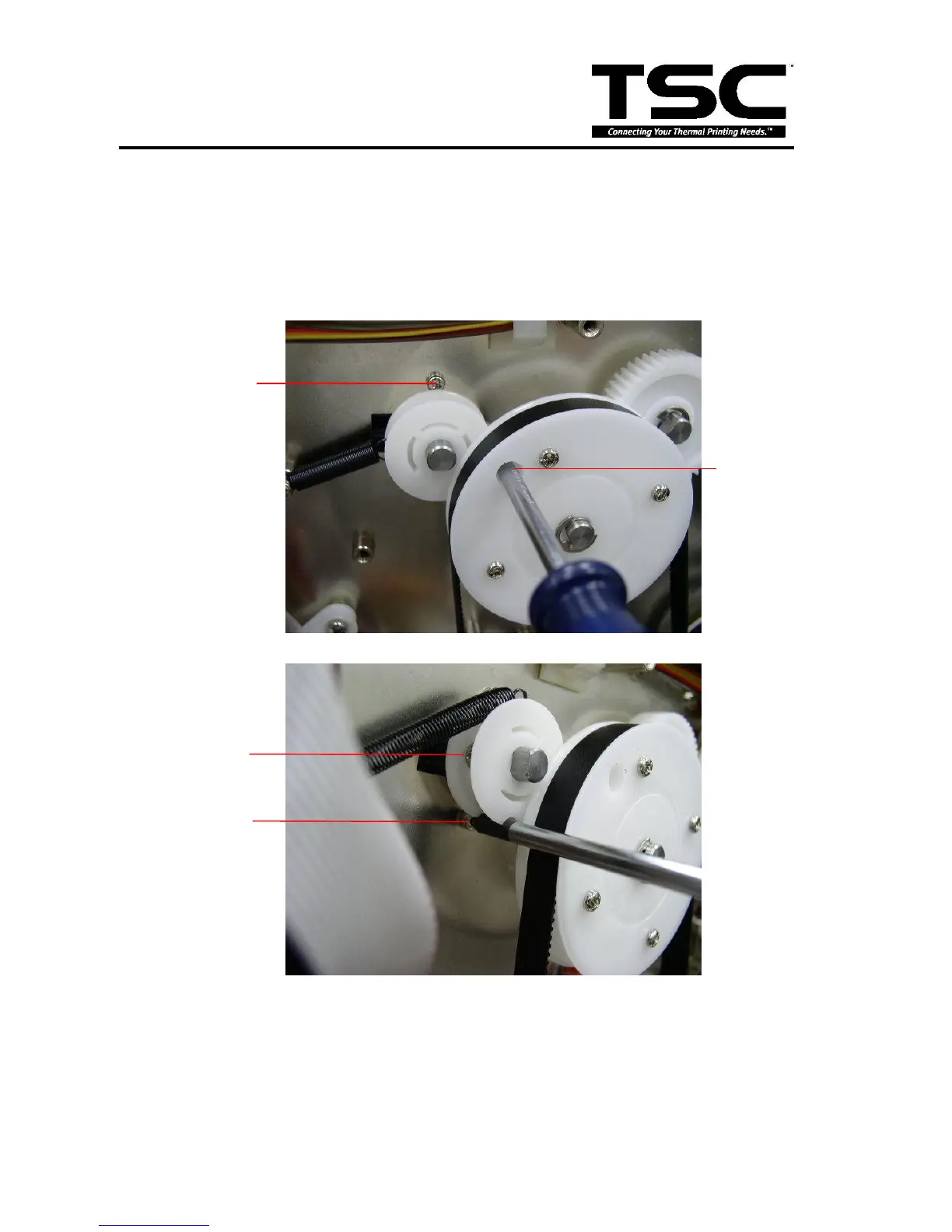

4.6 Replacing Ribbon Supply Spindle
1. Refer to section 4.1 to remove the left side cover.
2. Remove the screw through the hole of the pulley. Then, remove other 4 screws of
Ribbon supply spindle.
3. Remove Ribbon Spindle.
The hole of
the pulley
Screw
Screw
Screw
