TTP-246M/344M Bar Code Printer
Service Manual
4.14 Replacing Print Head Lift Sensor
1. Open the Top Left Side Cover.
2. Remove the Curly plastic pipe, and pull out the harness.
3. Disconnect all harness of Print Head Lift Lever Sensor. Remove the 2 screws of
Print Head Lift Lever Sensor.
4. Remove Print Head Lift Lever Sensor.
5. Reassemble in the reverse procedures after replacing.

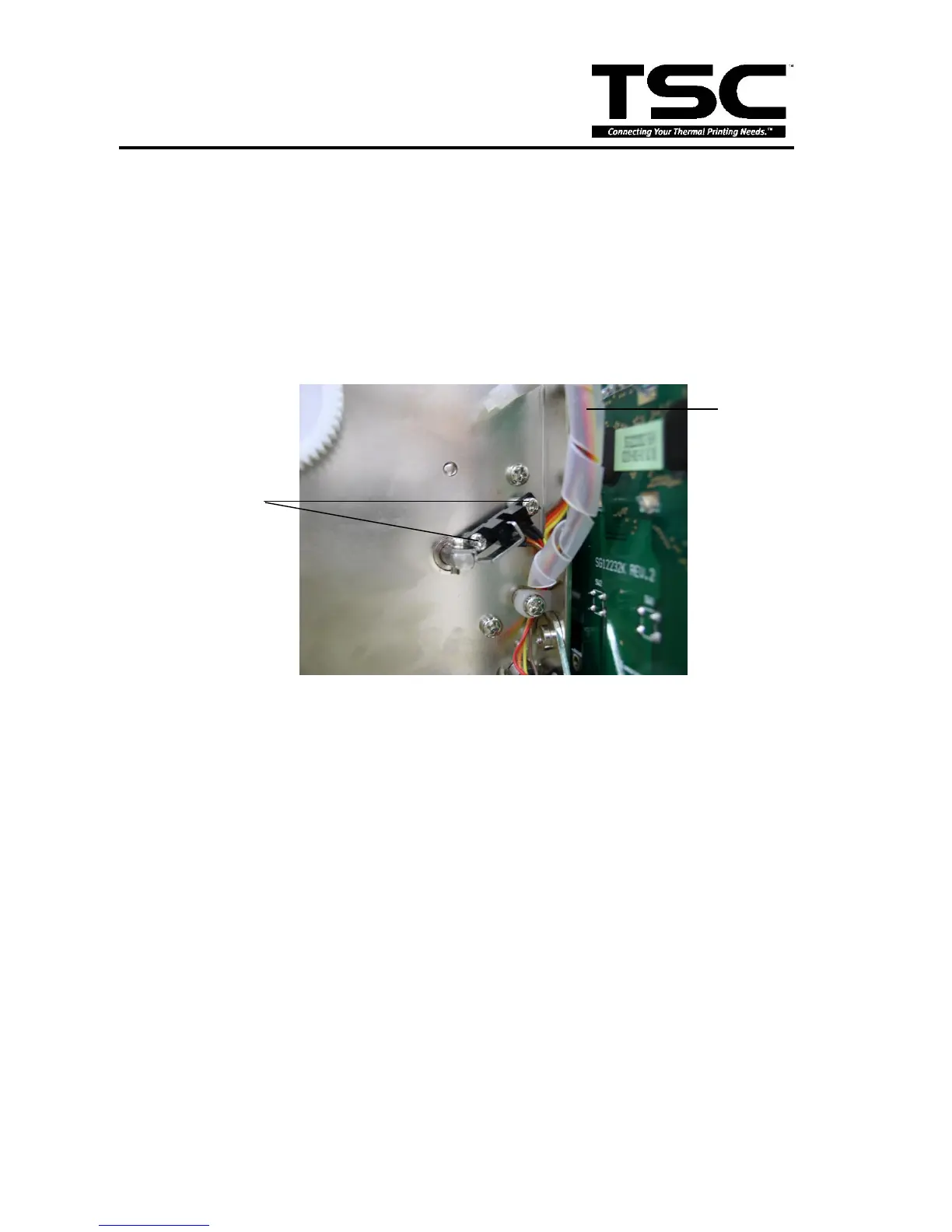

Curly plastic pipe
Screws
