TTP-246M/344M Bar Code Printer
Service Manual

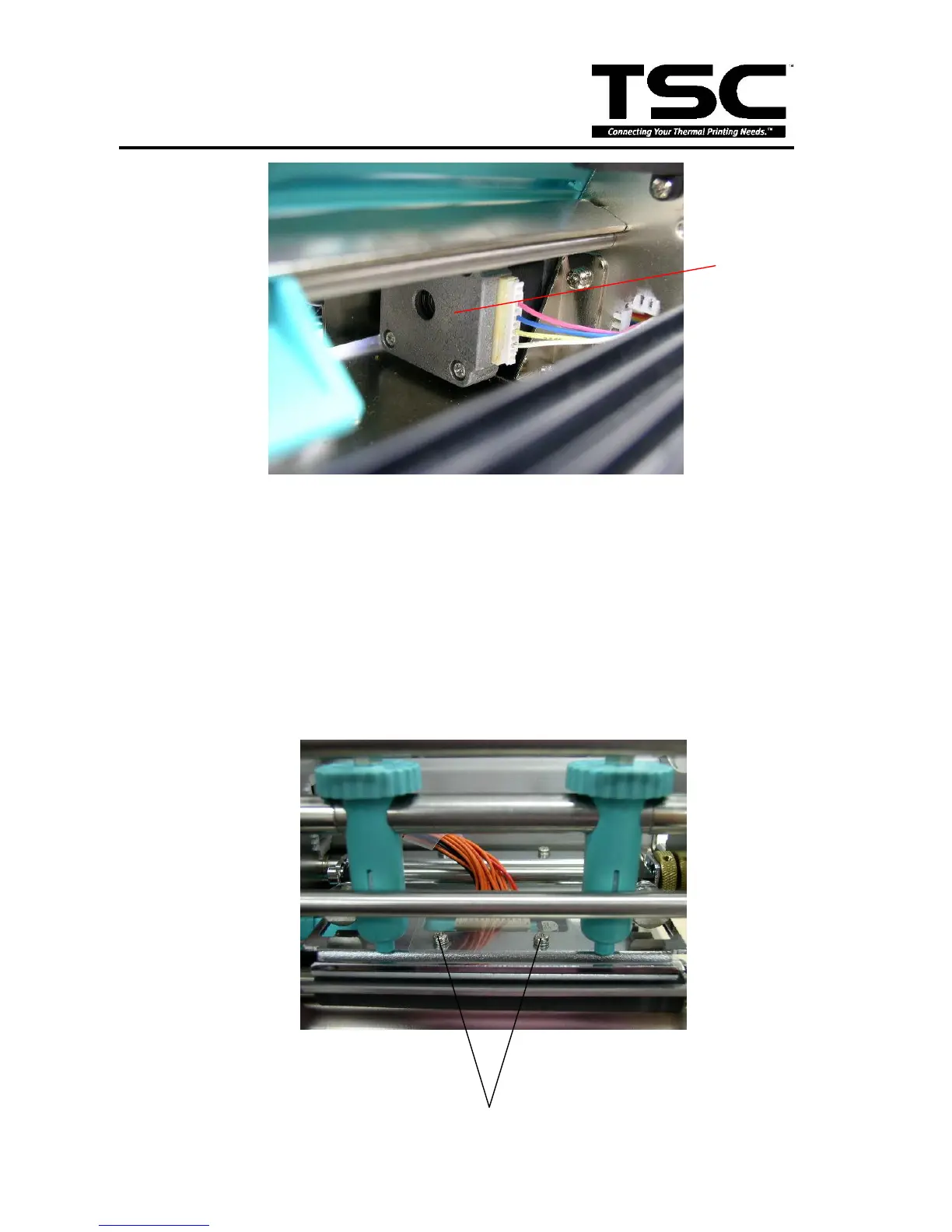

5. Use 1.5mm hex wrench to remove the2 screws on the stepping motor pulley and 2
screws on the stopping.
6. Reassemble in the reverse procedures after replacing.
4.10 Replacing Print Head
1. Must turn off power while replacing print head, otherwise the damage of print head
may occur.
2. Disconnect print head harness
3. Loosen two screws on the Print Head and Print Head Bracket.
Screws
Stepping motor
