TTP-246M/344M Bar Code Printer
Service Manual
4.13 Replacing Ribbon Sensor

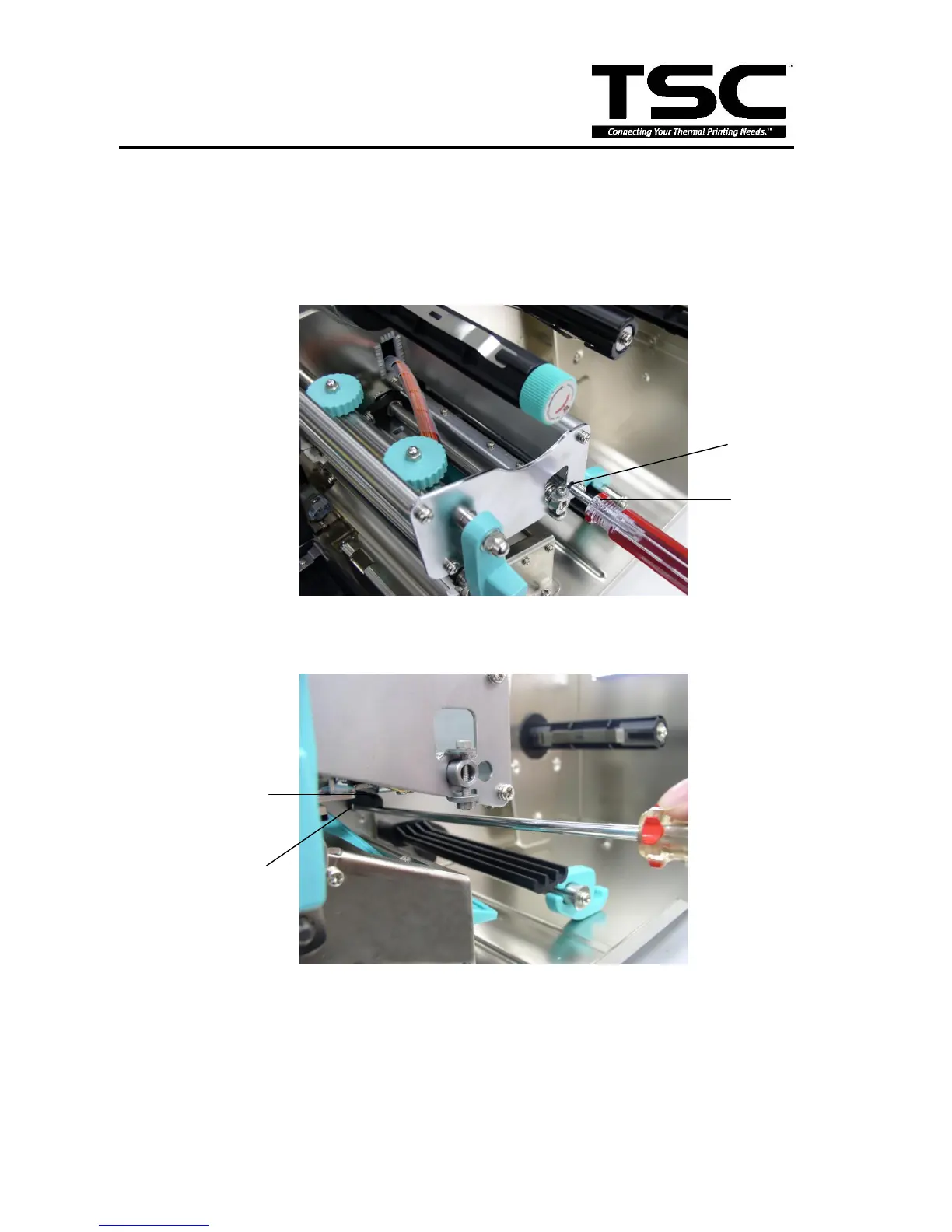

1. Use the screwdriver through the hole horizontally to remove the upper screw of
Ribbon Sensor.
2. Remove the lower screw of Ribbon sensor.
Screwdriver
Hole
Ribbon
Sensor
Lower screw of
Ribbon sensor
