TSI Instruments Aerotrak 9303 Service Manual

2-20 AeroTrak
®
Handheld and Remote Airborne Particle Counters

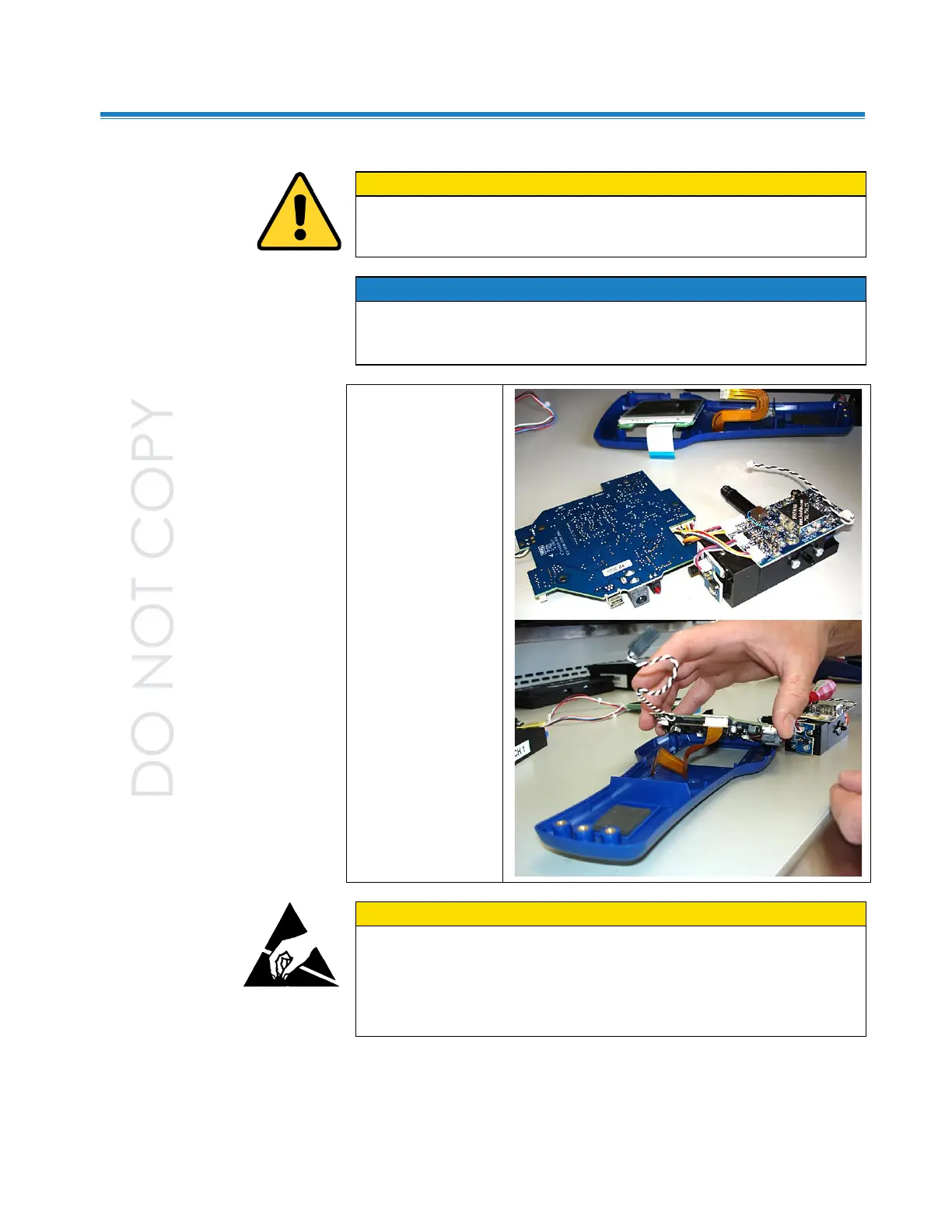

La s e r Rep l a c ement
C A U T I O N
Laser replacement needs to be done in an ESD controlled environment
with a minimum of one ESD table mat and a wrist strap connected to
the installer.
NOTICE
Before replacing the laser, check the revision on the detector PCA
(6001939). If the detector PCA is revision E or older, order a
replacement which is revision F or newer.
1. Follow the
disassembly
instructions to
remove the
optics block
from the
chassis.
2. Reconnect the
main board to
the optics block
along with the
keypad to the
main board.
This will allow
you to power up
the laser for
setup. Do not
apply power to
the unit at
this time.
C A U T I O N
The electronic circuits within this instrument are susceptible to
electro-static discharge (ESD) damage. Use ESD precautions to
avoid damage.
• Use only a table top with a grounded conducting surface.
• Wear a grounded, static-discharging wrist strap.

TSI Instruments Aerotrak 9303 Specifications

General

Size Range .	0.3 to 25 µm
Channel Sizes .	0.3 µm and 5.0 µm fixed; 0.5, 1.0, 2.0, or 2.5 µm selectable middle channel.
Counting Efficiency .	50% at 0.3 µm; 100% for particles > 0.45 µm (per ISO 21501-4 and JIS)
Concentration Limits .	2, 000, 000 particles/ft3 at 5% coincidence loss
Zero Count Level .	<1 count / 5 minutes (per ISO 21501-4 and JIS B9921)
Flow Rate .	0.1 CFM (2.83 L/min)
Calibration .	NIST traceable with TSI® calibration system
Sampling Modes .	Manual and automatic
Sampling Time .	1 second to 99 minutes 59 seconds
Sampling Frequency .	1 to 999 cycles or continuous
Light Source .	Long life laser diode
Sample Probe/Tubing .	Isokinetic sampling probe
Exhaust .	Internal HEPA filter
Vacuum Source .	Internal pump
External Surface .	High impact injection molded plastic
Communication Mode .	USB serial output
Data Storage .	1, 500 sample records
Status Indicators .	Low battery and service
Display .	3.2-in. (8.1 cm) 160 x 160 monochrome LCD
AC Power . (power to AC adapter)	110 to 240 VAC 50-60 Hz Universal in-line power supply with country specific plugs
DC Power . (power to instrument)	9 VDC @ 1.5 A
Battery .	Rechargeable Li-Ion
Battery Life .	Up to 4.5 hours of continuous use
Recharge Time .	< 3 hours

Weight and Dimensions

Dimensions (L x W x H)	9.1 x 6.3 x 2.4 in. (23 x 11 x 6.2 cm) (without isokinetic inlet)
Weight .	1.3 lbs (0.58 kg) with battery
