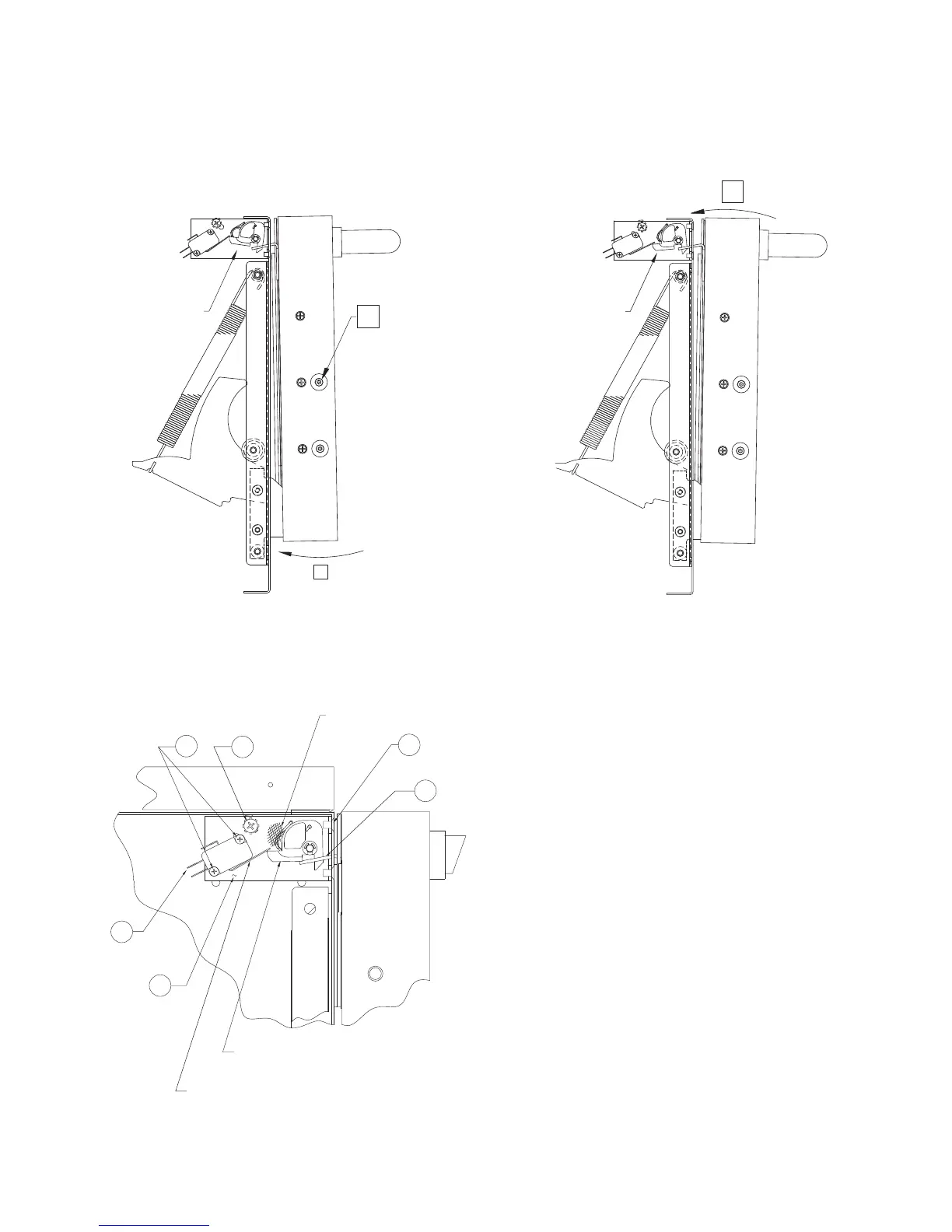

: Primary and Secondary Interlock Adjustment
and Parts
56
APPLY HI-TEMP GREASE
TO AREA
55
54
53
LATCH TOGGLE TO BE LEVEL
OR NEARLY LEVEL
SWITCH GAP = 0.02
57
58
: Mis-adjusted Cook Door
2
LATCH TOGGLE IS ANGLED
COUNTER-CLOCKWISE
: Mis-adjusted Cook Door
PRIMARY AND SECONDARY INTERLOCK SWITCHES
ADJUSTMENTS AND PARTS
Figure 26
53. NGC-1076 Actuator, Door
54.
102684
Screw, #8-32 x 1/2” 100˚ CSK
55. 102921 Screw, #8-32 x 3/8”
56. 101557 Screw, #4-40 x 1 1/4”
57. 102012 Interlock Switches
58. NGC-1075 Assy, Door Switch*
*See Figure 27 for Assy Detail.
THE COOK DOOR
35
