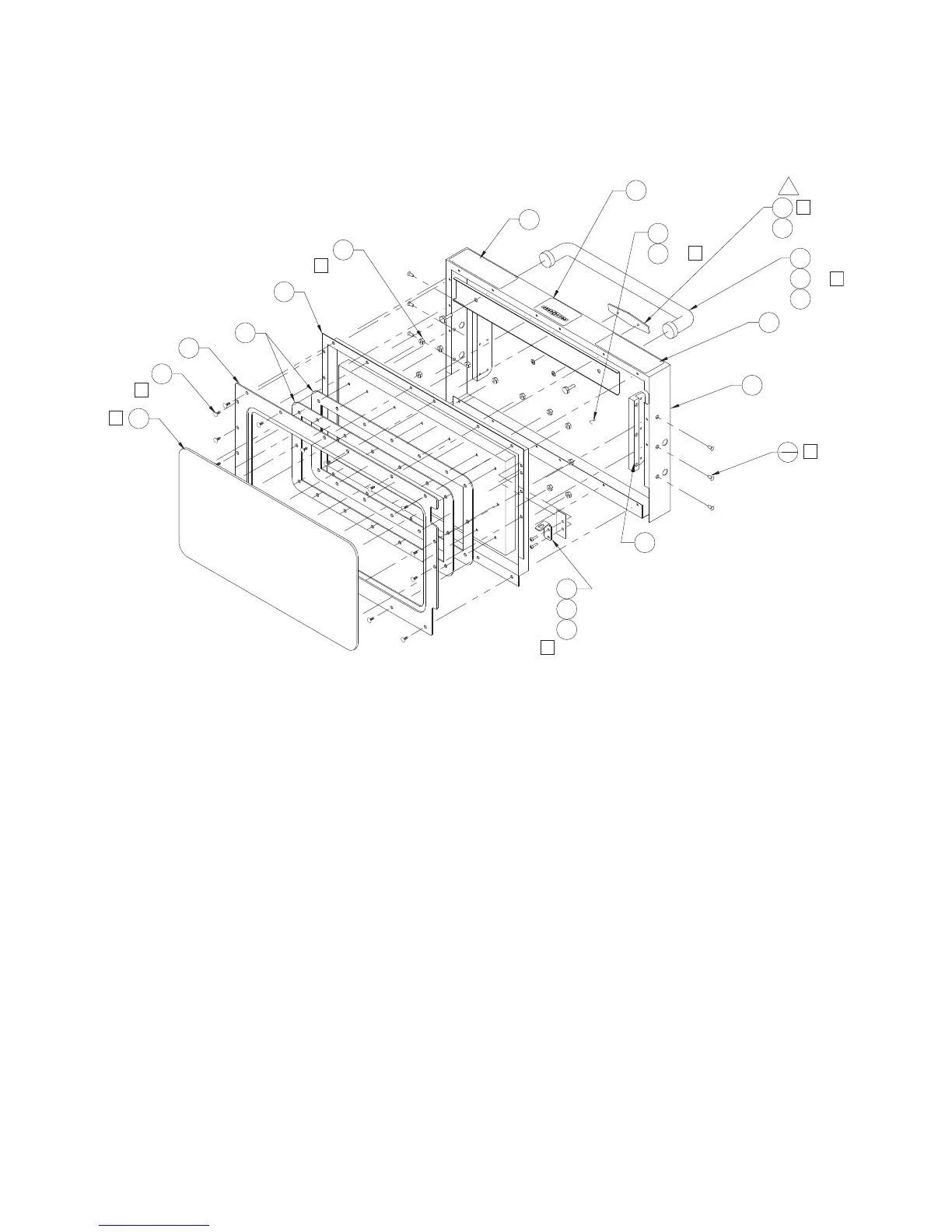

COOK DOOR ASSEMBLY
See Figure 29 above. For mis-adjustments, see
F
igur
es 24 and 25 on page 35.
COOK DOOR PARTS
F
igur
e 29 and 30
76. NGC-1151 Assy, Shunt Plate
77. NGC-1056 Cover, Door, NGC
78. NGC-1057 Spacer, Shunt Door
79. NGC-1059 Shunt Cavity, Open Door
80. NGC-1061 Hinge Block
81. NGC-1062
S
pacer
, P
lastic E
dge
82. 102750 Handle, Door
83. NGC-1076-002
A
ctuator
, Door
84. NGC-1132 Shim, Door Latch
85. 102945 Bolt, 1/4”-20 x 1.00
86. NGC-1138 Label, Precaution
87. 102809 #8-32 x 3/8” CSK 100˚
88. NGC-1165 Label, Caution Empty
89.
NGC-1125
Kit D
oor I
nsulation
90. NGC-1127 Channel, Door Handle
91. 102962 Nut, Keps #8-32
92.
102748 Screw, #8-32 x 3/8”,
Trox Security
93. 101688 Screw, #8 x 1/2” PTH
94. 102698 Tape, Aluminum
95.
NGC-1155
N
ame P
late,
T
urboChef
96. NGC-1170 Label, Service
