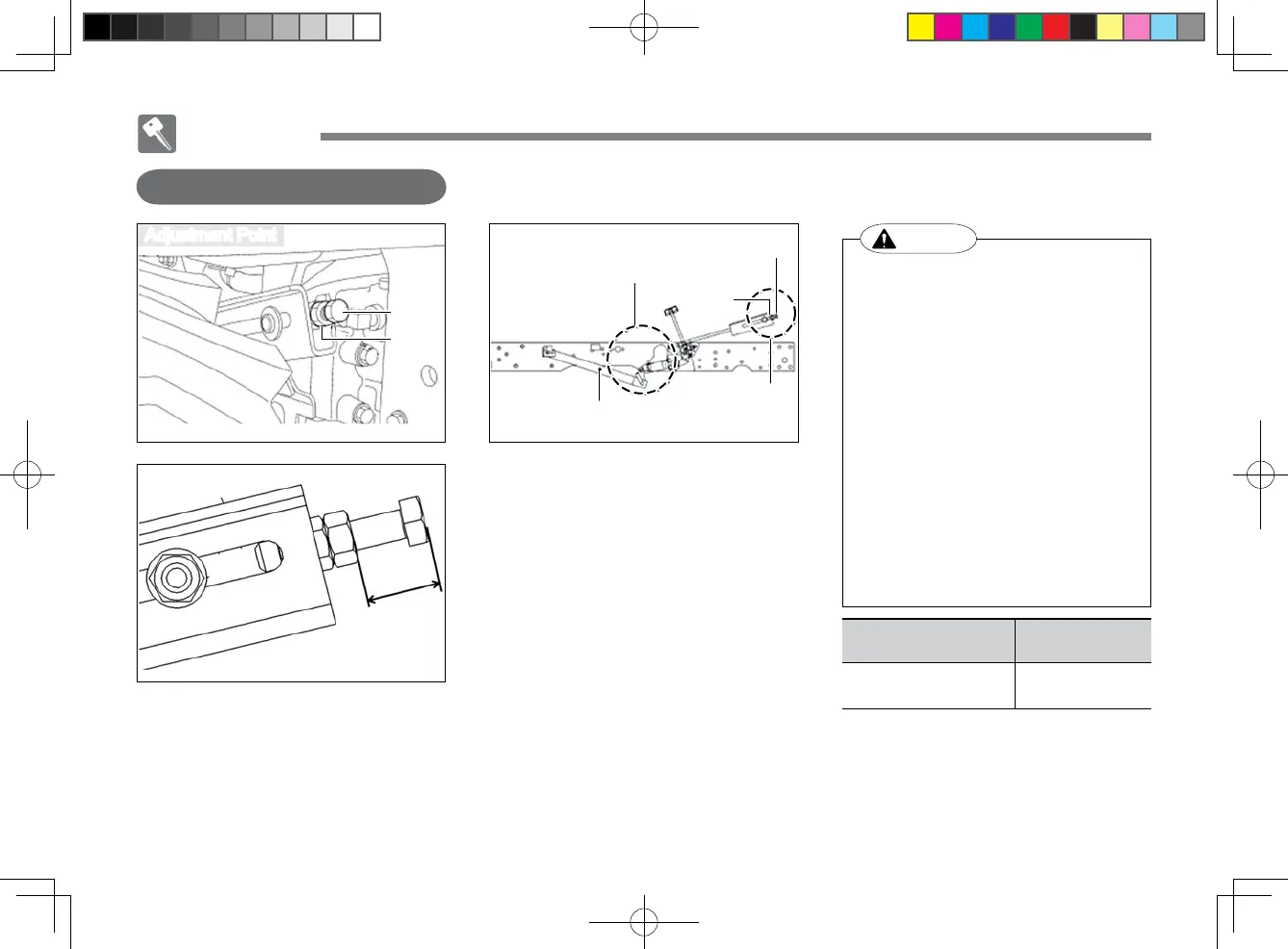

16. MOWER ADJUSTMENT
Park the Ride on Mower on a
firm, flat and level surface and
set the parking brake.
Stop the engine, remove the
key, and allow the blades to
stop before making adjust-
ments.
Wear heavy gloves or wrap end
of blade with a rag when you
handle blades.
Before starting the engine, set
the PTO clutch lever to off posi-
tion and range gear shift lever
to the neutral position.
•
•
•
•
CAUTION
TK0314A
Adjustment Point
Bolt
Lock
Nut
TK0315A
29mm ± 3mm
TK0316A
Adjustment
Point
Check Point
Bolt
Lock
Nut
Link
ADJUSTING MOWER LINK
1. Tire pressure must be correct.
2. Move the hydraulic control lever
rearward to raise the mower to
the highest position.
3. Stop the engine and remove the
key.
4. Tighten the bolt and nut clear-
ance 29mm - Assembly Lift link
►
Bolt to Lock nut
clearance
Factory spec.
29mm ± 3mm
0 to 0.5 mm
(0 to 0.01 in.)
※
Set the mower height by adjust-
ing the bolt (initial setting posi-
tion)
※
Bolt to Lock nut clearance
: 29mm ± 3mm
To Next Page
