LEA-6 / NEO-6 / MAX-6 - Hardware Integration Manual
UBX-14054794 Production Information Design-in
Page 36 of 85
2.4 MAX-6 design
MAX-6 modules provide the following signals:
 ANTON Signal (to turn on and off external LNA). To save power consumption in Power Save mode. See
section 2.6.9.
 TX ready Signal (to trigger a host, e.g. a u-blox LEON wireless module, when data at DDC interface is ready
to be picked up). To save power consumption on Host side.
2.4.1 MAX-6 passive antenna design
This is a minimal setup for a PVT GPS receiver with a MAX-6 module.
Vcc
Micro
Processor
(serial)
Passive
Antenna
Backup
Battery
2
3
4
5
6
8
10
12
17
15
13
Reserved
TIMEPULSE
EXTINT0
TxD1
VCC_IO
V_RESET
VCC_RF
GND
GND
RF_IN
GND
VCC
V_BCKP
RxD1
ANTON
SCL2
SDA2
Reserved
14
16
11
9
7
1
18
MAX-6

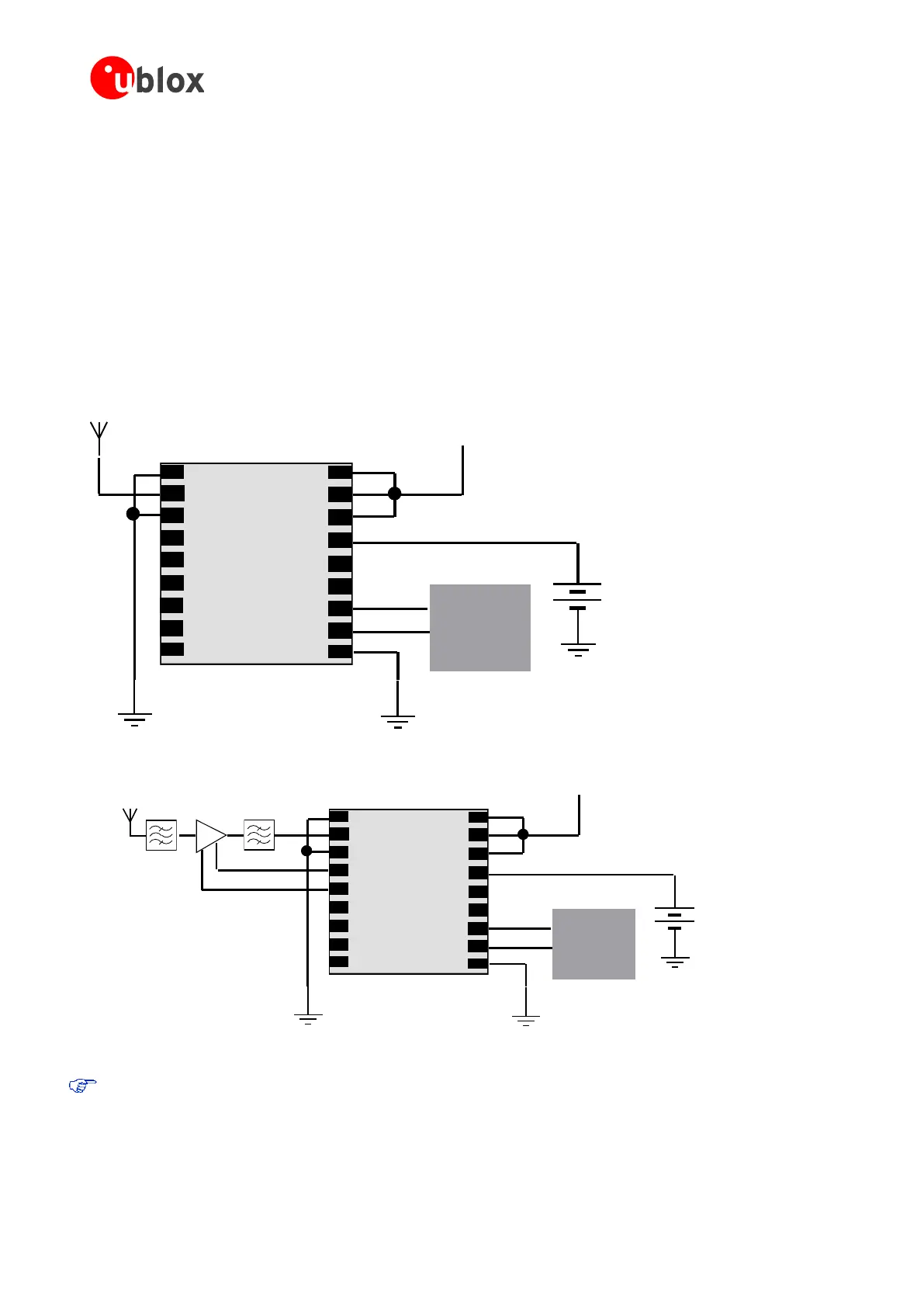

Figure 27: MAX-6 passive antenna design
Passive Antenna
LNA SAW
Vcc
Micro
Processor
(serial)
Backup
Battery
2
3
4
5
6
8
10
12
17
15
13
Reserved
TIMEPULSE
EXTINT0
TxD1
VCC_IO
V_RESET
VCC_RF
GND
GND
RF_IN
GND
VCC
V_BCKP
RxD1
ANTON
SCL2
SDA2
Reserved
14
16
11
9
7
1
18
MAX-6
SAW
Vcc
on
Figure 28: MAX-6 passive antenna design for best performance and increased immunity to jammers such as GSM
For information on increasing immunity to jammers such as GSM, see section 3.3.8.
