FN1 Substitution Values
The wedge and USB HID keyboard hosts support a FN1 Substitution feature.
Enabling this substitutes any FN1 character (0x1b) in an EAN128 bar code with a
value. This value defaults to 7013 (Enter key).
When using host commands to set the FN1 substitution value, set the key category
parameter to 1, and then set the 3-digit keystroke value. See the ASCII character
set table for the current host interface for the desired value.

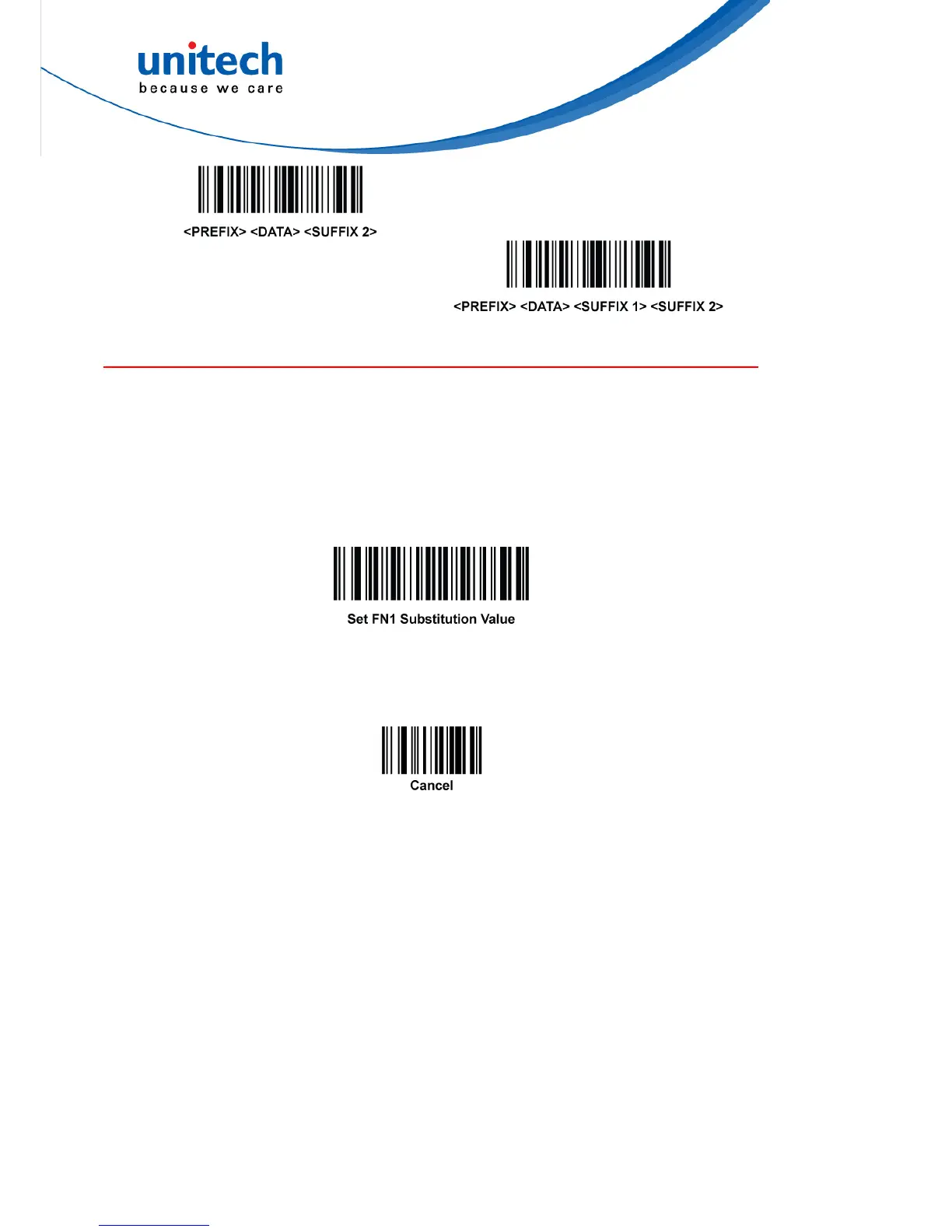

To select a FN1 substitution value via bar code menus:
1. Scan the bar code below.
2. Locate the keystroke desired for FN1 substitution in the ASCII character set
table in the appropriate host interface chapter. Enter the 4-digit ASCII value by
scanning each digit.
To correct an error or change the selection, scan Cancel.

Unitech MS842P Specifications

General

Type	Handheld bar code reader
Sensor type	CMOS
Scanner type	1D/2D
Tilt reading angle	-60 - 60 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), JAN, MSI, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
USB version	2.0
Wireless range	10 m
Operating frequency	2400 MHz
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Certification	CE, FCC, BSMI, VCCI
Product color	Black, Grey, Yellow
Housing material	-
International Protection (IP) code	IP54
Battery life	10 h
Charging time	4 h
Input voltage	5 V
Battery capacity	1620 mAh
Power consumption	400 mA
Power source type	DC
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	74 mm
Width	89 mm
Height	176 mm
Weight	200 g
Base dimensions	73 x 95 x 200 mm
