Unitech MS842P User Manual

68
Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

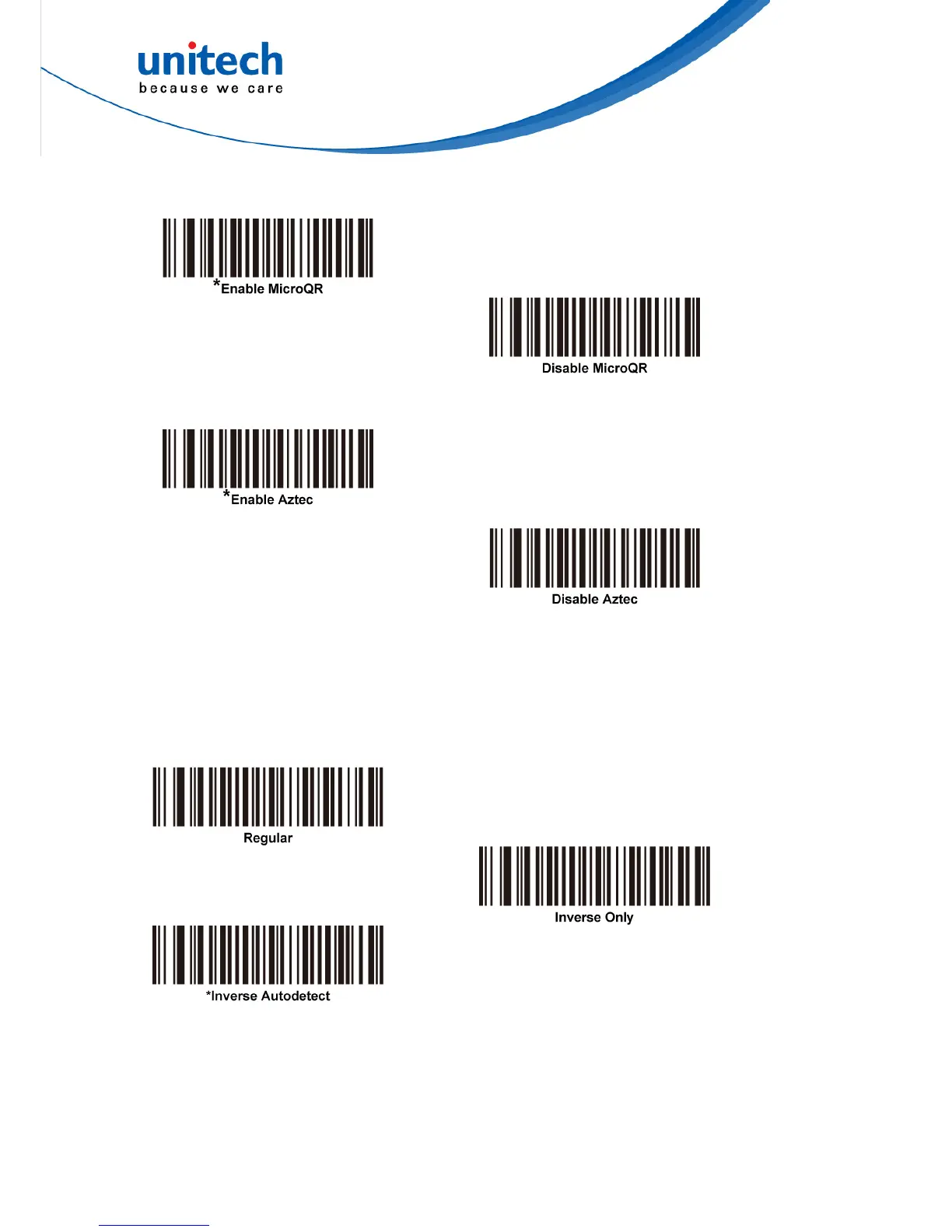

MicroQR
To enable or disable MicroQR, scan the appropriate bar code below.
Aztec
To enable or disable Aztec, scan the appropriate bar code below.
Aztec Inverse
This parameter sets the Aztec inverse decoder setting. Options are:
 Regular Only - the decoder decodes regular Aztec bar codes only.
 Inverse Only - the decoder decodes inverse Aztec bar codes only.
 Inverse Autodetect - the decoder decodes both regular and inverse Aztec bar
codes.
Redundancy Level
The decoder offers four levels of decode redundancy. Select higher redundancy
levels for decreasing levels of bar code quality. As redundancy levels increase, the
decoder’s aggressiveness decreases.
Select the redundancy level appropriate for the bar code quality.

Unitech MS842P Specifications

General

Type	Handheld bar code reader
Sensor type	CMOS
Scanner type	1D/2D
Tilt reading angle	-60 - 60 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), JAN, MSI, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
USB version	2.0
Wireless range	10 m
Operating frequency	2400 MHz
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Certification	CE, FCC, BSMI, VCCI
Product color	Black, Grey, Yellow
Housing material	-
International Protection (IP) code	IP54
Battery life	10 h
Charging time	4 h
Input voltage	5 V
Battery capacity	1620 mAh
Power consumption	400 mA
Power source type	DC
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	74 mm
Width	89 mm
Height	176 mm
Weight	200 g
Base dimensions	73 x 95 x 200 mm
