Unitech PA500 User Guide

Chapter 3 Getting Connected30
After you have installed ActiveSync and restarted your computer, the
ActiveSync icon will appear on your computer’s system tray (on the
lower right-hand corner of the screen) and the ActiveSync wizard
appears.
For detailed information on how to use ActiveSync on your computer,
start ActiveSync; then click Help > Microsoft ActiveSync Help.
Connecting the Device to Your Computer

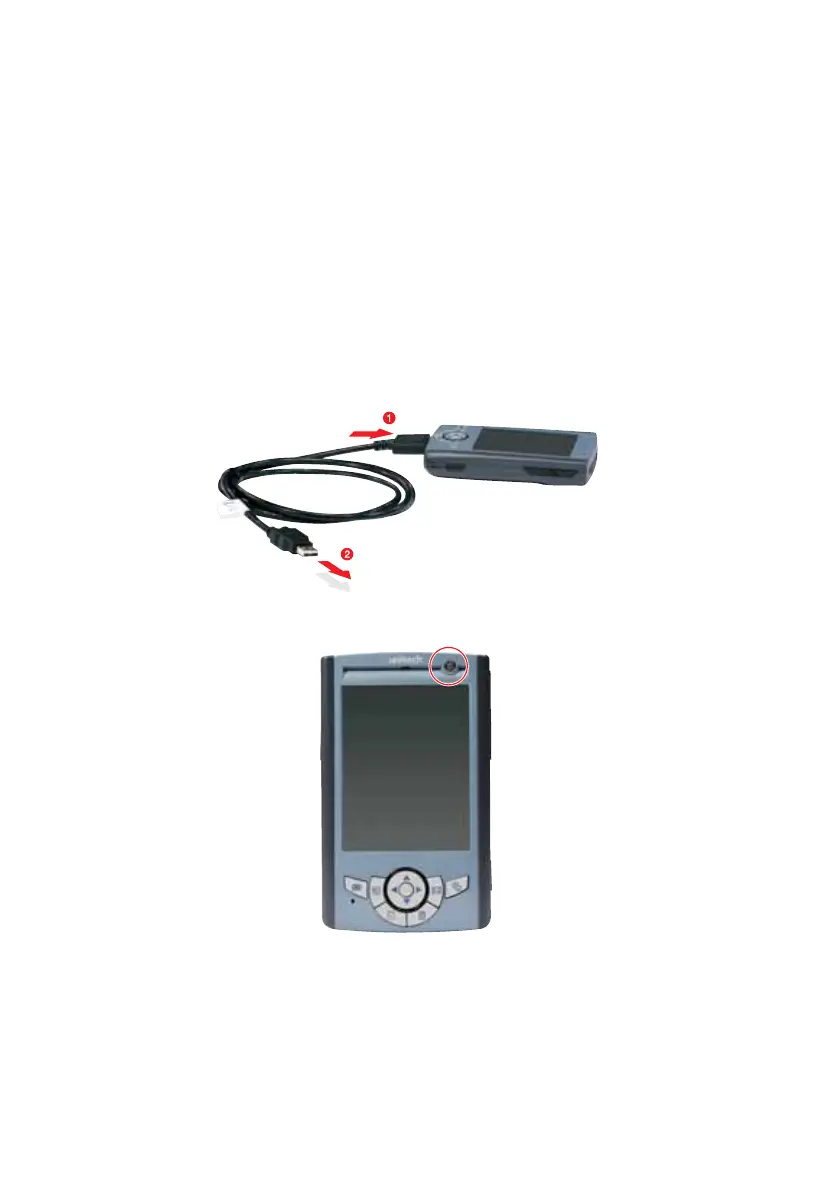

1 After ActiveSync has been installed, connect the USB charging cable
to your device. If necessary, connect an adapter.
2 Plug the other end of the USB charging cable into a USB port on your
computer.
3 Turn the device on.
4 After ActiveSync should start automatically and recognize your PA500
and configure the USB port. The New Partnership setup wizard will
automatically start.

Unitech PA500 Specifications

System Memory

SDRAM	64 MB
Flash ROM	64 MB

Display

display resolution	240x320 QVGA
display type	Color Transflective TFT
touch screen	yes

Laser Bar Code Scanner

scan rate	104 scans/sec ± 12 scans/sec
scan angle default	47°±3°
scan angle reduced	35°±3°

Power

main battery voltage	3.7 V
main battery capacity	2200 mAh
rechargeable time	3.5 hours

Operating Environment

operating temperature	32°F to 122°F (0°C to 50°C)
storage temperature	-4°F to 140°F (-20°C to 60°C)
relative humidity	5% ~ 95% (non-condensing)

Weight and Dimensions

weight with battery and scan engine	Under 213 g
length	126 mm
height	23 mm
